3.4.11 Removing the speaker net

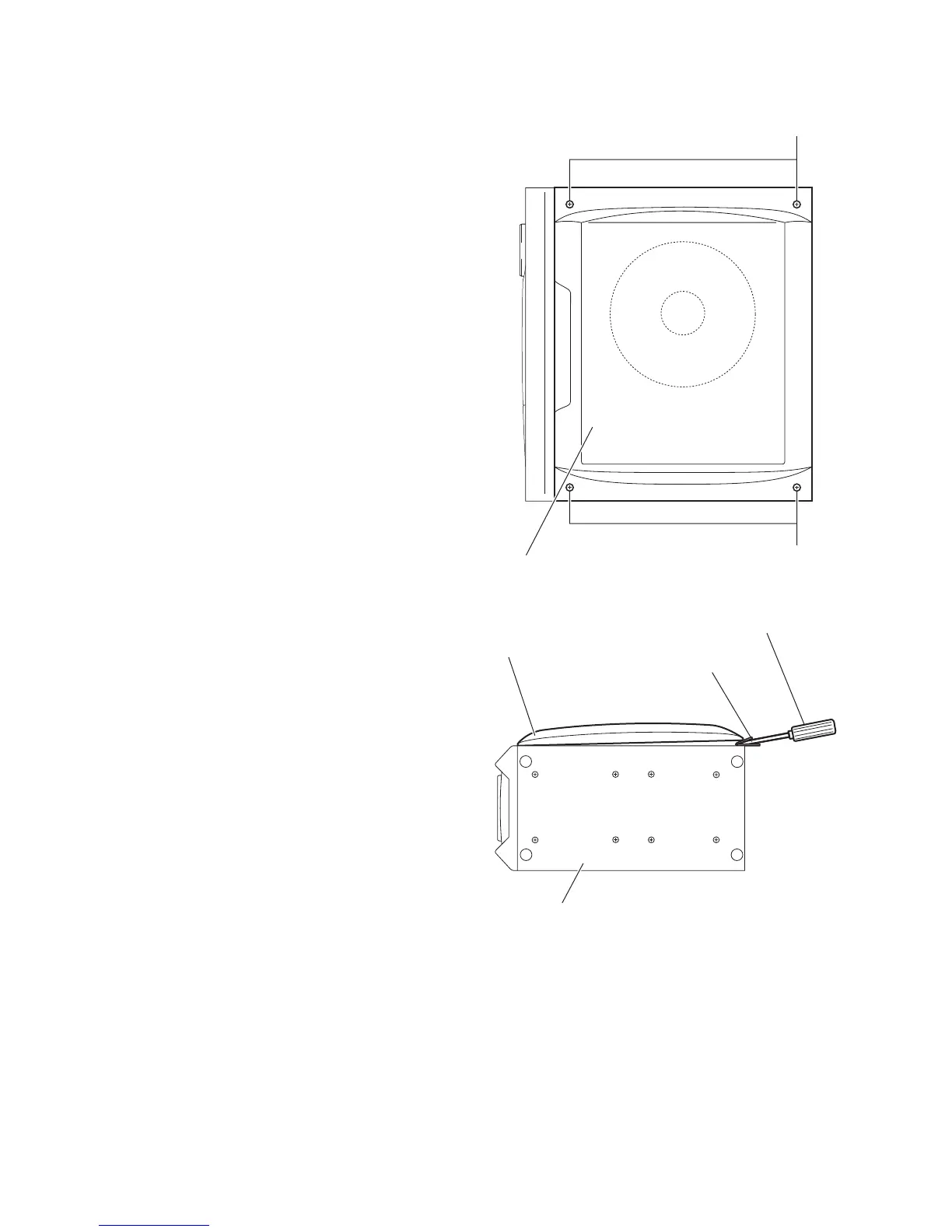

(See Figs.15 and 16)
(1) From right side of the speaker main body, remove the four
screws T attaching the speaker net. (See Fig.15)
(2) From bottom side of the speaker main body, insert the tip
of the flat-bladed screwdriver or similar tool into the space
between the speaker main body and speaker net, and lift
the speaker net little by little to remove. (See Fig.16)
Note:
To prevent damaging the speaker net and speaker main
body, insert cushioning plates etc. and below the tip of
the flat-bladed screwdriver or similar tool.
(3) Take out the speaker net from the speaker main body.
Fig.15
Fig.16
Speaker net
T
T
Speaker net
Flat-bladed
screwdriver,etc.
Chshioning
blate,etc.
Speaker main body
