3.4.12 Removing the speaker
(See Figs.17 and 18)
• Prior to performing the following procedures, remove the
speaker net.
(1) From right side of the speaker main body, remove the eight
screws U attaching the speaker. (See Fig.17)
(2) Take out the speaker from the speaker main body. (See
Fig.18)
(3) Disconnect the wires from the terminal of the speaker. (See
Fig.18)

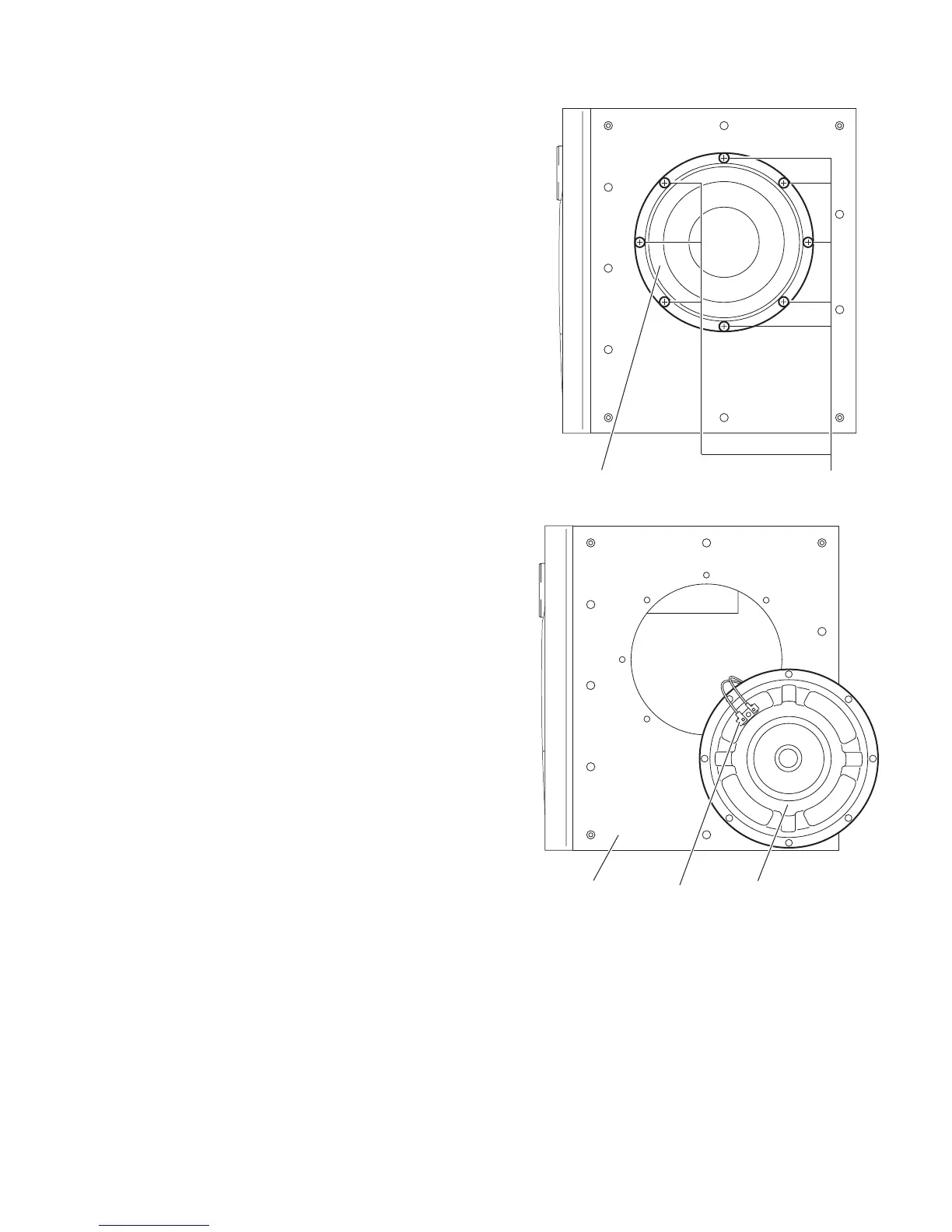

Fig.17
Fig.18
Speaker
U
Terminal SpeakerSpeaker main body
