1-22 (No.MB294)
3.3.12 Removing the side (R) assembly
(See Fig.22 to 26)
• Prior to performing the following procedures, remove the tray
assemblies and DVD servo board.
• When removing the DVD servo board, it is not necessary to re-
move the DVD servo board from the bracket.
(1) From the inside of the side (R) assembly, release the two
tabs t of the gear cover and remove the gear cover out-
ward. (See Figs.22 and 23)
(2) From the right side of the DVD changer mechanism as-
sembly, remove the elevator spring attached to the hook u
of the chassis assembly. (See Figs.23 and 24)
(3) From the topside of the DVD changer mechanism assem-
bly, turn the gear 1 clockwise to move the elevator cam
rearward. (See Fig.24)
(4) Move the two slots v and joint w of the elevator cam and
remove the elevator cam outward. (See Fig.24)
(5) Remove the three screws T and detach the side (R) as-
sembly upward. (See Figs.25 and 26)
Caution:
When reattaching the side (R) assembly, make sure to fit the
shaft section x into the slot of the select lever. (See Fig.25)

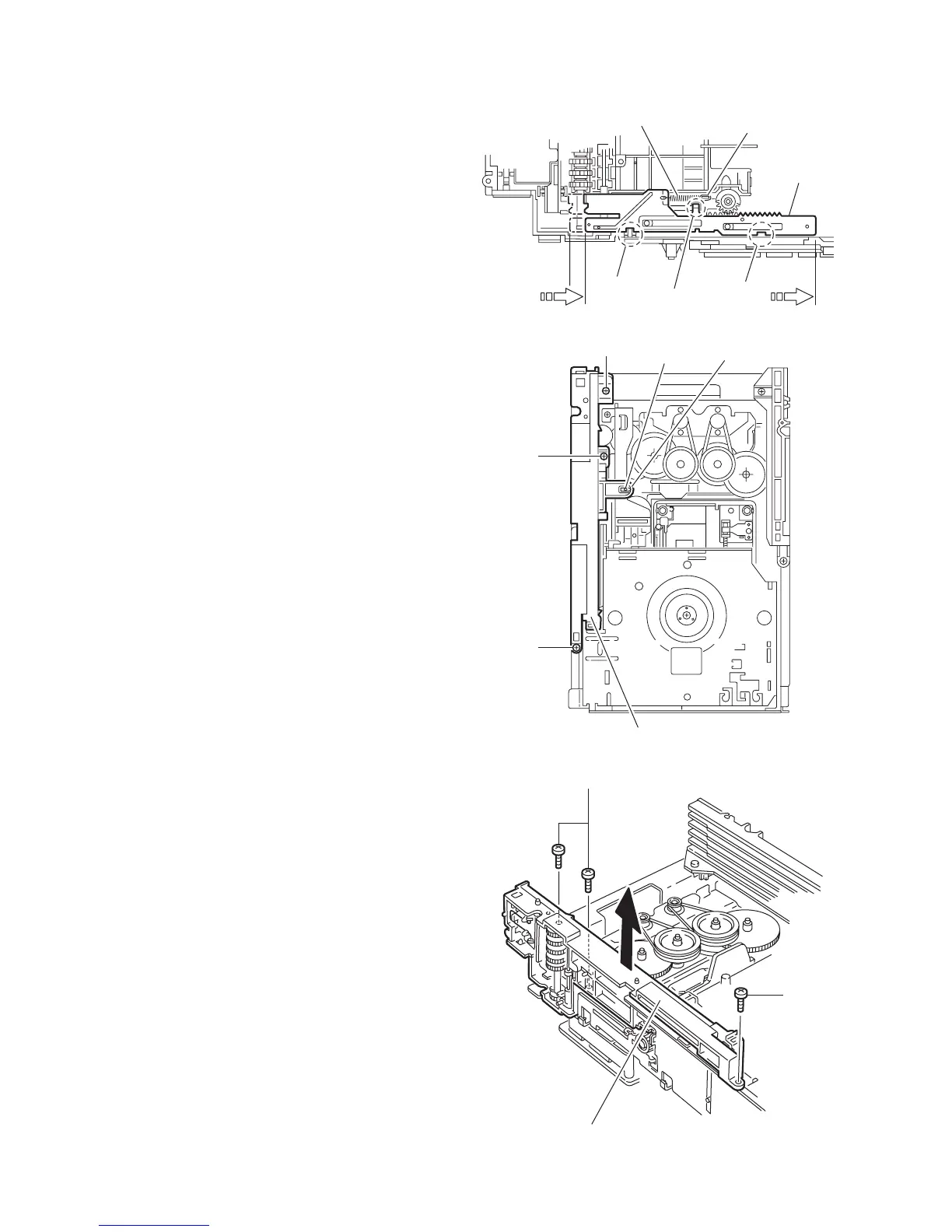

Fig.24
Fig.25
Fig.26
Elevator cam
Elevator spring
Hook u
Slot v
Slot v
Joint w
T
Side (R) assembly
T
T
Section x
Select leve
Side (R) assembly
T
T
