JVC SP-THM508F Service Manual

3-8

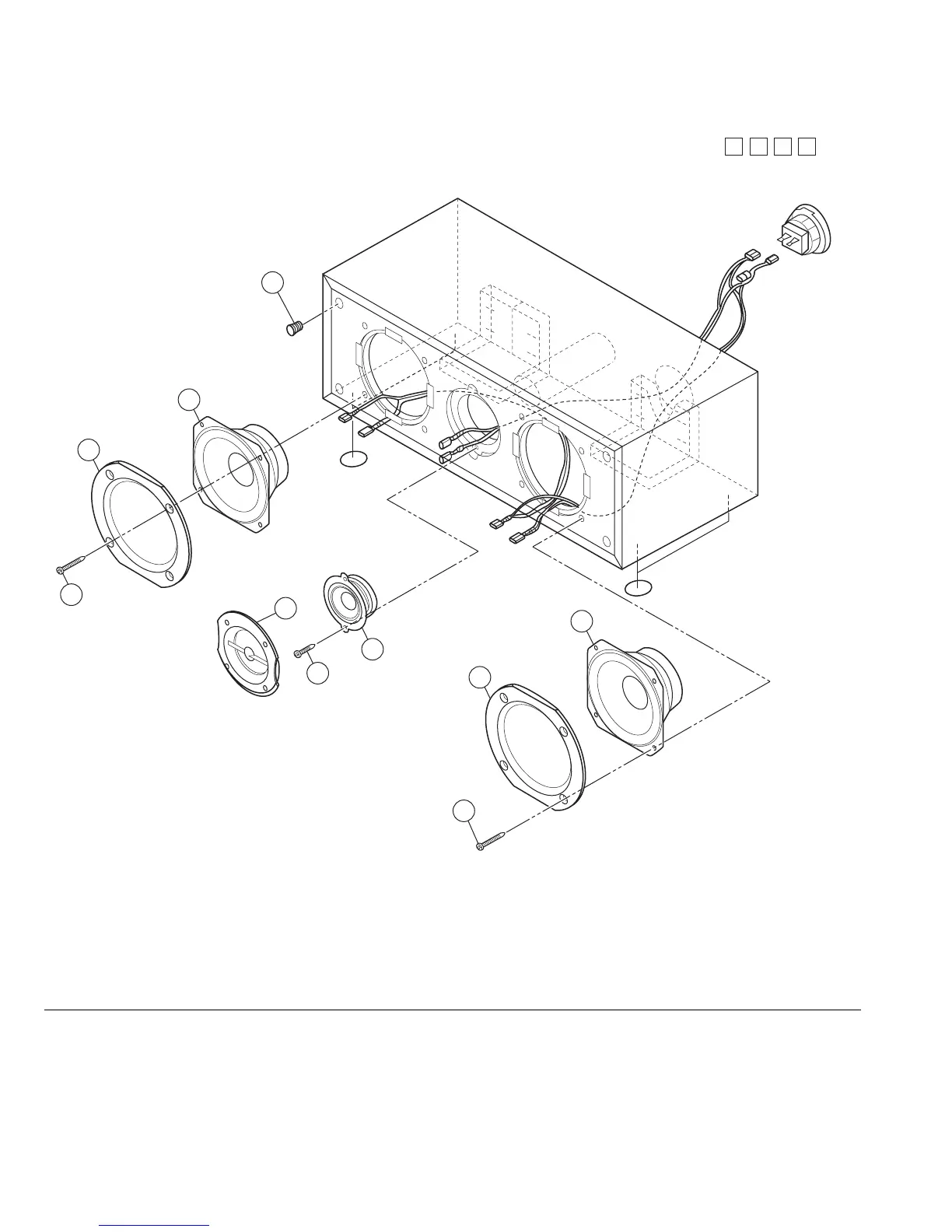

Speaker assembly and parts list
Speaker (Center speaker)
Block No. [M][6][M][M]
 Symbol No. Part No. Part Name Description Local
1 TF040013-02 SPEAKER(TW)
2 7001591206 SCREW (x2)
3 5700071001 TW RING
4 CR077019-01 SPEAKER(WF) (x2)
5 5700066901 WF RING (x2)
6 7008142006 SCREW (x8)
7 5600008011 HOLDER (x4)
M
M
M
6
The parts without symbol number are not service.
(Center speaker)
6
5
4
7
2
1
3
6
5
4
Block No.
