1-10 (No.MB236)
3.1.3 Removing the front panel assembly
(See Figs.4 and 5)
• Prior to performing the following procedures, remove the top
cover assembly or metal cover.
(1) From the top side of the main body, disconnect the card
wires from the connectors (CN451
, CN452) on the main
board. (See Fig.4)
(2) Disconnect the card wire from the connector CN802
on the
SD card board. [For XV-THS9 and XV-THS7 models]
(See Fig.4.)
(3) Remove the screw C attaching the earth wires to the main
board. (See Fig.4)
Reference:
When attaching the screw C, attach the earth wires with
it. (See Fig.4)
(4) From the bottom side of the main body, remove the four
screws D attaching the front panel assembly. (See Fig.5)
(5) Remove the front panel assembly in the direction of the ar-
row while releasing the joint b. (See Fig.5)

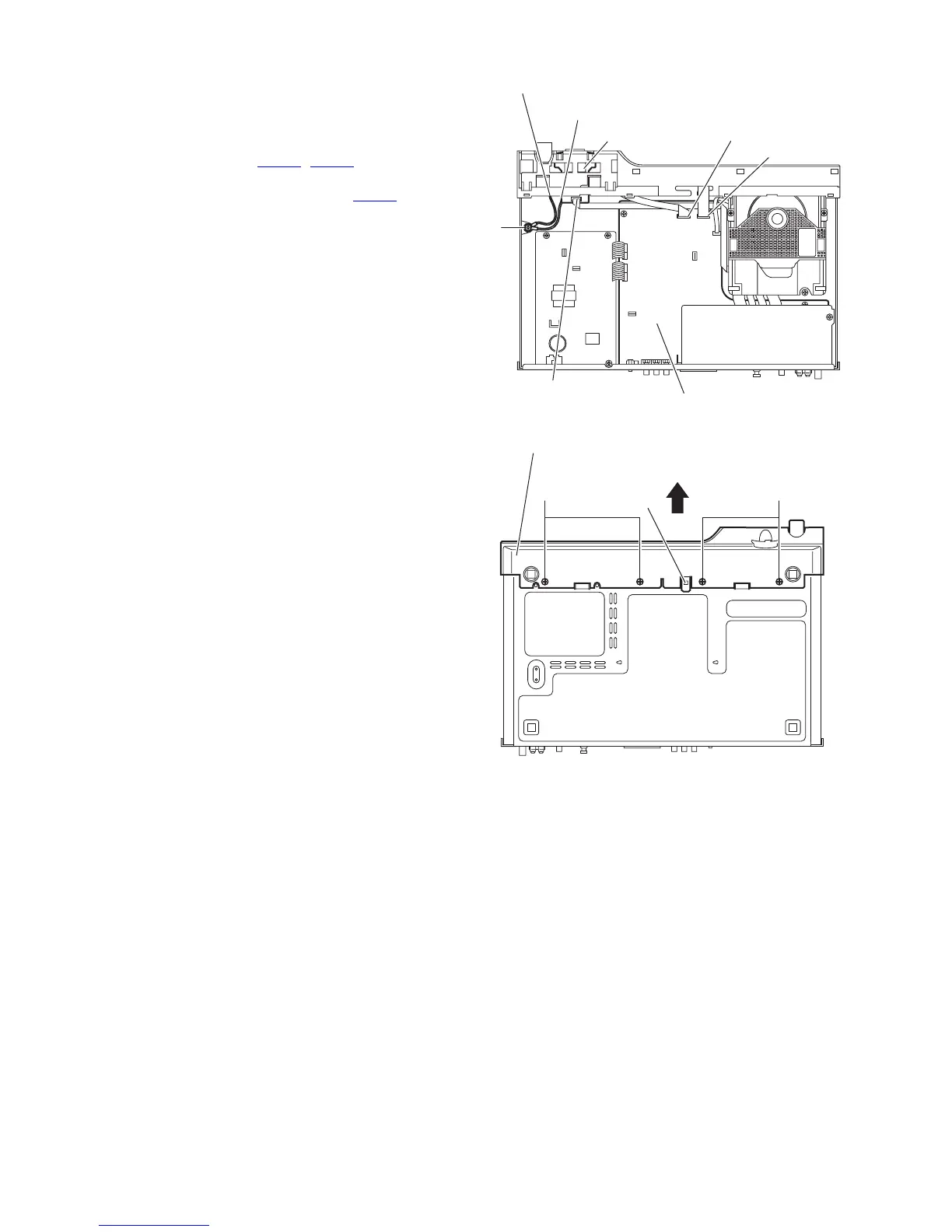

Fig.4
Fig.5
C
CN452
Earth wire [TH-S9,TH-S7]
Earth wire
CN451
CN802
Main board
SD board
D D
b
Front panel assembly
