JVC SR-VS30E

2-31
11.

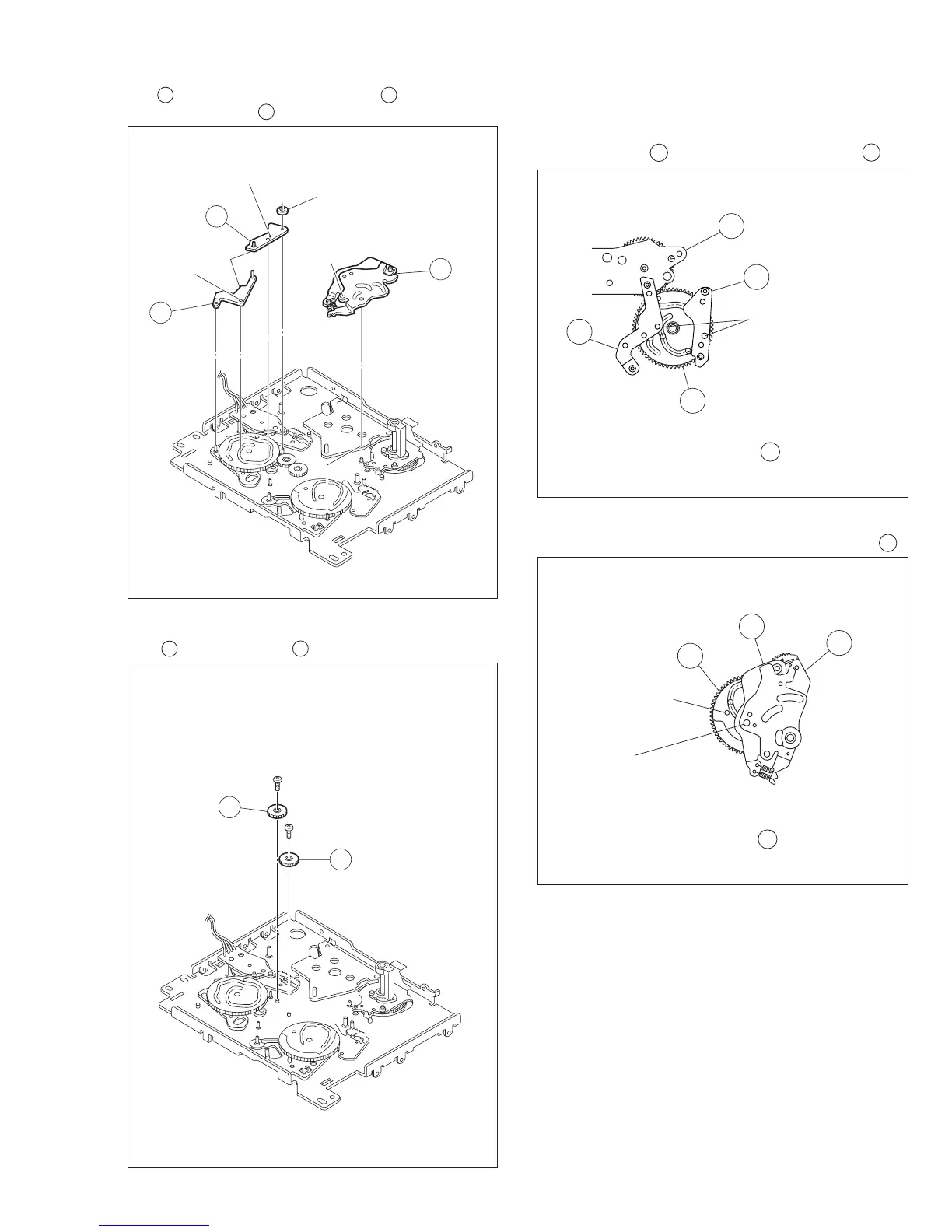

29 Tension control arm assembly/ 30 Brake control
arm assembly /
31 Charge arm assembly
Fig. 2-8-11
Fig. 2-8-12
<Note 11a>: How to attach the tension control arm assem-
bly 29 / Brake control arm assembly 30 .
12.
32 Connect gear 2 / 33 Connect gear 2
Fig. 2-8-11A
Align the phase of the main cam 35 , then attach it by
fitting the bosses into the cam slot.
<Note 11b>: How to attach the charge arm assembly 31 .
Fig. 2-8-11B
Align the phase of the sub cam 38 , then attach it by
fitting the boss into the cam slot.
(
L17
)
29
30
31
(
L16
)
(
L15
)
(
W1
)
<Note11a>
<Note11b>
34
30
29
35
Boss
(Phase alignment)
38
31
39
Boss
(Phase alignment)
Phase alignment
27
(
S2
)
33
28
(
S2
)
32
