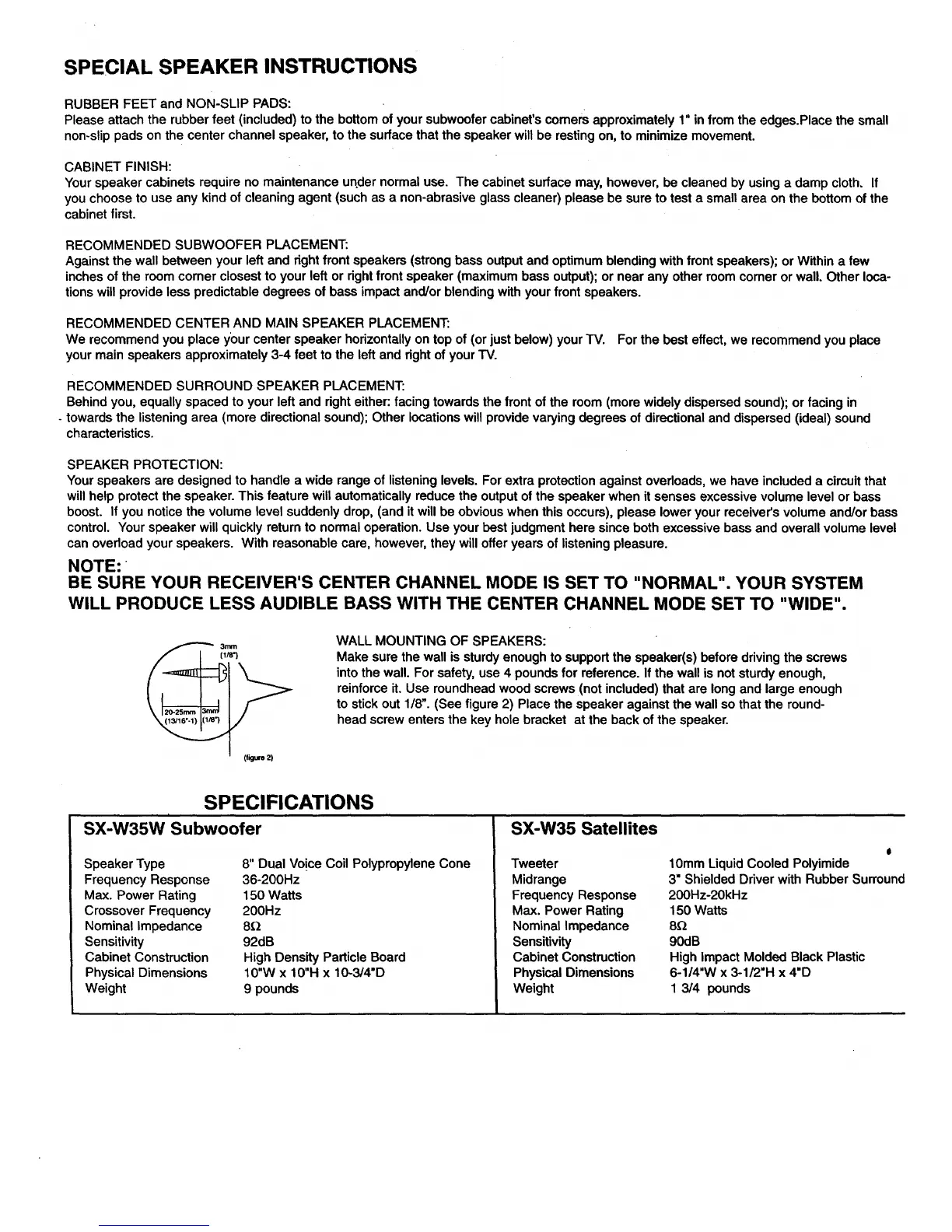

SPECIAL SPEAKER INSTRUCTIONS
RUBBER FEET and NON-SLIP PADS:
Please attach the rubber feet (included) to the bottom of your subwoofer cabinet's comers approximately 1" in from the edges.Place the small
non-slip pads on the center channel speaker, to the surface that the speaker will be resting on, to minimize movement.
CABINET FINISH:
Yourspeakercabinets require no maintenanceundernormaluse. The cabinetsurfacemay,however, be cleanedby usinga dampcloth. If
youchooseto use anykindof cleaningagent(suchas a non-abrasiveglasscleaner)pleasebe sureto testa smallarea onthe bottomof the
cabinetfirst.
RECOMMENDED SUBWOOFER PLACEMENT:
Against the wall between your left and right front speakers (strong bass output and optimum blending with front speakers); or Within a few
inches of the room comer closest to your left or right front speaker (maximum bass output); or near any other room corner or wall. Other loca-
tions will provide less predictable degrees of bass impact and/or blending with your front speakers.
RECOMMENDED CENTER AND MAIN SPEAKER PLACEMENT:
We recommend you place your center speaker horizontally on top of (or just below) your TV. For the best effect, we recommend you place
your main speakers approximately 3-4 feet to the left and right of your TV.
RECOMMENDED SURROUND SPEAKER PLACEMENT:
Behind you, equally spaced to your left and right either: facing towards the front of the room (more widely dispersed sound); or facing in
- towards the listening area (more directional sound); Other locations will provide varying degrees of directional and dispersed (ideal) sound
characteristics.
SPEAKERPROTECTION:
Yourspeakersare designedto handlea wide rangeoflisteninglevels.For extra protectionagainstoverloads,we have includeda circuitthat
willhelpprotectthespeaker.Thisfeature willautomaticallyreducethe outputofthespeakerwhen it sensesexcessivevolumelevelor bass
boost. Ifyou noticethevolumelevelsuddenlydrop,(and it willbe obviouswhenthisoccurs),please loweryourreceiver'svolumeand/orbass
control. Yourspeakerwillquicklyreturnto normaloperation.Use your bestjudgmentheresinceboth excessivebassand overallvolumelevel
canoverloadyourspeakers. With reasonablecare, however,theywillofferyearsoflisteningpleasure.
NOTE:
BE SURE YOUR RECEIVER'S CENTER CHANNEL MODE IS SET TO "NORMAL". YOUR SYSTEM
WILL PRODUCE LESS AUDIBLE BASS WITH THE CENTER CHANNEL MODE SET TO "WIDE".
WALL MOUNTING OF SPEAKERS:
Make sure the wall is sturdy enough to support the speaker(s) before driving the screws
into the wall. For safety, use 4 pounds for reference. If the wall is not sturdy enough,
reinforce it. Use roundhead wood screws (not included) that are long and large enough
to stick out 1/8". (See figure 2) Place the speaker against the wall so that the round-
head screw enters the key hole bracket at the back of the speaker.
SPECIFICATIONS
SX-W35W Subwoofer
Speaker Type
Frequency Response
Max. Power Rating
Crossover Frequency
Nominal Impedance
Sensitivity
Cabinet Construction
Physical Dimensions
Weight
8" Dual Voice Coil Polypropylene Cone
36-200Hz
150 Watts
200Hz
8Q
92riB
High Density Particle Board
10"W x 10"H x 10-3/4"D
9 pounds
SX-W35 Satellites
Tweeter
Midrange
Frequency Response
Max. Power Rating
Nominal Impedance
Sensitivity
Cabinet Construction
Physical Dimensions
Weight
g
10mm Liquid Cooled Polyimide
3" Shielded Driver with Rubber Surround
200Hz-20kHz
150 Watts
8_
90dB
High Impact Molded Black Plastic
6-1/4"W x 3-1/2"H x 4"D
1 3/4 pounds
