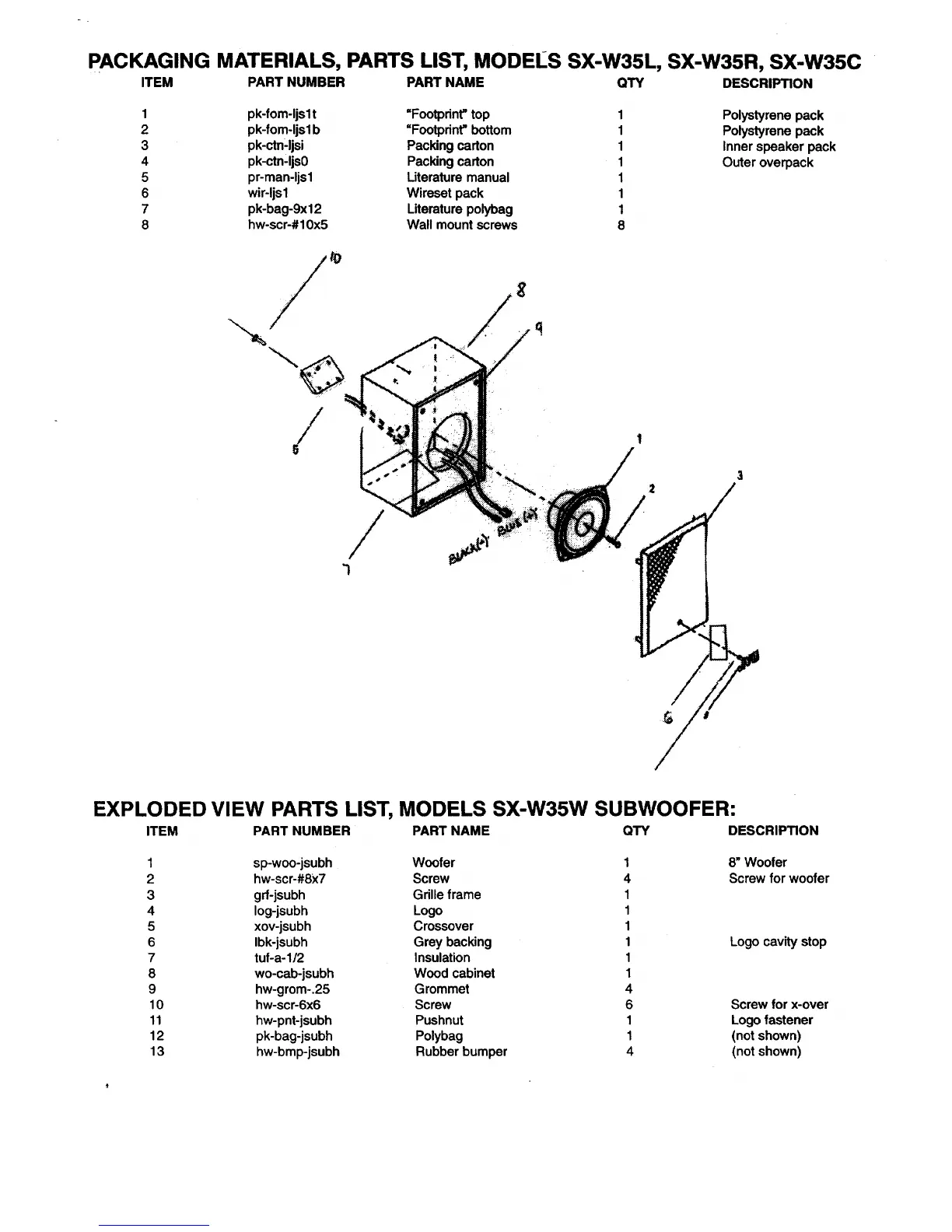

pACKAGING MATERIALS, PARTS LIST, MODELS SX-W35L, SX-W35R, SX-W35C
ITEM PART NUMBER PART NAME QTY DESCRIPTION
1
2
3
4
5
6
7
8
pk-fom-ljslt =Footprint" top
pk-fom-ljslb =Footprint" bottom
pk-ctn-ljsi Packing carton
pk-ctn'ljs0 Packing carton
pr-man-ljsl Literature manual
wir-ljsl Wireset pack
pk-bag-9x12 Literature polybag
hw-scr-#10x5 Wall mount screws
1
1
1
1
1
1
1
8
Polystyrene pack
Polystyrene pack
Inner speaker pack
Outer overpack
/
EXPLODED VIEW PARTS LIST, MODELS SX-W35W SUBWOOFER:
ITEM PART NUMBER PART NAME QTY DESCRIPTION
1 sp-woo-jsubh Woofer
2 hw-scr-#8x7 Screw
3 grf-jsubh Grille frame
4 Iog-jsubh Logo
5 xov-jsubh Crossover
6 Ibk-jsubh Grey backing
7 tuf-a-1/2 Insulation
8 wo-cab-jsubh Wood cabinet
9 hw-grom-.25 Grommet
10 hw-scr-6x6 Screw
11 hw-pnt-jsubh Pushnut
12 pk-bag-jsubh Polybag
13 hw-bmp-jsubh Rubber bumper
1
4
1
1
1
1
1
1
4
6
1
1
4
8" Woofer
Screw for woofer
Logocavitystop
Screw for x-over
Logo fastener
(not shown)
(not shown)
