8
7 AM loop antenna

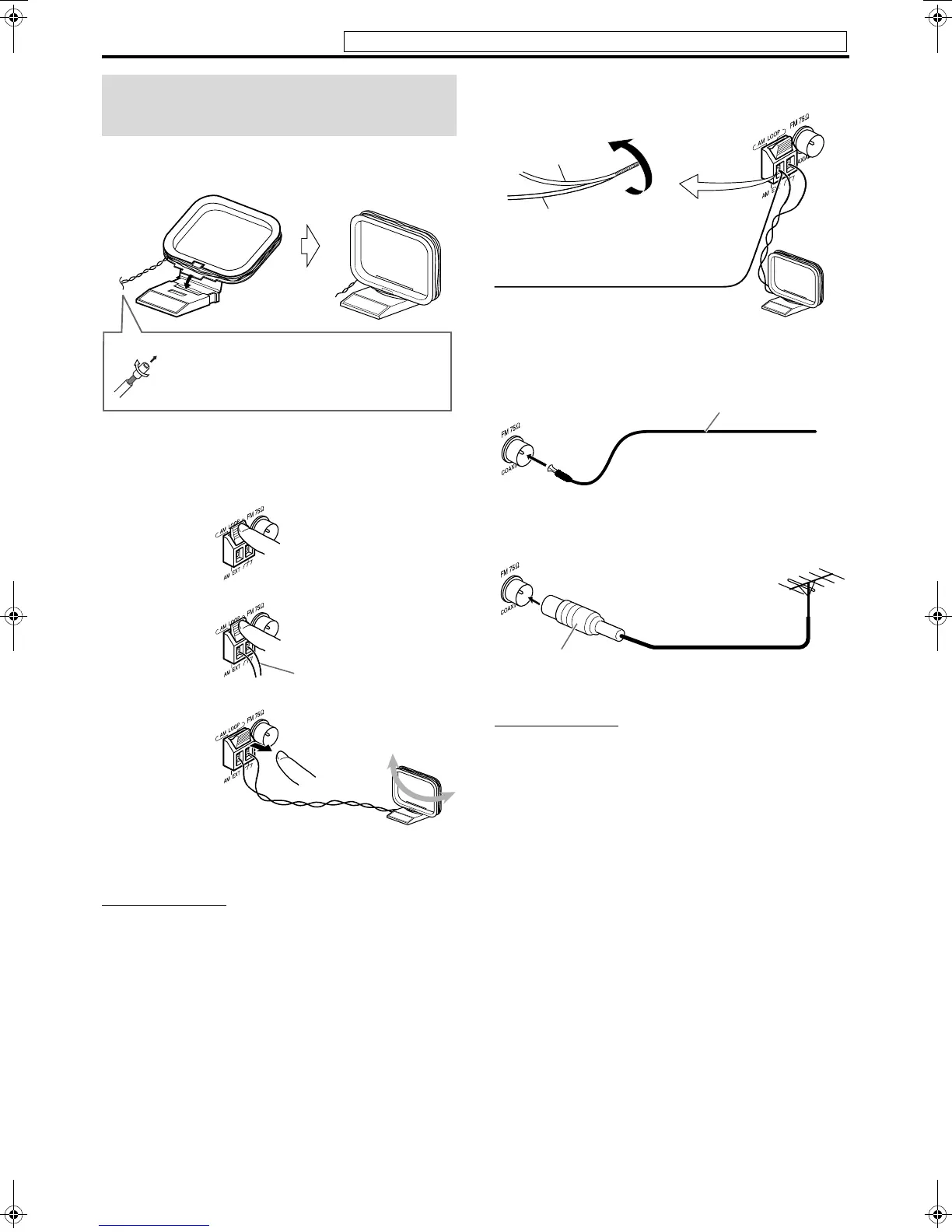

Setting up supplied AM loop antenna
Connecting AM loop antenna
• Turn the loop antenna until you have the best reception during
AM broadcast program reception.
NOTE
• Make sure the antenna conductors do not touch any other terminals,
connecting cords or power cords. This could cause poor reception.
If reception is poor
7 FM antenna
If reception is poor
NOTE
• We recommend that you use coaxial cable for the FM antenna as it is
well-shielded against interference.
Connecting the FM and AM
antennas
If the antenna cord is covered with the insulation
coat, twist and pull the insulation coat off and
remove.
1
Center unit
3
Antenna cord
Outdoor single vinyl-covered wire antenna
(not supplied)
AM loop antenna
Center unit
Extend the supplied FM antenna
horizontally.
Center unit
FM antenna (supplied)
Outdoor FM antenna (not
supplied)
Outdoor FM antenna cord (not
supplied)
Center unit
Standard type (75 Ω
coaxial) connector
Connections
Do not connect the power cord until all other connections have been made.
TH-C20-30[JC]5.book Page 8 Thursday, January 12, 2006 11:29 AM
To Next Page
