3.2.4 Removing the heat sink
(See Fig.8 and 9)
(1) Remove the three screws H attaching the heat sink from
bottom side of amplifier board. (See Fig.8)
(2) Remove the four screws J attaching the power IC. (See
Fig.9)

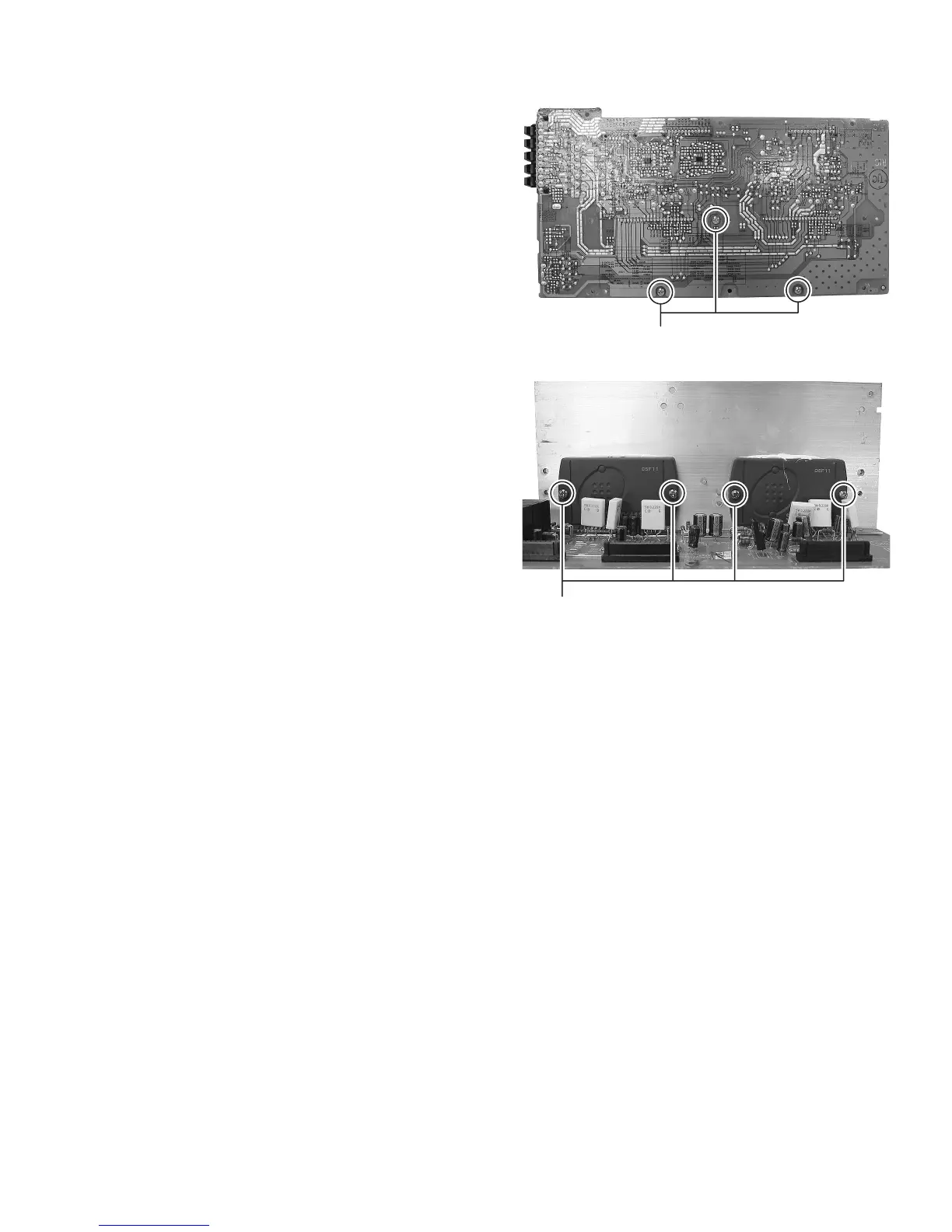

Fig.8
Fig.9
H
J
