3.2.2 Removing the mother board

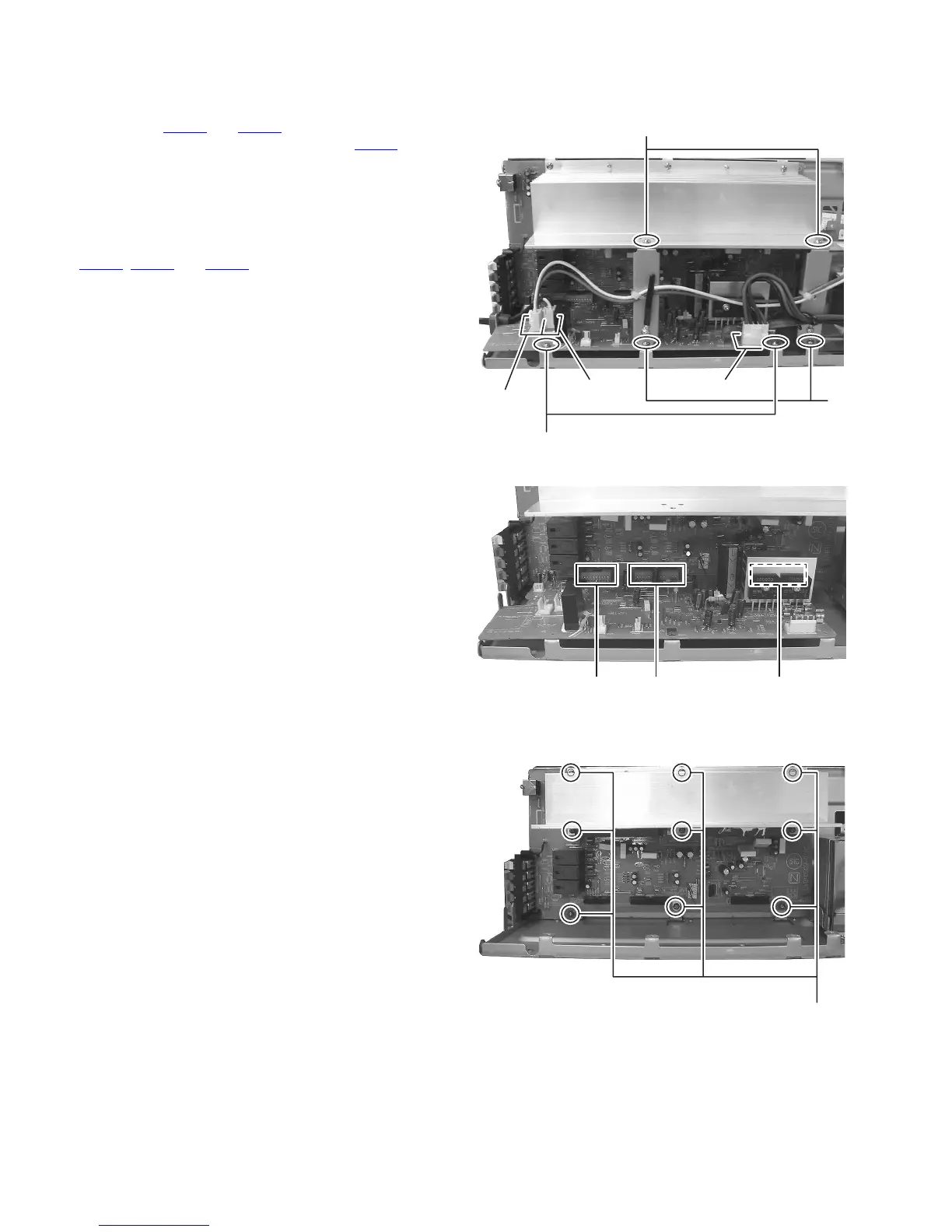

(See Fig.5 and 6)
(1) Disconnect the connector wire from power transformer
connected to CN102 and CN151. (See Fig.5)
(2) Disconnect the power cord connected to CN101. (See
Fig.5)
(3) Remove the four screws E attaching the heat sink bracket.
(See Fig.5)
(4) Remove the two screws F attaching the mother board.
(See Fig.5)
(5) Disconnect the connector connected to amplifier board
CN372
, CN501 and CN502. (See Fig.6)
Fig.5
Fig.6
3.2.3 Removing the amplifier board
(See Fig.7)
(1) Remove the nine screws G attaching the amplifier board.
Fig.7
CN101
CN102
CN151
E
E
F
CN372 CN501 CN502
G
