(No.MB506)1-13

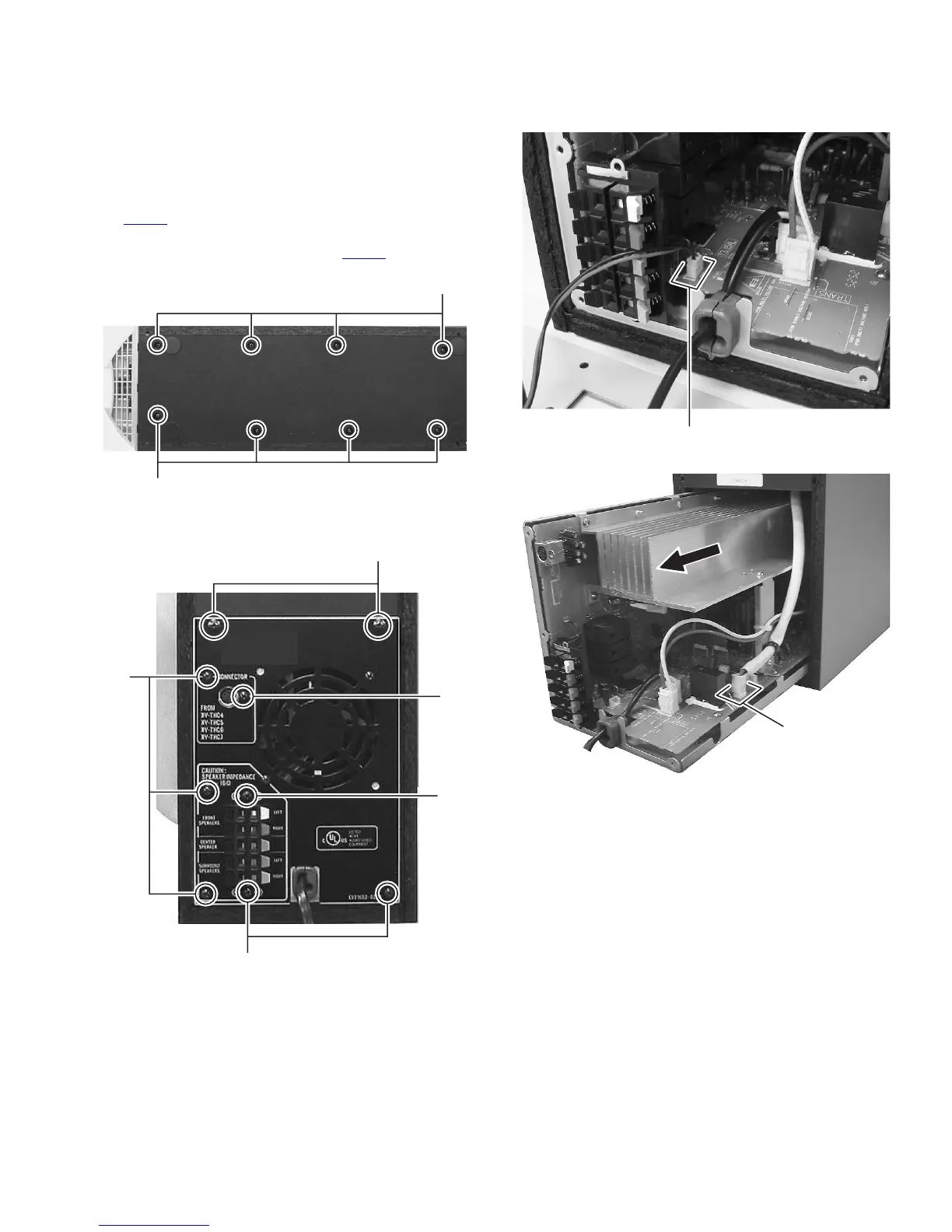

3.2 Subwoofer
3.2.1 Removing the amplifier assembly
(See Fig.1 to 4)
(1) Remove the eight screws A attaching the amplifier assem-
bly from bottom side. (See Fig.1)
(2) Remove the two screws B, one screw C and six screws D
attaching the rear panel. (See Fig.2)
(3) Disconnect the connector wire from fan motor connected to
CN371
. (See Fig.3)
(4) Pull out the amplifier assembly and disconnect the connec-
tor wire from speaker connected to CN274
. (See Fig.4)
Fig.1
Fig.2
Fig.3
Fig.4
A
A
B
C
D
D
D
CN371
CN274
