JVC TH-C30J - Page 12

1-12 (No.MB506)

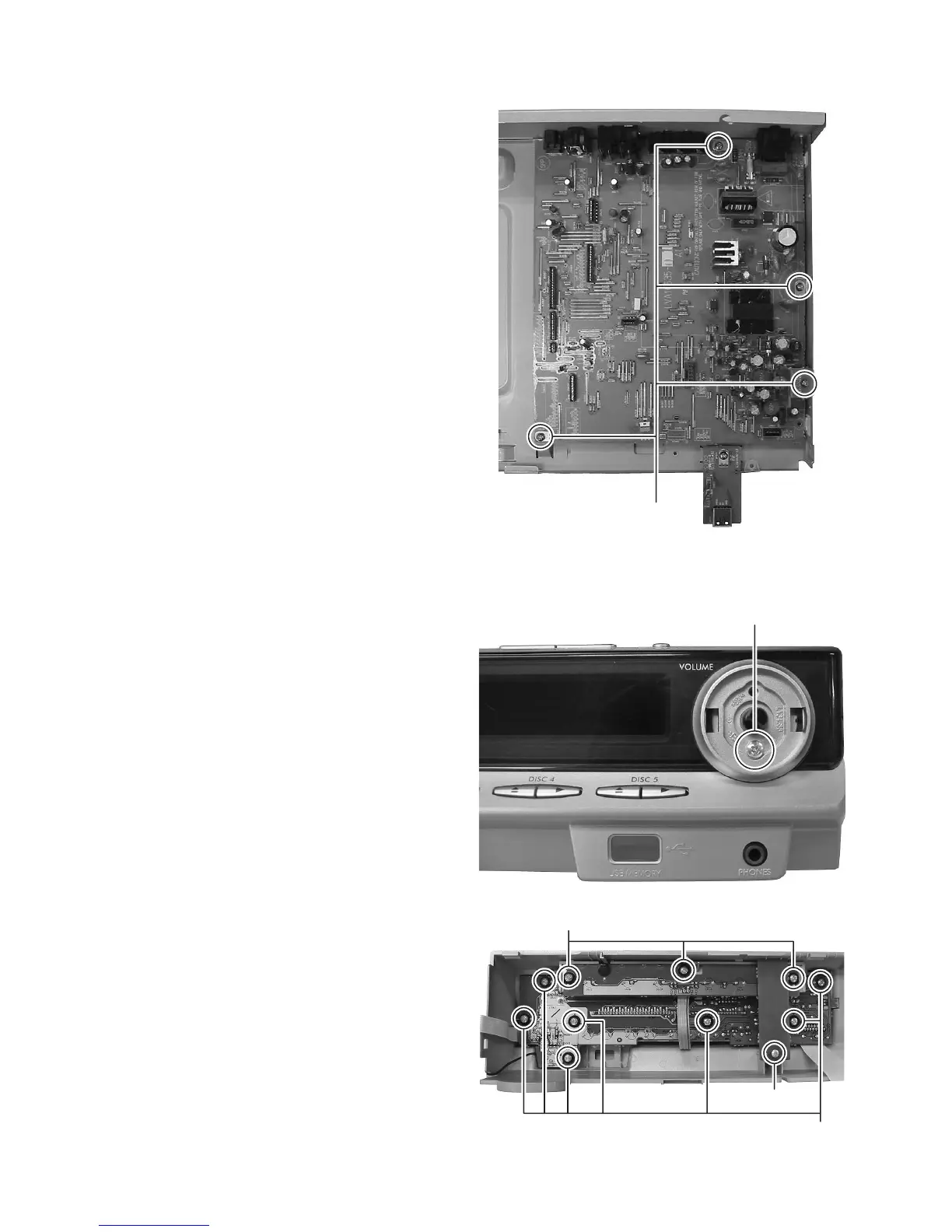

3.1.7 Removing the main board
(See Fig.2 and 11)
(1) Remove the five screws J attaching the main board from
back side. (See Fig.2)
(2) Remove the four screws K attaching the main board. (See
Fig.11)
Fig.11
3.1.8 Removing the operation board
(See Fig.12 and 13)
(1) Pull out the volume knob.
(2) Remove the one screw L attaching the volume. (See
Fig.12)
(3) Remove the one screw M attaching the bracket board.
(See Fig.13)
(4) Remove the three screws N attaching the operation board.
(See Fig.13)
3.1.9 Removing the front board
(See Fig.13)
(1) Remove the seven screws P attaching the front board.
Fig.12
Fig.13
K
L
P
N
M
