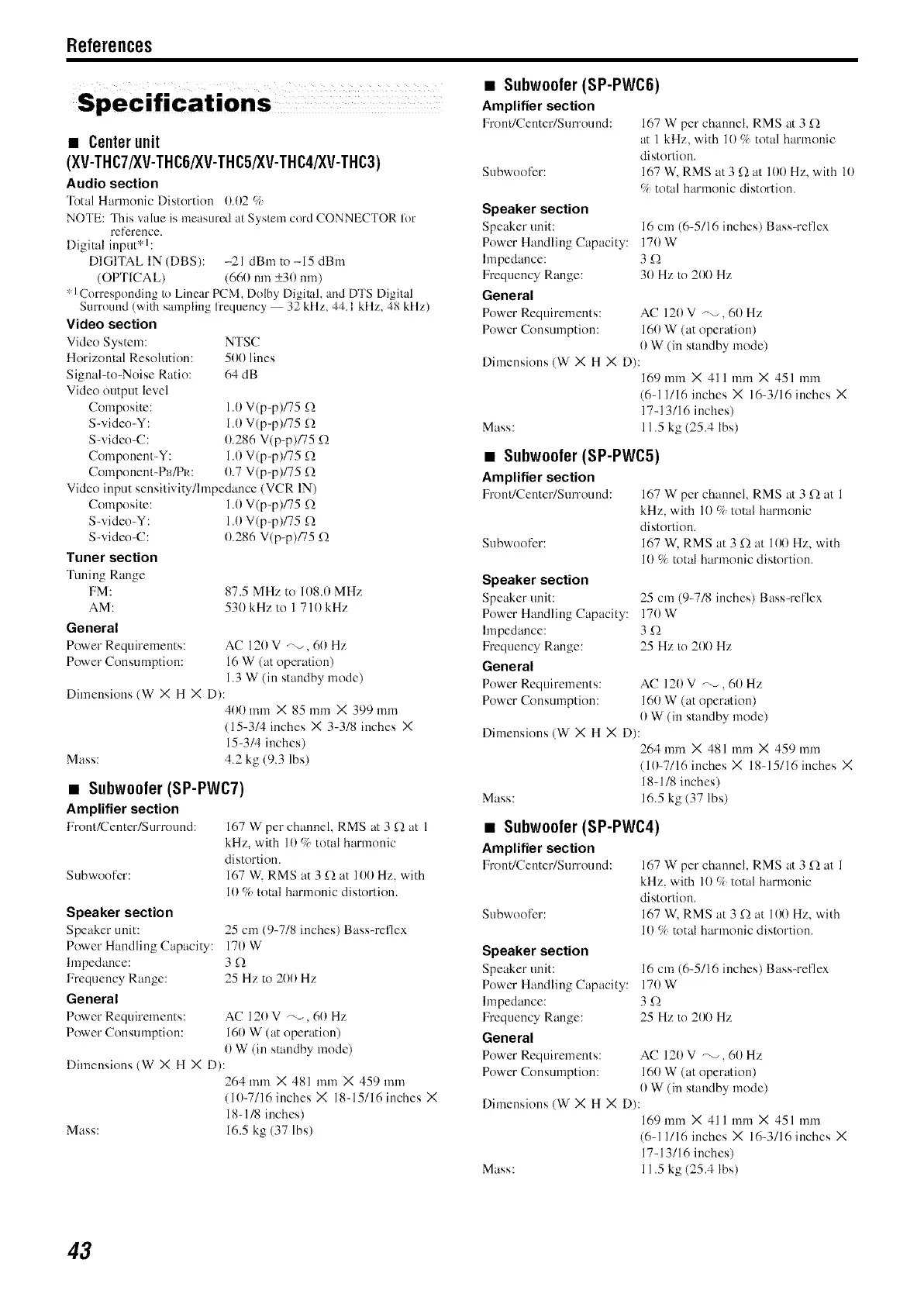

References
• Center unit
(XV-THC7/XV-THC6/XV-THC5/XV-THC4/XV-THC3)
Audio section
'l_tal Harmonic Distortion 0.02 %
NOTE: "I]lisvalue is measured at System cord CONNECTOR for
reference.
Digitatl input a ]:
DIGITAL IN (DBS): -21 dBm to -15 dBm
(OPTICAL) (660 nm +30 nm)
,:ICorresponding/o Linear PCM, Dolby Digital, and DTS Digital
Surround (with sampling frequency 32 kliz, 44.1 kllz, 48 kliz)
Video section
Video System: NFSC
Horizontal Resolution: 500 lines
Signal-to-Noise Ratio: 64 dB
Video output level
Composite: 1.0 V(p-p)/75 '2`2
S-video-Y: 1.0 V(p-p)/75 '2`2
S-video-C: 0.286 V(p-p)/75 '2`2
Component-Y: 1.0 V(p-p)/75 '2`2
Component-P_t/PR: 0.7 V(p-p)/75 '2`2
Video input sensitivity/hnpedance (VCR IN)
Composite: 1.0 V(p-p)/75 '2`2
S-video-Y: 1.0 V(p-p)/75 '2`2
S-video-C: 0.286 V(p-p)/75 '2`2
Tuner section
Tuning Rmlge
FM: 87.5 MHz to 108.0 MHz
AM: 530kHzto 1710kHz
General
Power Requirements: AC 120 V _, 60 Hz
Power Consumption: 16 W (at operation)
1.3 W (in standby mode)
Dimensions (W X H X D):
400 mm X 85 mm X 399 mm
(15-314 inches X 3-318 inches X
15-3/4 inches)
Mass: 4.2 kg (9.3 lbs)
• Subwoofer (SP-PWC7)
Amplifier section
t;ront/Center/Surround:
Subwoofcr:
Speaker section
Speaker unit:
Power Handling Capacity:
hnpedance:
Frequency Range:
General
Power Requirements:
Power Consumption:
167 W per channel, RMS at 3 '2`2at 1
kHz, with 10 _¼total harmonic
distortion.
167 W, RMS at 3 g_ at 100 Hz, with
10 _ total harmonic distortion.
25 cm (9-718 inches) Bass-reflex
170 W
3 '2"2
25 Hz to 200 Hz
AC 120 V _'_, 60 Hz
160 W (at operaion)
0 W (in standby mode)
Dimensions (W X H X D):
264 mm X 481 mm X 459 mm
(10-7116 inches X 18-15/16 inches X
18-1/8 inches)
Mass: 16.5 kg (37 lbs)
• Subwoofer(SP-PWC6)
Amplifier section
Front/Center/Sun-ound:
Subwoo_'cr:
Speaker section
Speaker unit:
Power Handling Capacity:
hnpedance:
Frequency Range:
General
Power Requirements:
Powcr Consumption:
167 W per channel, RMS at 3 '2`2
at 1 kHz, with 10 _ total harmonic
distortion.
167 W, RMS at 3 '2`2at 100 Hz, with 10
t_ total hm'monic distortion.
16 cm (6-5/16 inches) Bass-reflex
170 W
3 '2"2
30 Hz to 200 Hz
AC 120 V _*, 61) Hz
160 W (at operaion)
0 W (in standby mode)
Dimensions (W X H X D):
169ram X 411 mm X 451 mm
(6-11116 inches X 16-3/16 inches X
17-13116 inches)
Mass: 11.5 kg (25.4 Ibs)
• Subwoofer(SP-PWC5)
Amplifier section
Front/Center/Sun'ou nd:
Subwoo['cr:
Speaker section
Speaker unit:
Power Handling Capacity:
hnpedance:
Frequency Range:
General
Power Requirements:
Powcr Consumption:
167 W per channel, RMS a 3 '2"2at 1
kHz, with 10 _ total harmonic
distortion.
167 W RMS at 3 '2"_at 100 Hz, with
10 _ total harmonic distortion.
25 cm (9-718 inches) Bass-reflex
170 W
3 '2"2
25 Hz to 200 Hz
AC 120 V _., 61) Hz
160 W (at operation)
0 W (in standby mode)
Dimensions (W X H X D):
264 mm X 481 mm X 459 mm
(10-7116 inches X 18-15/16 inches X
18-1/8 inches)
Mass: 16.5 kg (37 lbs)
• Subwoofer(SP-PWC4)
Amplifier section
Front/Center/StnTOUnd:
Subwoofer:
Speaker section
Speaker unit:
Powcr Handling Capacity:
hnpedance:
Frequency Range:
General
Power Requirements:
Powcr Consumption:
167 W per channel, RMS at 3 '2`2at 1
kHz, with 10 _ total harmonic
distortion.
167 W, RMS at 3 '2`2at 100 Hz, with
10 _ total harmonic distortion.
16 cm (6-5/16 inches) Bass-reflex
170 W
3 '2`2
25 Hz to 200 Hz
AC 120 V _, 61) Hz
160 W (at operation)
0 W (in standby mode)
Dimensions (W X H X D):
169ram X 411 mm X 451 mm
(6-11116 inches X 16-3/16 inches X
17-13116 inches)
Mass: 11.5 kg (25.4 lbs)
