JVC TH-C60J

1-12 (No.MB511)
3.1.3 Removing the DVD changer mechanism assembly
(See Fig.6 to 8)
(1) From the back side of main body, remove the one screw E
and one screw F attaching the DVD changer mechanism
assembly. (See Fig.6)
(2) Disconnect the connector wire from connector CN704
of
the DVD module board. (See Fig.7)
(3) Disconnect the card wires from connector CN701
, CN702,
CN703
and CN801 of the DVD module board. (See Fig.7)
(4) Remove the four screws G attaching the DVD changer
mechanism assembly. (See Fig.8)

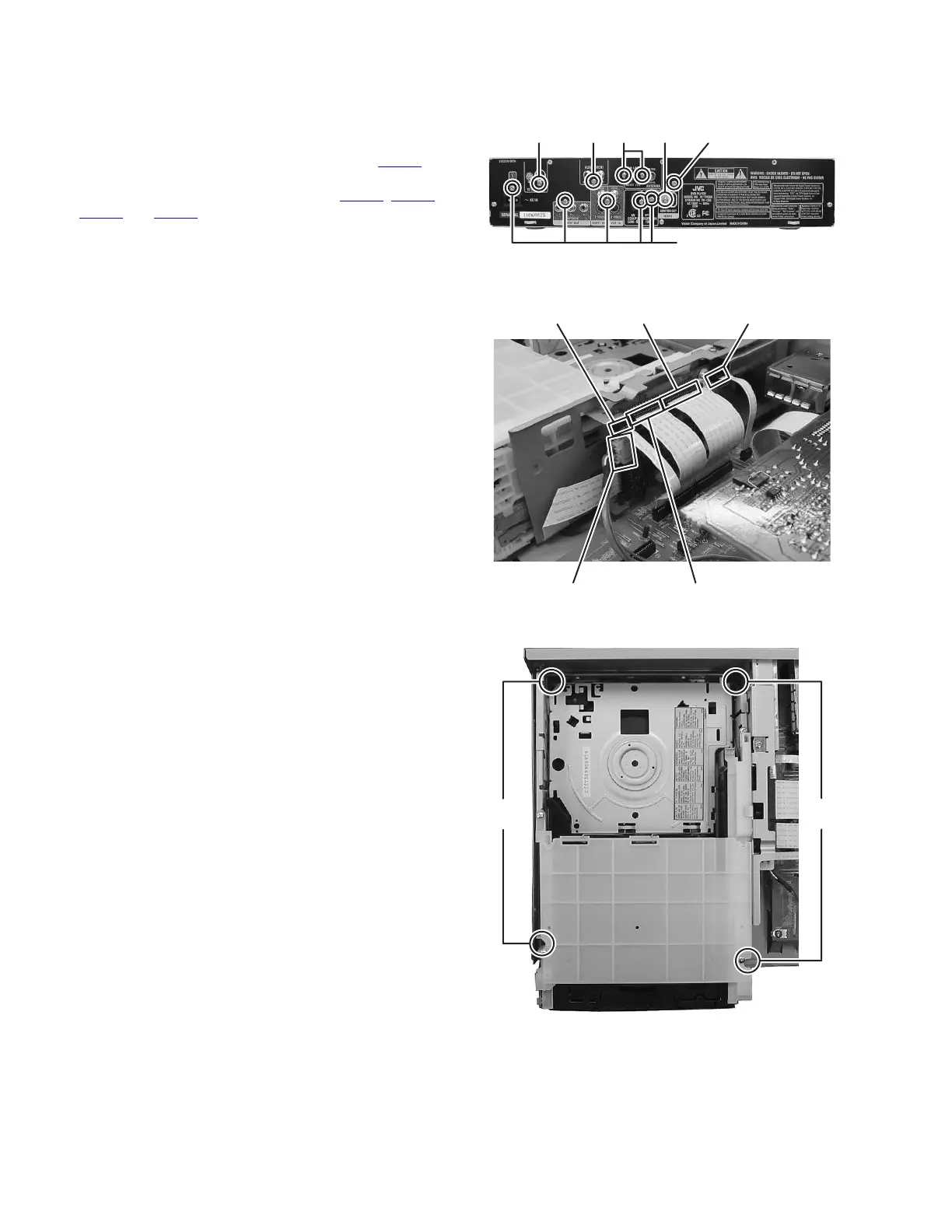

Fig.6
Fig.7
Fig.8
EH
M
LJF
CN701
CN702
CN703 CN801
CN704
GG
