3.1.8 Removing the operation board
(see Fig.12)
(1) Remove the one screw P attaching the bracket board.
(2) Remove the three screws Q attaching the operation board.
3.1.9 Removing the front board
(See Fig.12 and 13)
(1) Take out the volume knob.
(2) Remove the one screw R attaching the volume. (See
Fig.13)
(3) Remove the bracket board and operation board. (See
Fig.12)
(4) Remove the seven screws S attaching the front board.
(See Fig.12)

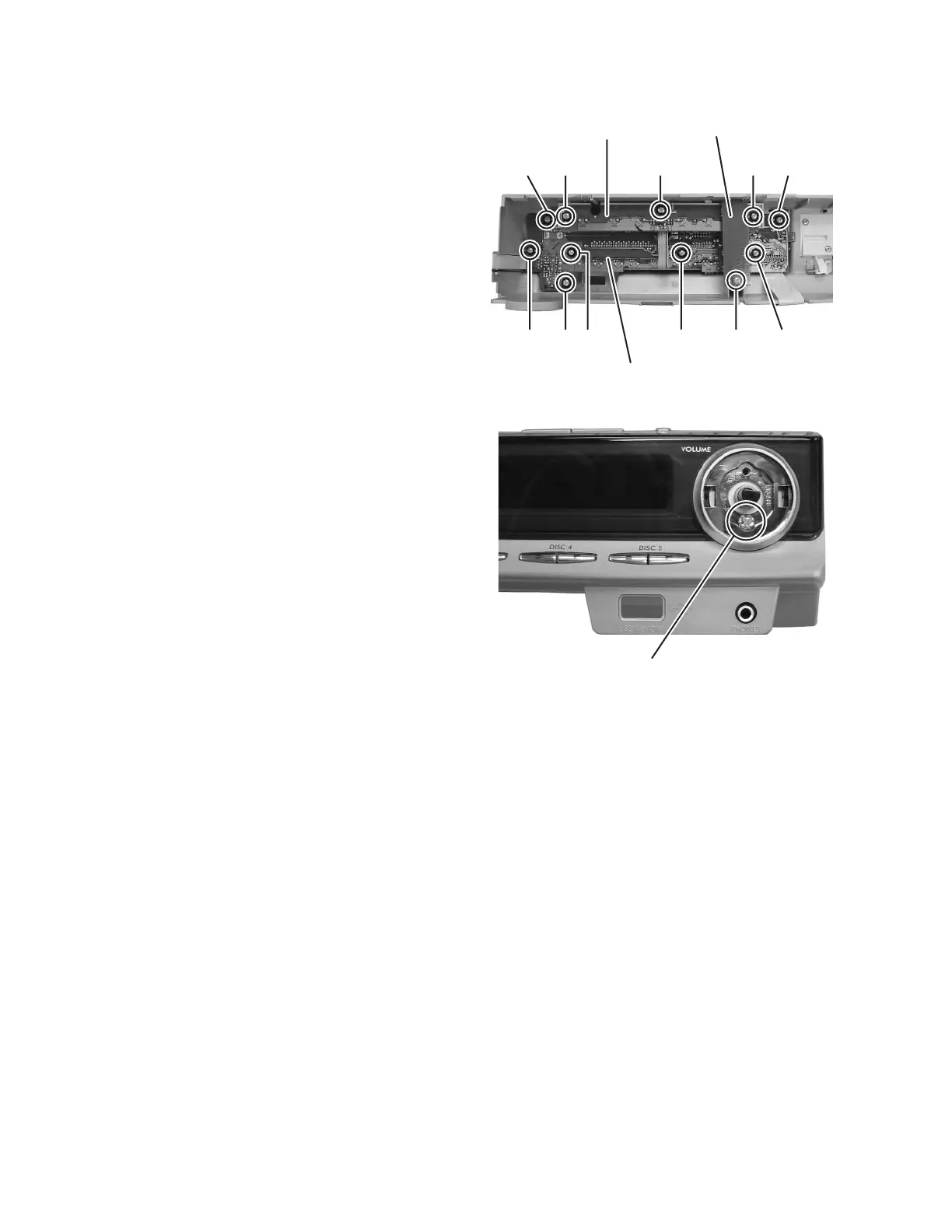

Fig.12
Fig.13
Bracket boardOperation board
Front board
QS
SSSSS
SQQ
P
R
