JVC TH-C60J - Subwoofer Disassembly Procedures

(No.MB511)1-15
3.2 Subwoofer

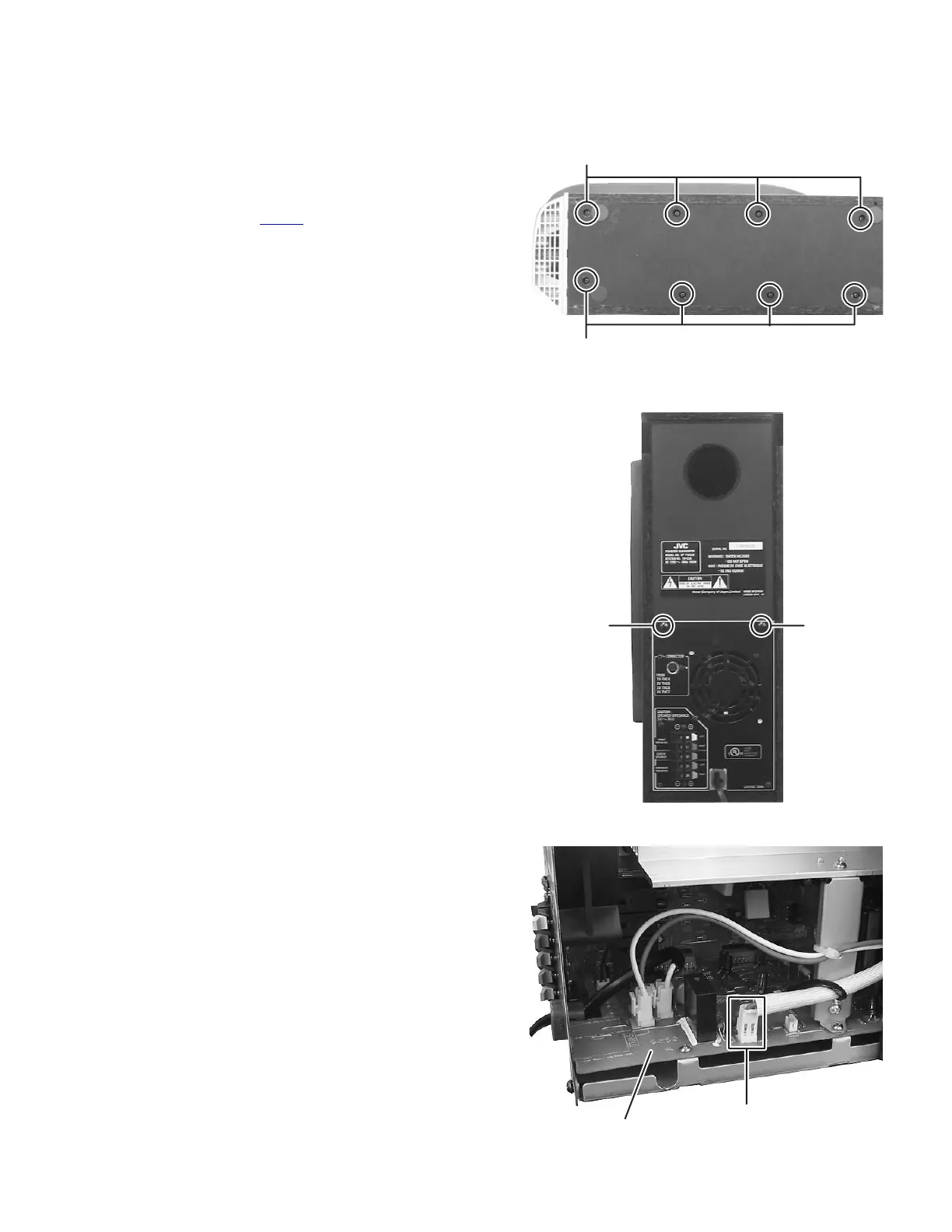

3.2.1 Removing the amp unit
(See Fig.1 to 3)
(1) From the bottom side of subwoofer assembly, remove the
eight screws A attaching the amp unit. (See Fig.1)
(2) From the back side of subwoofer assembly, remove the
two screws B attaching the amp unit. (See Fig.2)
(3) Pull out the amp unit, and then disconnect the connector
wire from connector CN274
of the mother board. (See
Fig.3)
Fig.1
Fig.2
Fig.3
A
A
BB
CN274
Mother board
