1-18 (No.MB570)

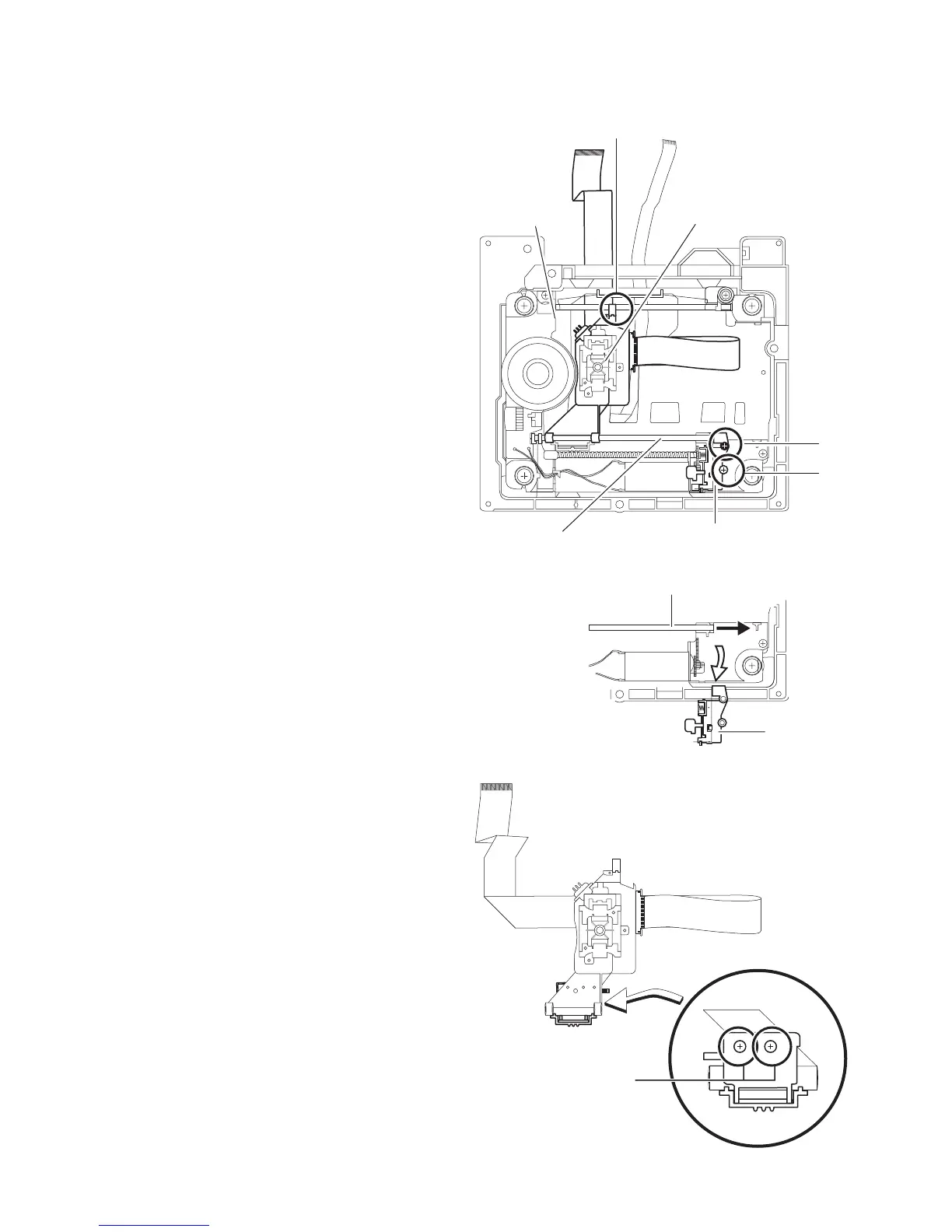

3.2.6 Removing the pickup
(See Fig.10 and 11)
(1) Remove the one screw F and G attaching the spring hold-
er. (See Fig.10)
(2) Lift up the shaft from the tramecha assembly. (See Fig.10)
(3) Remove the two screws H attaching the lack. (See Fig.11)
Fig.10
Fig.11
Pickup assembly
Mecha base
e
F
G
Shaft
Spring holder
Shaft
Spring
holder
H
