JVC TH-C90A - See Fig.

(No.MB570)1-17

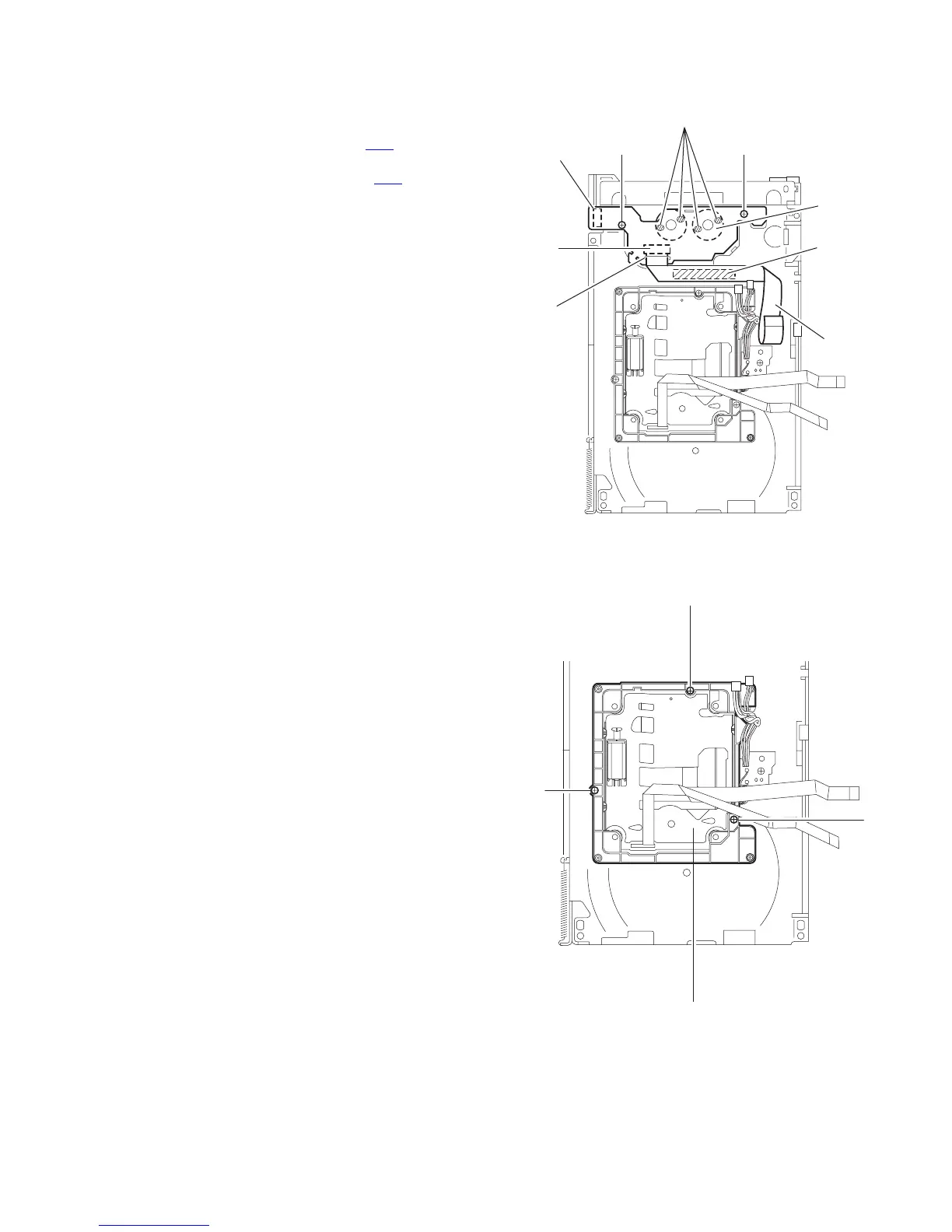

3.2.4 Removing the motor board
(See Fig.8)
(1) Remove the two screws D attaching the motor board.
(2) Remove the spacer fixing the motor board and tray switch-
board, and disconnect the connector CN2
on the motor
board.
(3) Disconnect the card wire from connector CN1
on the motor
board.
Caution:
When reconnection the card wire, let the card wire through the
slot d of the motor board and attach it to bottom of the body us-
ing a double face tape.
Fig.8
3.2.5 Removing the DVD tramecha assembly
(See Fig.9)
(1) Remove the three screws E attaching the DVD tramecha
assembly.
Fig.9
Double
DD
d
CN1
CN2
Soldering point
Motor
face tape
Card wire
DVD Tramecha assembly
E
E
E
