1-36 (No.MB570)
3.4.2 Removing the rear panel
(See Figs.4 and 5)
• Prior to performing the following procedure, remove the ampli-
fier assembly.
(1) From the back side of the amplifier assembly, remove the
six screws C and screw D attaching the rear panel. (See
Fig.4.)
(2) Take out the rear panel with fan motor backward from the
amplifier assembly.
(3) From the top side of the amplifier assembly, disconnect the
fan wire from the connector CN371
on the main board.
(See Fig.5.)
(4) Take out the rear panel.

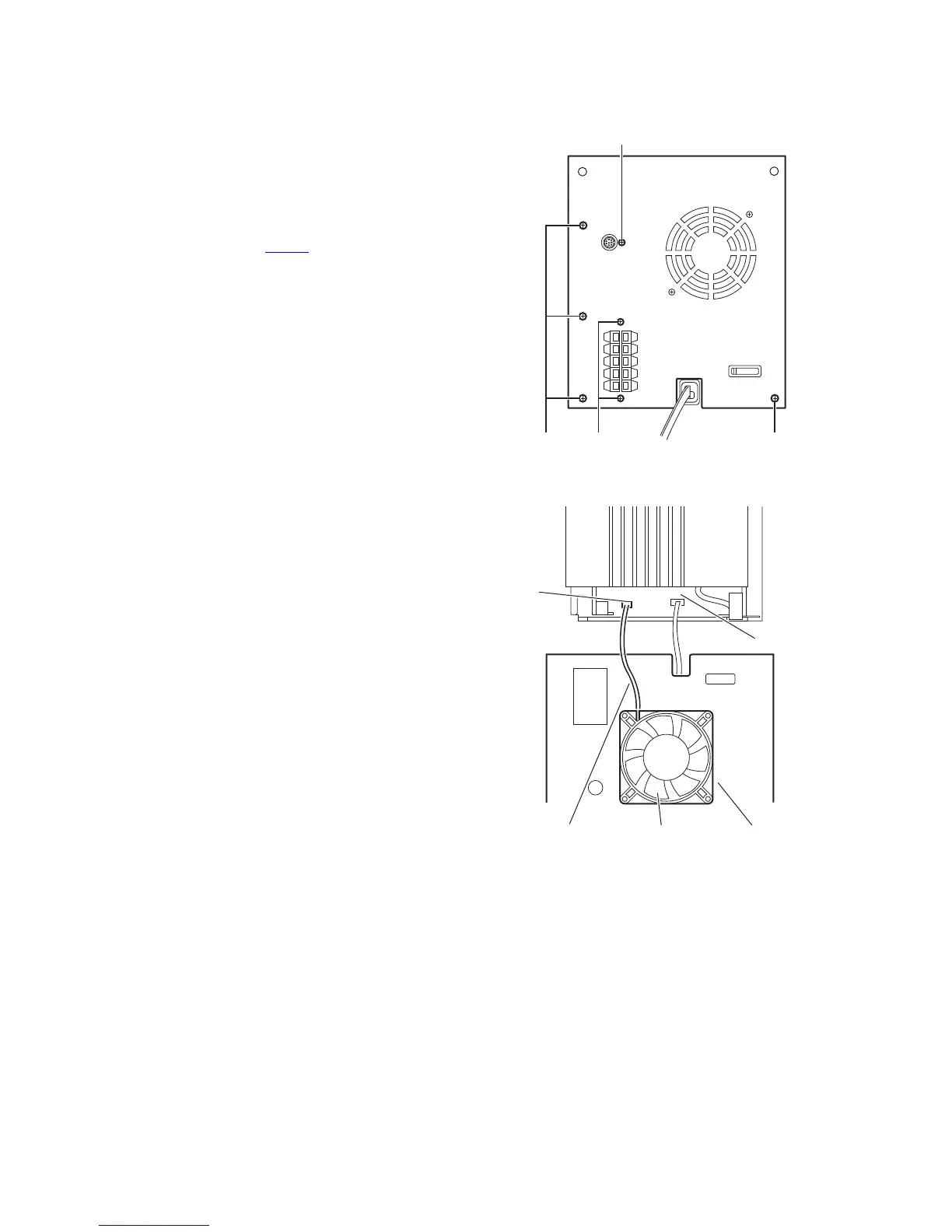

Fig.4
Fig.5
D
CC C
Fan motor Rear panel
Fan wire
CN371
Main board
To Next Page
