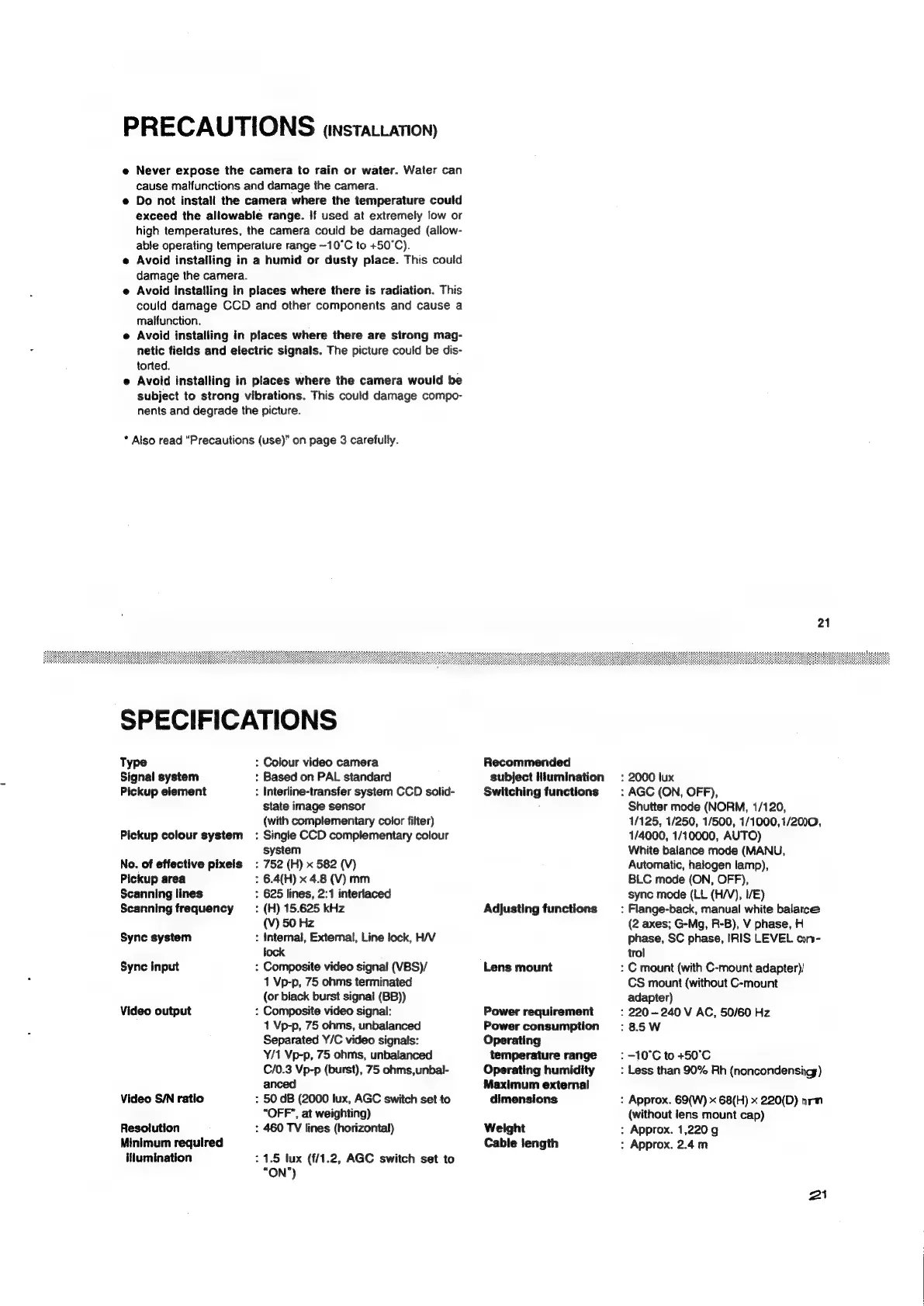

PRECAUTIONS anstatcation)
e Never expose the camera to rain or water. Water can
cause malfunctions and damage the camera.
e Do not install the camera where the temperature could
exceed the allowable range. If used at extremely low or
high temperatures, the camera could be damaged (allow-
able operating temperature range ~10°C to +50°C).
e Avoid installing in a humid or dusty place. This could
damage the camera.
e Avoid installing in places where there is radiation. This
could damage CCD and other components and cause a
malfunction.
e Avoid installing in places where there are strong mag-
netic fields and electric signals. The picture could be dis-
torted. :
e Avoid installing in places where the camera would be
subject to strong vibrations. This could damage compo-
nents and degrade the picture.
* Also read “Precautions (use)” on page 3 carefully.
21
SPECIFICATIONS
Type : Colour video camera Recommended
Signal system : Based on PAL standard subject Illumination —: 2000 lux
Pickup element : Interline-transfer system CCD solid- Switching functions : AGC (ON, OFF),
state image sensor Shutter mode (NORM, 1/120,
(with complementary color filter) 1/125, 1/250, 1/500, 1/1000, 1/2000,
Pickup colour system : Single CCD complementary colour 1/4000, 1/10000, AUTO)
system White balance mode (MANU,
No. of effective pixels: 752 (H) x 582 (V) Automatic, halogen lamp),
Pickup area : 6.4(H) x 4.8 (V) mm BLC mode (ON, OFF),
Scanning lines : 625 lines, 2:1 interlaced syne mode (LL (H/V), I/E)
Scanning frequency — : (H) 15.625 kHz Adjusting functions : Flange-back, manual white balance
(V) 50 Hz (2 axes; G-Mg, R-B), V phase, H
Sync system : intemal, External, Line lock, H/V phase, SC phase, IRIS LEVEL on-
lock trol
Sync input : Composite video signal (VBS)/ Lens mount : C mount (with C-mount adapter);
1 Vp-p, 75 ohms terminated CS mount (without C-mount
(or black burst signal (BB)) adapter)
Video output : Composite video signal: Power requirement : 220-240 V AC, 50/60 Hz
1 Vp-p, 75 ohms, unbalanced Power consumption < 8.5W
Separated Y/C video signals: Operating
Y/1 Vp-p, 75 ohms, unbalanced temperature range _: -10°C to +50°C
C/0.3 Vp-p (burst), 75 ohms,unbal- Operating humidity : Less than 90% Rh (noncondensigg)
anced Maximum external
Video S/N ratio : 50 dB (2000 lux, AGC switch set to dimensions : Approx. 69(W) x 68(H) x 220(D) nin
“OFF”, at weighting) (without lens mount cap)
Resolution : 460 TV lines (horizontal) Weight : Approx. 1,220 g
Minimum required Cable length : Approx. 2.4m
iflumination : 1.5 lux (f/1.2, AGC switch set to
“ON’)
