JVC UX-A52R Service Manual

1-9
UX-A52R

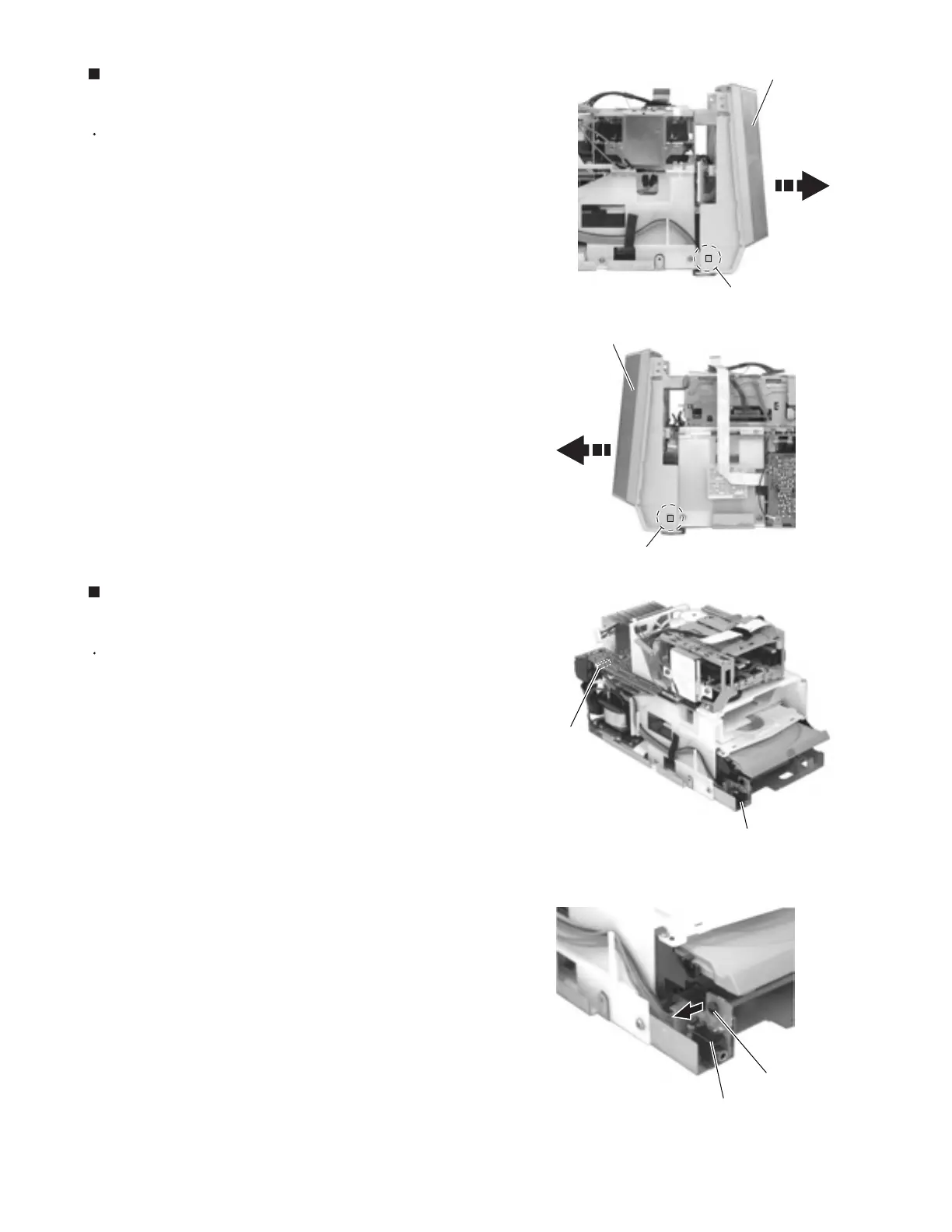

Prior to performing the following procedure, remove
the rear cover, the side panels, the top panel and the
system control board.
Release the two joints d on the lower right and left
sides of the front panel assembly, then remove the
front panel assembly toward the front.
1.
Removing the front panel assembly
(See Fig.11 and 12)
Prior to performing the following procedure, remove
the rear cover, the side panels, the top panel, the
system control board and the front panel assembly
section.
Disconnect the wire from connector CN804 on the
main board.
Remove the plastic rivet fixing the headphone jack
board.
1.
2.
Removing the headphone jack board
(See Fig.13 and 14)
Fig.11
Fig.12
Fig.13
Fig.14
Front panel assembly
Front panel assembly
Joint d
Joint d
Headphone jack board
Headphone jack board
Main board
CN804
Plastic rivet
