JVC UX-A70MD User Manual

1-20
UX-A70MD
Prior to performing the following procedure, remove
the main board, the mechanism cover, the head lifter
and the head assembly.
Remove the three screws D on the upper side of the
body.
Move the loading assembly forward to disengage it
from the traverse mechanism assembly (Joint d).
Then remove it upward.
Remove the traverse mechanism assembly from the
single flame.
1.
2.
3.

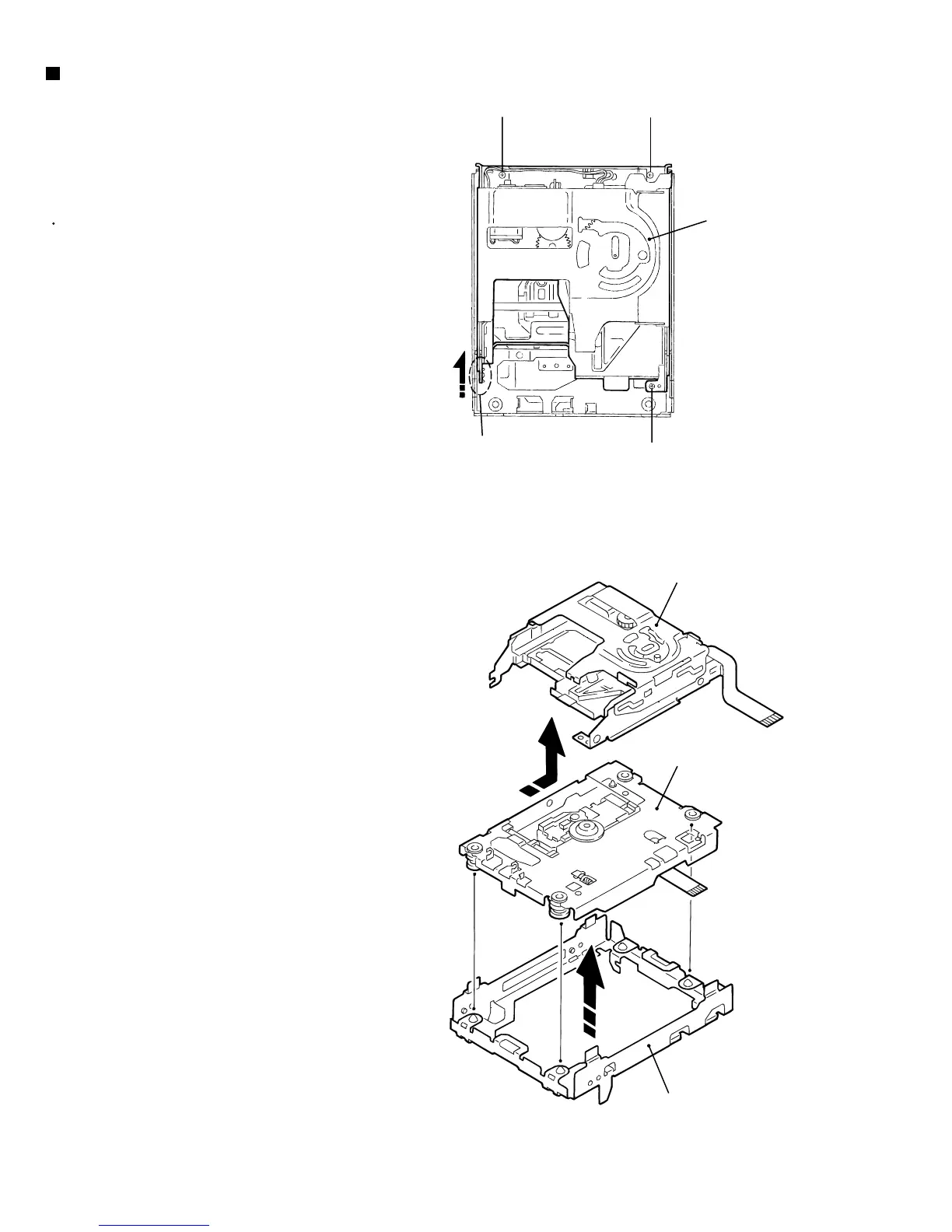

Removing the Loading assembly
(See Fig.8 and 9)
The loading assembly, the traverse mechanism
assembly and the single flame will be
removable after removing the loading assembly
from the body.
Ref:
Fig.8
Fig.9
D
Loading assembly
Joint d
D
D
Loading assembly
Traverse mechanism
assembly
Single flame
