Move the head lifter on top of the body in the
direction of the arrow and turn around.
Detach the spring from the hook of the body.
Remove the head lifter with the spring.
If necessary, remove the spring from the head lifter.
1.
2.
3.

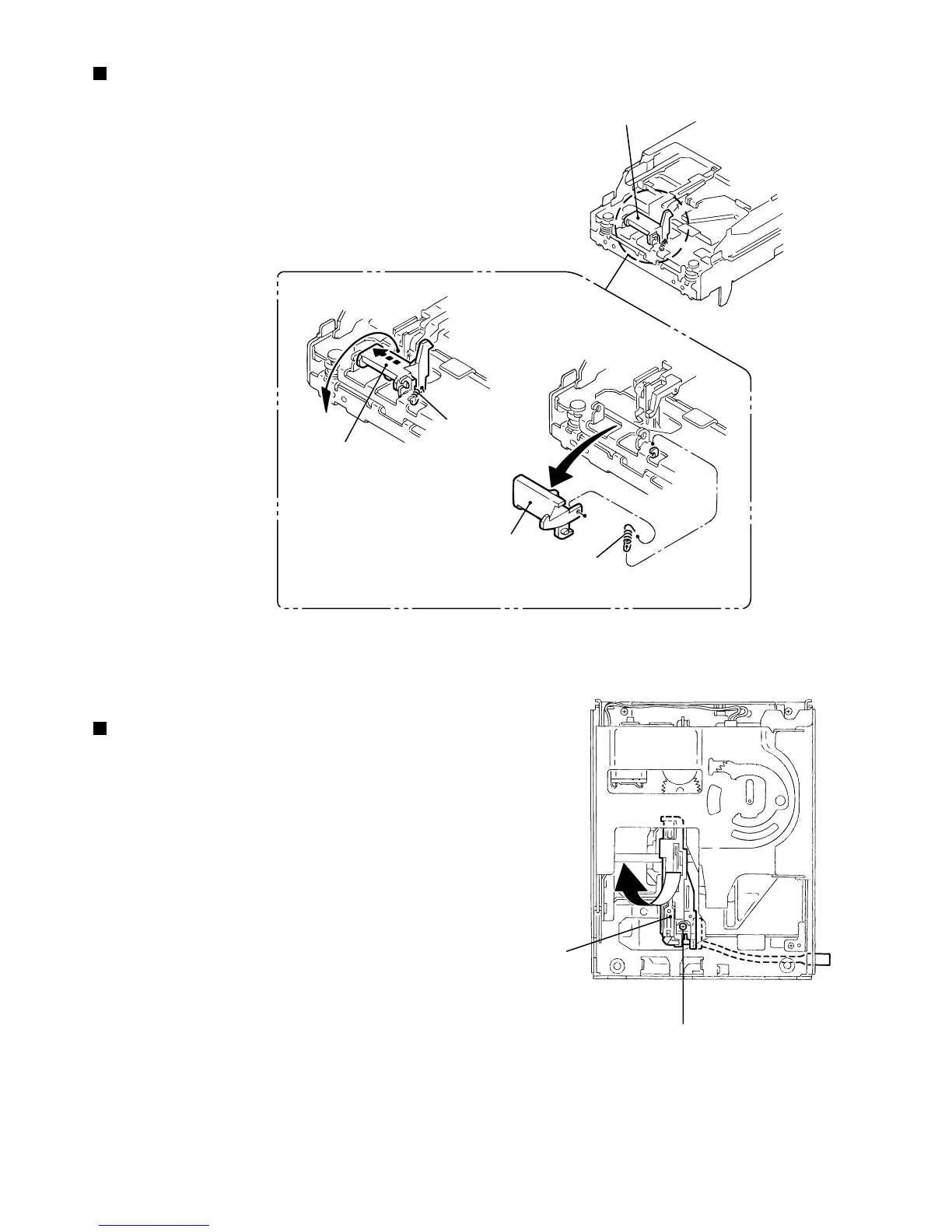

Removing the head lifter (See Fig.4 to 6)
Remove the screw C on the upper side of the body.
Remove the head assembly while pulling the flexible
harness from the body.
1.
Removing the head assembly (See Fig.7)
Fig.4
Fig.5
Fig.6
Fig.7
C
Head lifter
Spring
Spring
Head lifter
Head assembly
Head lifter
