UX-A7DVD
1-24 (No.22013)

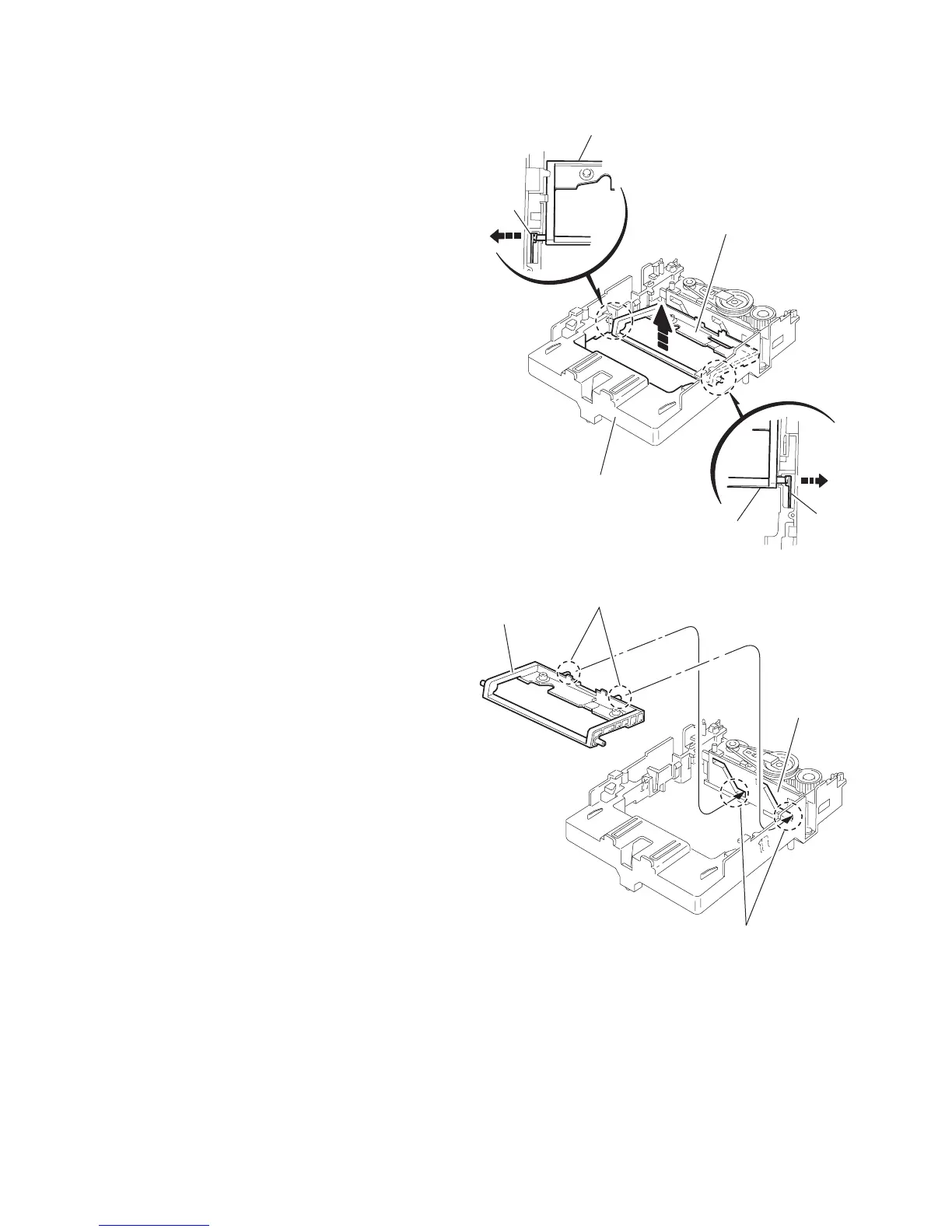

2.3.5 Removing the elevator
(See Fig.7,8)
• Prior to performing the following procedure, remove the
clamper assembly, the tray, the servo control board and the
traverse mechanism assembly.
(1) Pull the two tabs g outward and release the two shafts of
the elevator.
ATTENTION:
When reassembling, fit the two shafts on the front side of the
elevator into the grooves h of the slide cam.
Fig.7
Fig.8
Elevator
Elevator
Elevator
Tab g
Tab g
Loading base
Elevator
Shaft
Slide cam
h
To Next Page
