UX-A7DVD
(No.22013)1-27

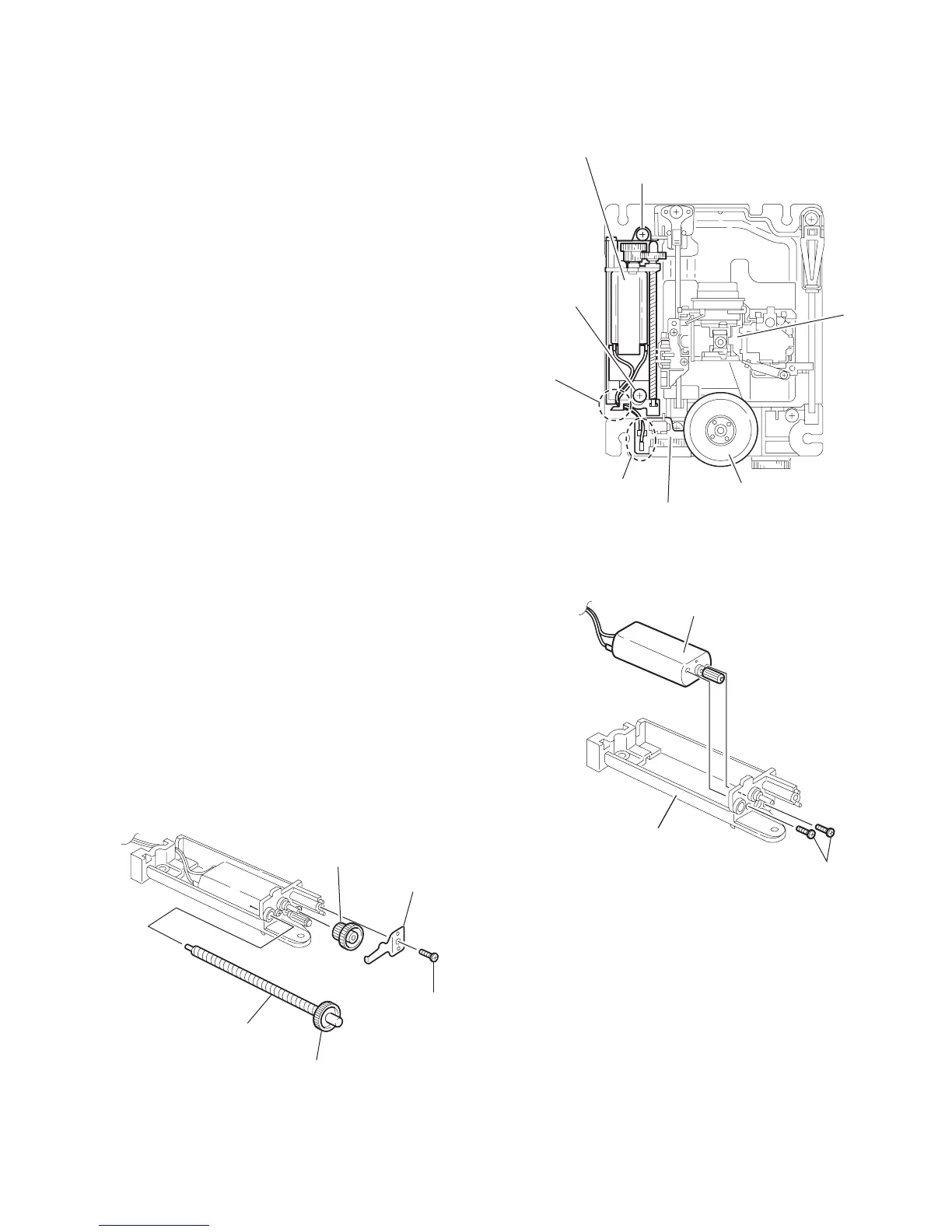

2.4 DVD traverse mechanism assembly
2.4.1 Removing the feed motor assembly
(See Fig.14)
(1) Unsolder the two soldering l on the spindle motor board.
(2) Remove the two screws F attaching the feed motor assem-
bly.
Fig.14
2.4.2 Removing the feed motor
(See Fig.14~16)
• Prior to performing the following procedure, remove the feed
motor assembly.
(1) Remove the screw G and the spring.
CAUTION:
When reassembling, attach the spring correctly to press
the feed gear M and E.
(2) Remove the feed gear M.
(3) Pull out the feed gear E and the lead screw.
(4) Remove the two screws H and the feed motor.
CAUTION:
When reassembling, set the two wires extending from
the feed motor to the notch m of the feed holder as
shown in Fig.14.
Fig.15
Fig.16
F
l
m
F
Feed motor assembly
Spindle motor board
Spindle motor
Pickup
Feed gear M
Spring
G
Feed gear E
Lead screw
Feed motor
Feed motor
H
