UX-A7DVD
1-26 (No.22013)
2.3.7 Removing the idle gear/ pulley gear/ middle gear/ slide cam
(See Fig.11~13)
• Prior to performing the following the procedures, remove the
clamper assembly, the tray, the servo control board, the
traverse mechanism assembly, the elevator and the motor as-
sembly.
(1) Push the two tabs j attaching the idle gear inward and pull
out the idle gear.
(2) Remove the screw E attaching the pulley gear bracket.
Move the pulley gear bracket in the direction of the arrow
and remove upward.
(3) Pull out the pulley gear.
(4) Move the slide cam in the direction of the arrow to release
the two joints k and remove upward.
(5) Remove the middle gear.

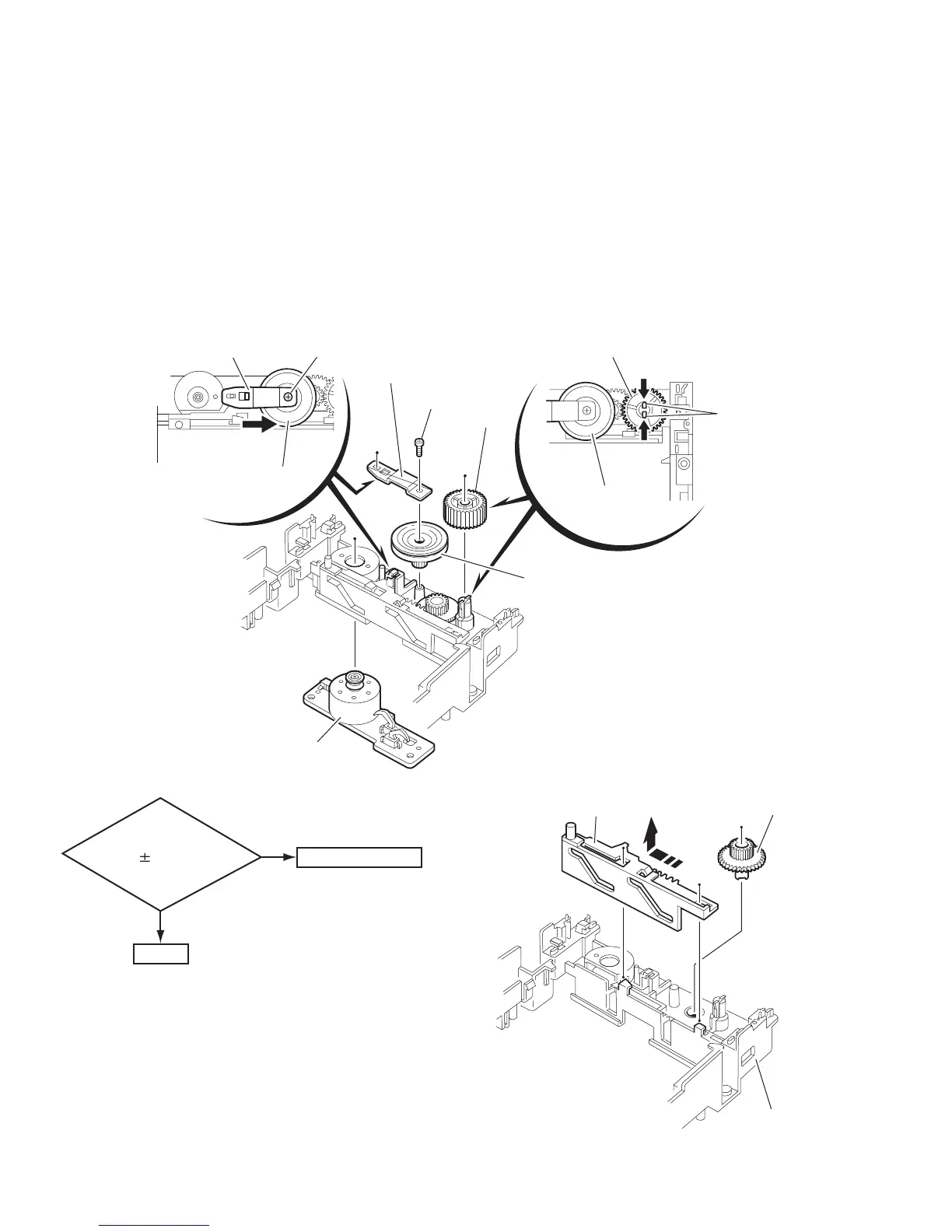

Fig.11
Fig.12
Fig.13
Motor assembly
Pulley gear
Pulley gear bracket
Pulley gear bracket
E
E
Idle gear
Idle gear
Pulley gear
Tab j
Pulley gear
Change the picku
