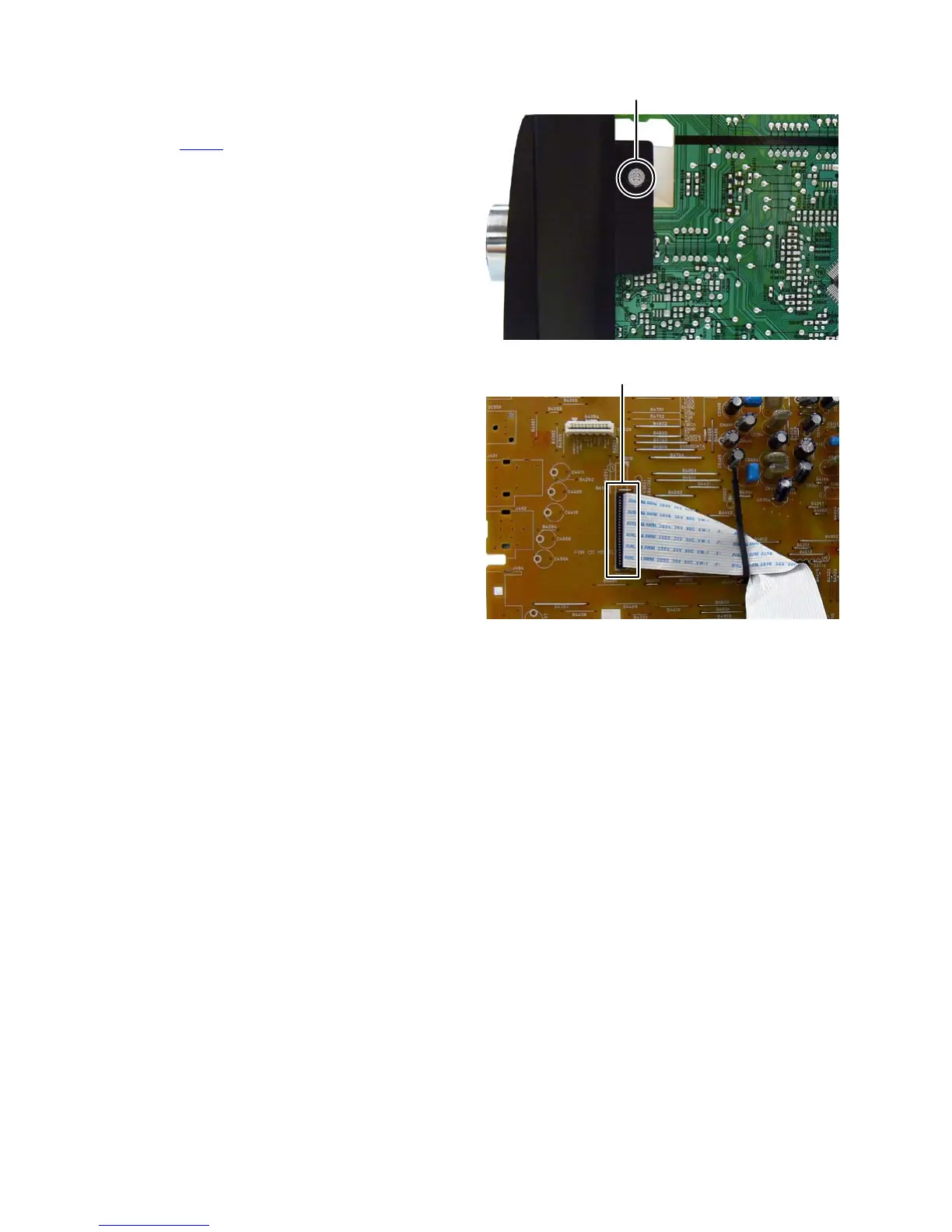

3.1.6 Removing the Mecha chassis (See Fig.10, 11)
(1) Remove the two screws G attaching the both side of the
Front panel. (See Fig.10)
(2) Disconnect the card wire from Connection board connect-
ed to connector CN311
of the Micom board. (See Fig.11)
Fig.10
Fig.11
G
CN311
