(No.MB665<Rev.004>)1-11

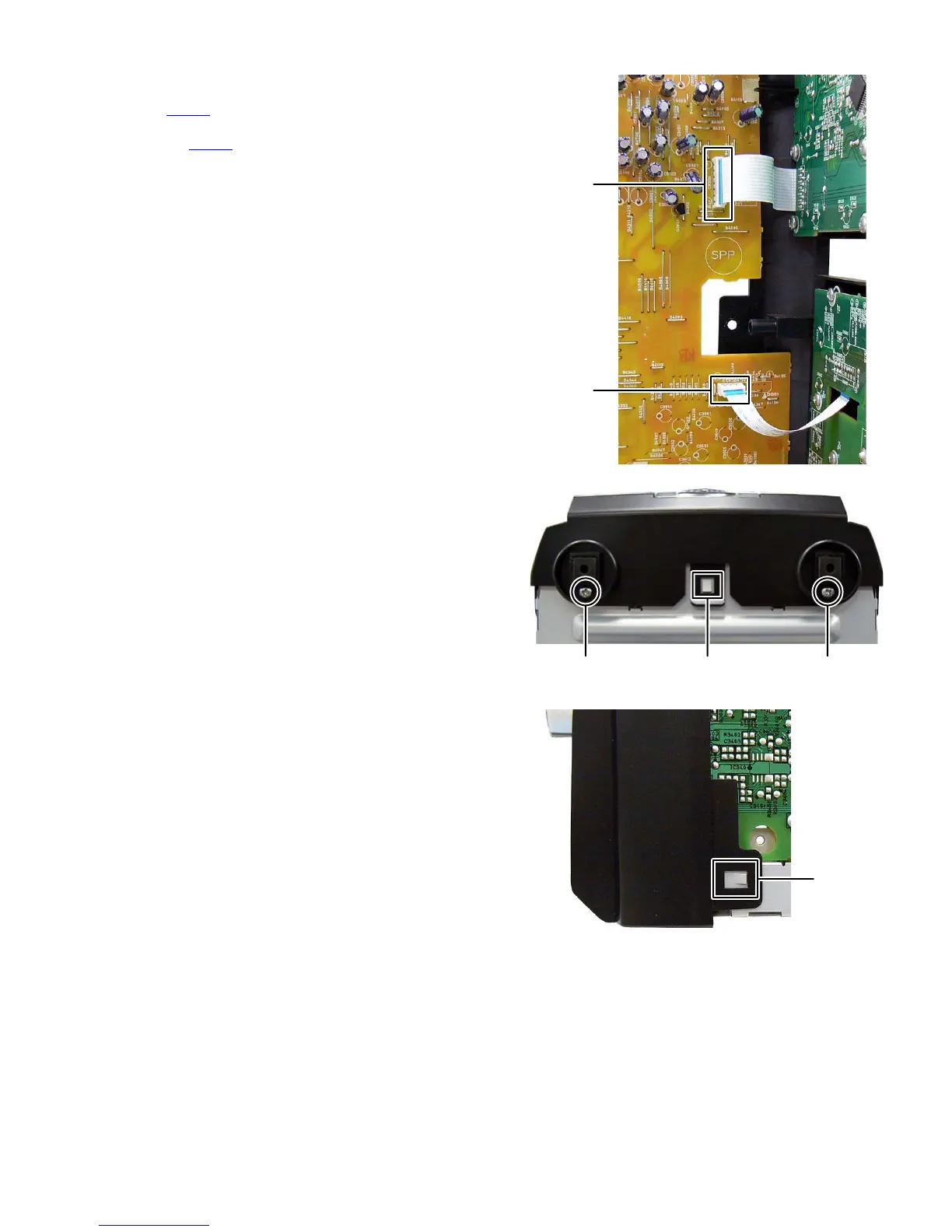

3.1.7 Removing the Front panel (See Fig.12 to 14)
(1) Disconnect the card wire from FL board connected to con-
nector CN304
of the Micom board. (See Fig.12)
(2) Disconnect the card wire from Volume board connected to
connector CN303
of the Micom board. (see Fig.12)
(3) Remove the two screws H attaching the Front panel. (See
Fig.13)
(4) Disengage two hooks a engaged both side of the Front
panel. (See Fig.14)
(5) Disengage one hook b engaged bottom side of the Front
panel. (See Fig.13)
Fig.12
Fig.13
Fig.14
CN304
CN303
hook b
HH
hook a
To Next Page
