3.1.15 Removing the key board

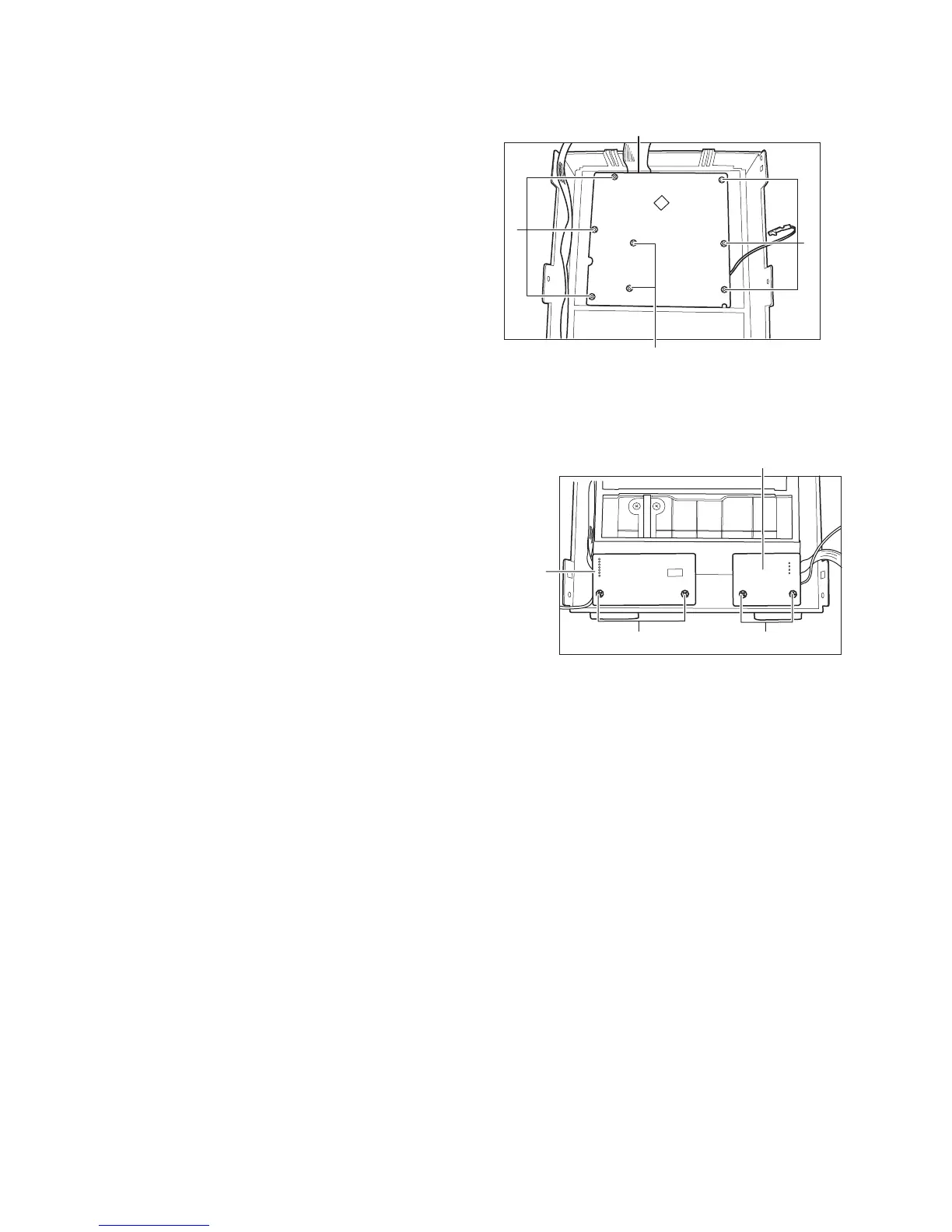

(See Fig.23)
(1) Remove the eight screws P from the front cabinet and the
key board.
Fig.23
3.1.16 Removing the AUX board
(See Fig.24)
(1) Remove the two screws Q from the front cabinet and the
aux board.
3.1.17 Removing the phones board
(See Fig.24)
(1) Remove the two screws R from the front cabinet and the
phones board.
Fig.24
Key board
P
P
P
A
ux board
Phones board
Q
R
