JVC UX-G5 Service Manual

(No.MB431)1-11

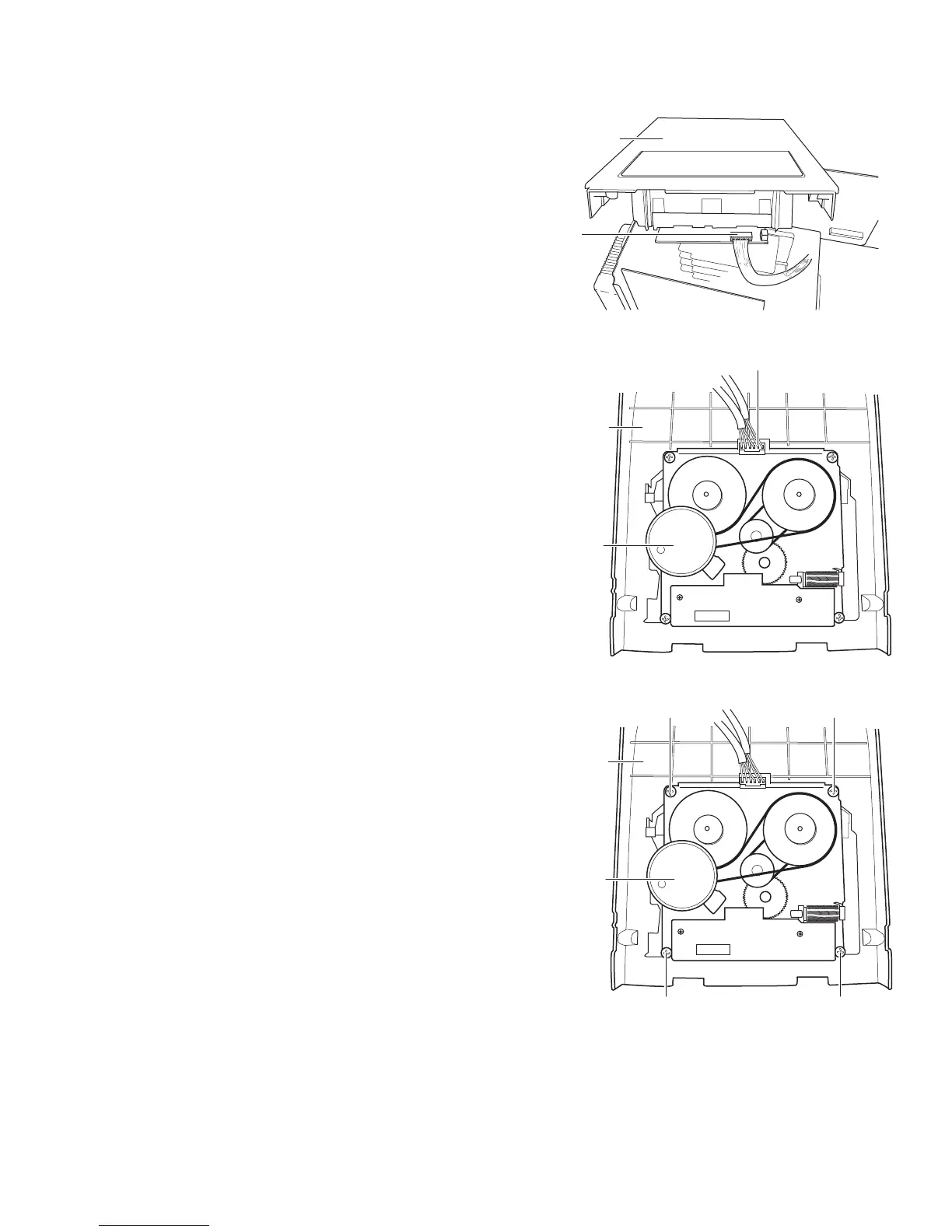

3.1.14 Removing the cassette machine from top cover
(See Fig.20 to 22)
(1) Disconnect the wire E1 from connector of the cassette ma-
chine. (See Fig.20)
(2) Disconnect the wire E2 from connector of the cassette ma-
chine. (See Fig.21)
(3) Remove the four screws E3 from top cover. (See Fig.22)
(4) Take out cassette machine.
Fig.20
Fig.21
Fig.22
TOP COVER
E1
E2
TOP COVER
CASSETTE
MECHA
E3E3
E3E3
TOP COVER
CASSETTE
MECHA
