JVC UX-G5 Service Manual

1-10 (No.MB431)

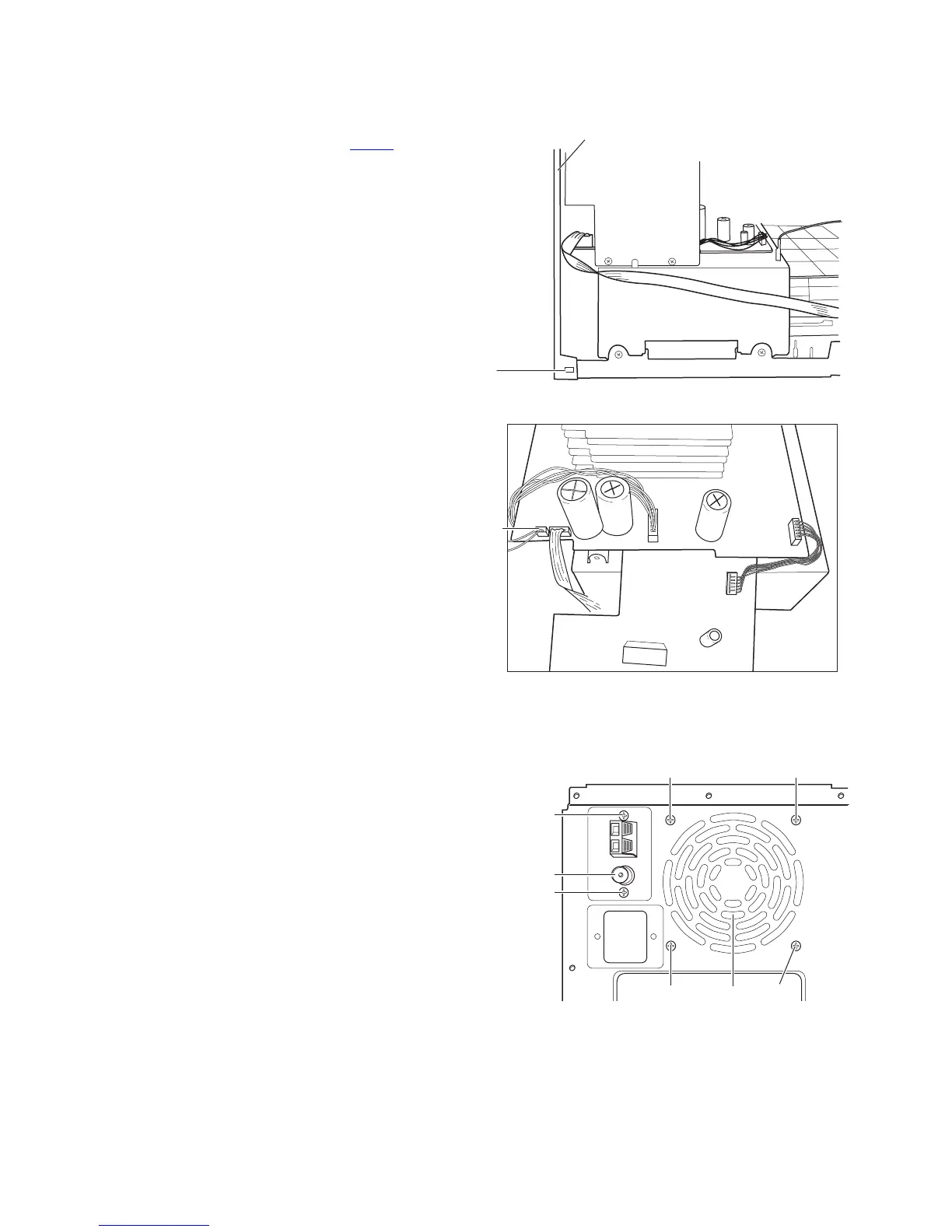

3.1.11 Removing the Rear plate assembly
(See Fig.17 to 18)
(1) Disengage the claws I1 on both sides of bottom plate. (See
Fig.17)
(2) Disconnect the wire I2 from the connector CN105 on the
AMP board. (See Fig.18)
Fig.17
Fig.18
3.1.12 Removing the fan
(See Fig.19)
(1) Removing the four screws M2.
3.1.13 Removing the Tuner pack
(See Fig.19)
(1) Removing the two screws M1.
Fig.19
I1
Rear plate assembly
I2
M1
M2
M2 Fan
M2
M2
M1
Tuner pack
