1-8 (No.MB431)
3.1.9 Removing the main board

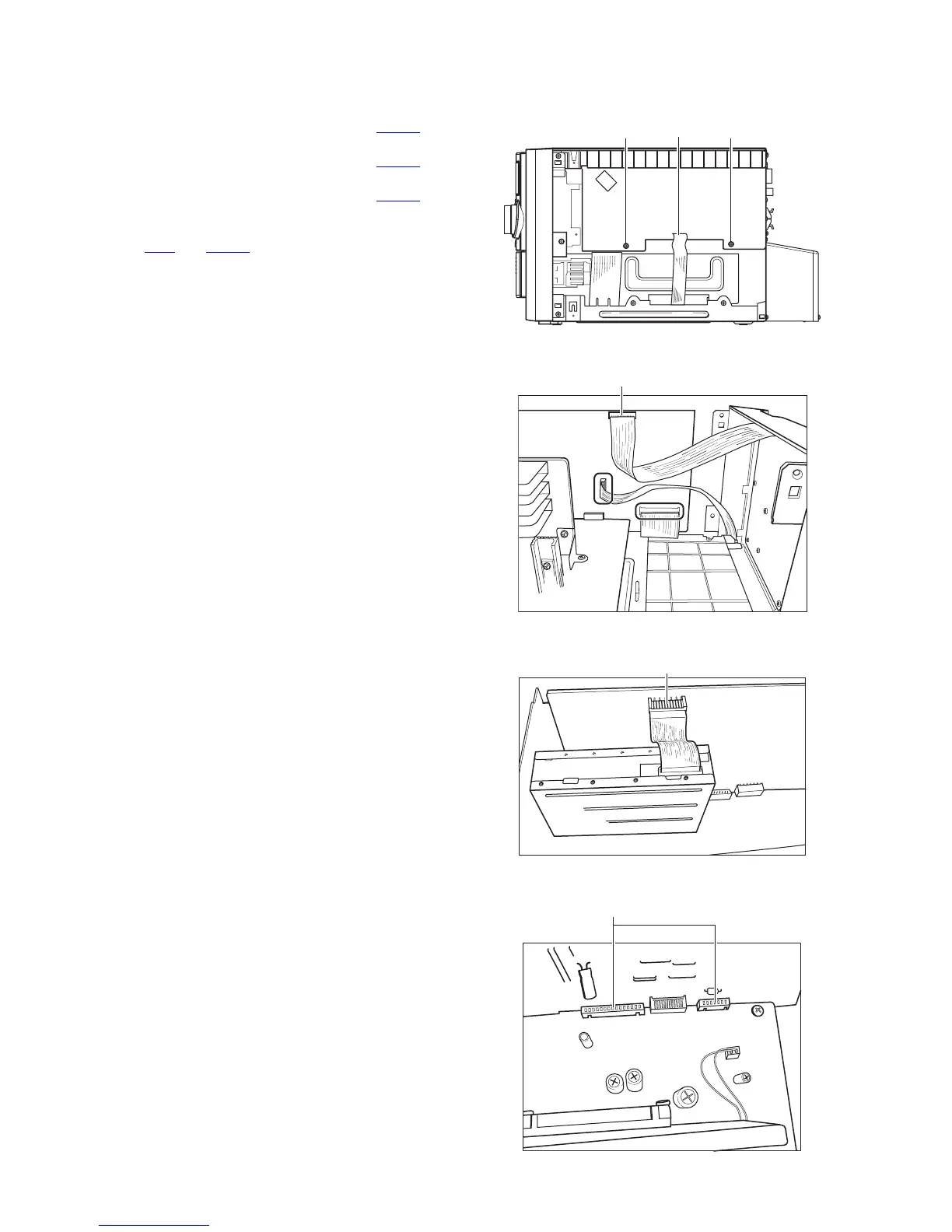

(See Fig.10 to 13)
(1) Remove the two screws J1. (See Fig.10)
(2) Disconnect the FFC cable J2 from the connector CN661 on
main board. (See Fig.10)
(3) Disconnect the FFC cable J3 from the connector CN402
on
main board. (See Fig.11)
(4) Disconnect the FFC cable J4 from the connector CN681
on
main board. (See Fig.12)
(5) Remove main board from AMP board after disconnect the
connector J319
and CN601. (See Fig.13)
Fig.10
Fig.11
Fig.12
Fig.13
J1 J1
J2
J3
J4
J5
