If you need more detailed information, see page 6.
AM
EXT
GND
AM
EXT
GND
AM
LOOP
ANTENNA
Illustrations of the input/output terminals below are typical
examples.
When you connect other components, refer also to their
manuals since the terminal names actually printed on the rear
may vary.
Turn the power off to all components before connections.
To a wall outlet
Plug the AC power cord only after all connections are complete.
• If the wall outlet does not match the AC plug, use the supplied AC
plug adapter.
Disconnect the supplied FM antenna, and connect to an outdoor FM
antenna using a 75 Ω wire with coaxial type connector.
Vynile-covered wire (not supplied)
Extend it horizontally.
AM loop antenna
Keep it connected.

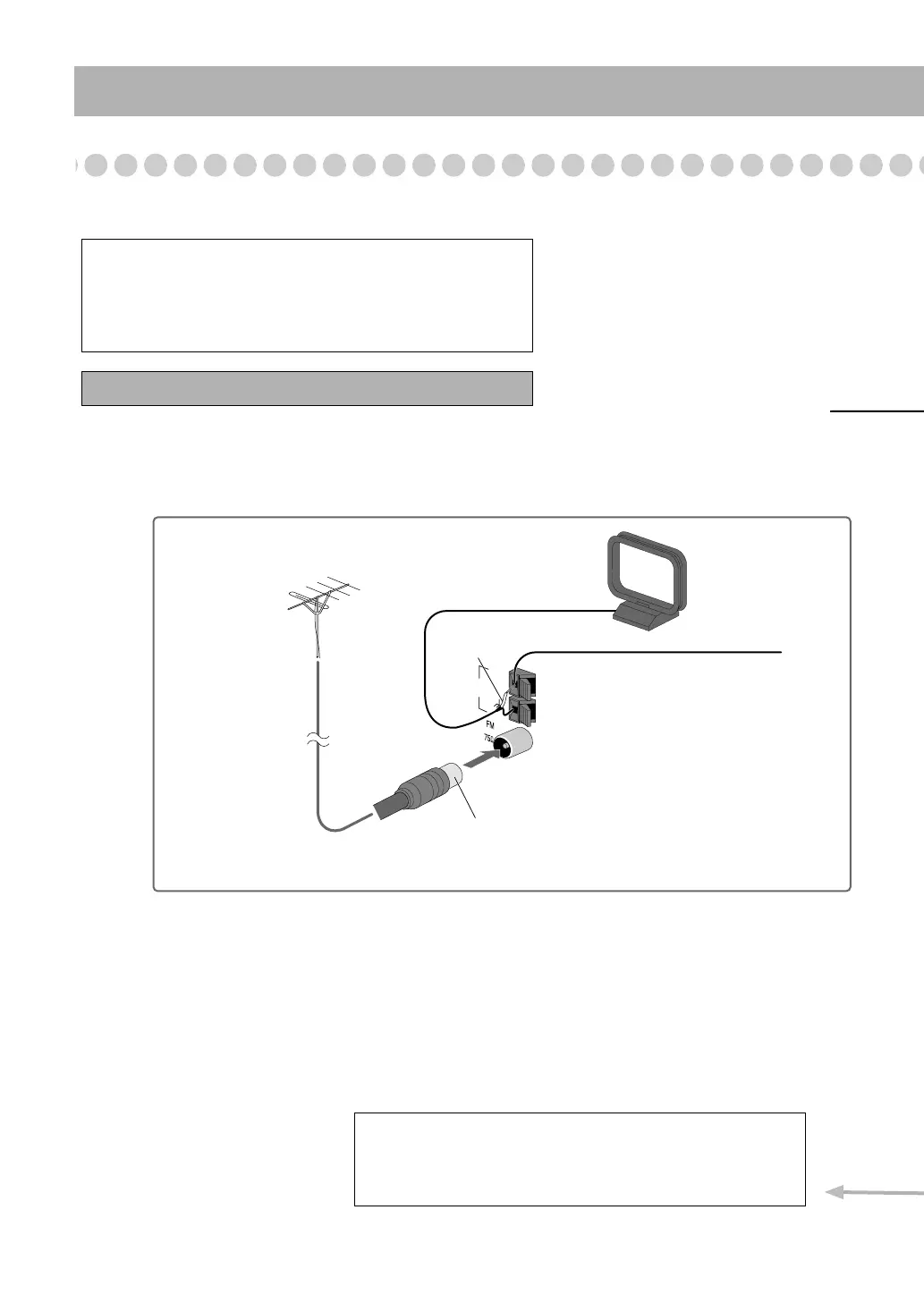

For better FM/AM reception
Outdoor FM
antenna
(not supplied)
White
To Next Page
