2-6
UX-G6/FS-G6

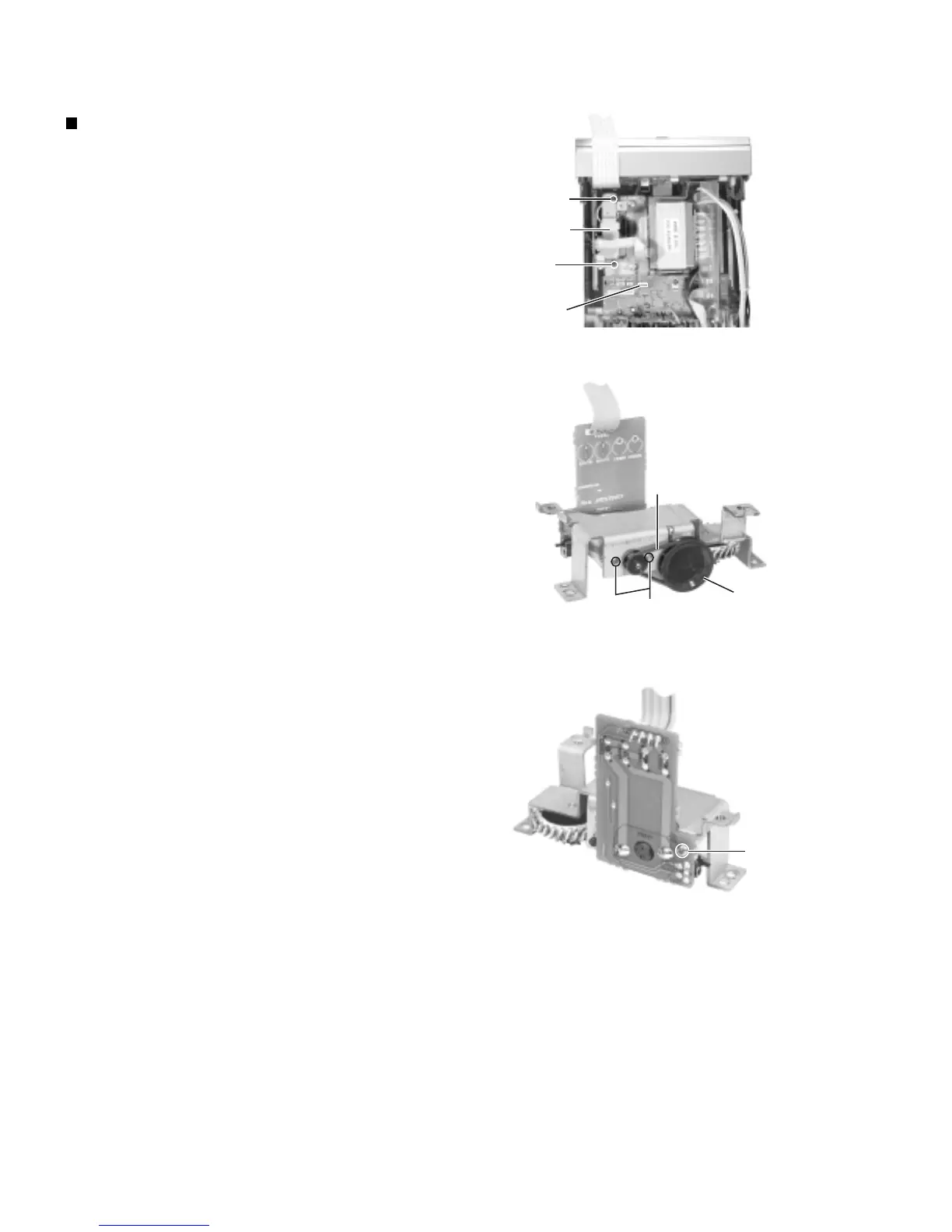

Removing the slide gear motor assembly
(See Fig.19 to 21)
• Prior to performing the following procedure,
remove the top cover and the regulator board .
1. Disconnect the harness from connector CN907
on the main board.
2. Remove the two screws O attaching the slide
gear motor assembly.
3. Remove the belt from the motor pulley.
4. Remove the two screws P and the screw Q
attaching the motor assembly.
Fig. 19
Fig. 20
Fig. 21
O
O
Slide gear motor
assembly
Main board
CN907
P
Motor pulley
Belt
Q
To Next Page
