1-8 (No.MB665<Rev.004>)

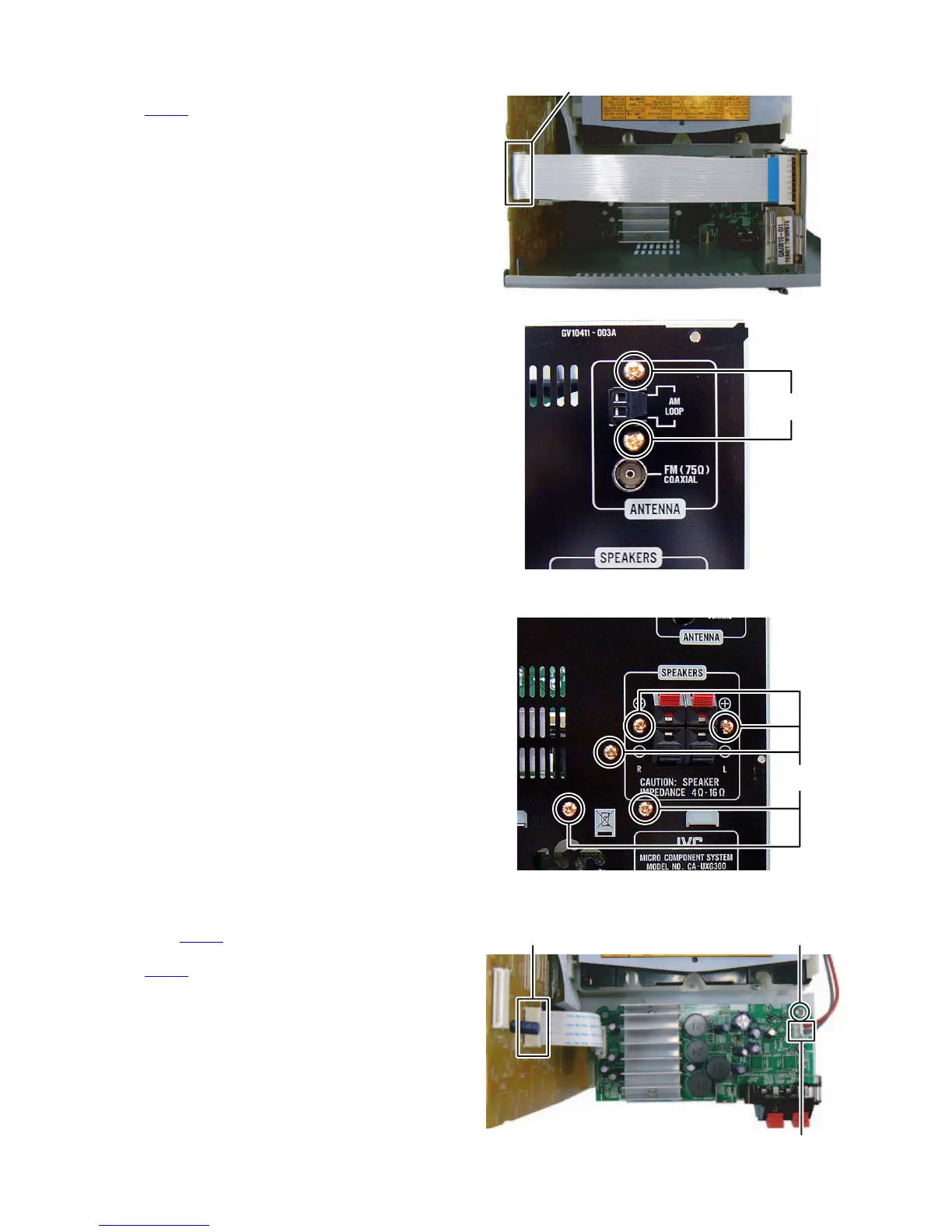

3.1.2 Removing the Tuner pack (See Fig.3, 4)
(1) Disconnect the card wire from Tuner pack connected to
connector CN306
of the Micom board. (See Fig.3)
(2) Remove the two screws C attaching the Tuner pack. (See
Fig.4)
Fig.3
Fig.4
3.1.3 Removing the Rear panel (See Fig.5)
(1) Remove the five screws D attaching the Rear panel.
Fig.5
3.1.4 Removing the Amp board (See Fig.6)
(1) Disconnect the connector wire from Power board connect-
ed to connector CN640
of the Amp board.
(2) Disconnect the card wire from Amp board connected to
connector CN520 of the Micom board.
(3) Remove the one screw E attaching the Amp board.
Fig.6
CN306
C
D
E
CN520
CN640
To Next Page
