(No.MB665<Rev.004>)1-9

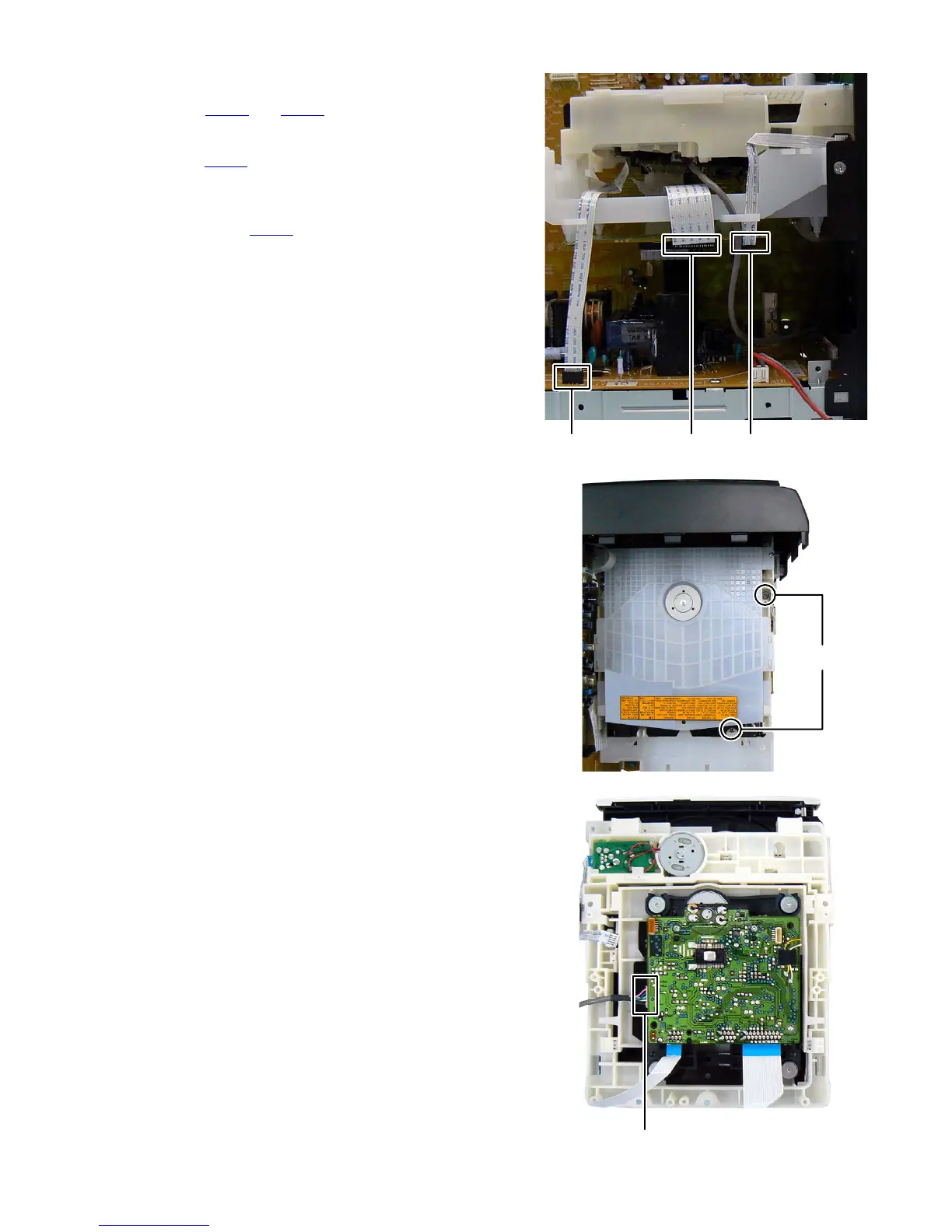

3.1.5 Removing the CD mechanism (See Fig.7 to 9)
(1) Disconnect the card wire from CD mechanism connected
to connector CN360
and CN362 of the Connection board.
(See Fig.7)
(2) Disconnect the card wire from CD mechanism connected
to connector CN205
of the Power board. (See Fig.7)
(3) Remove the two screws F attaching the CD mechanism.
(See Fig.8)
(4) Disconnect the connector wire from USB jack board con-
nected to connector CN802
of the CD servo control board.
(See Fig.9)
Fig.7
Fig.8
Fig.9
CN360CN362CN205
F
CN802
To Next Page
