1-10 (No.MB024)

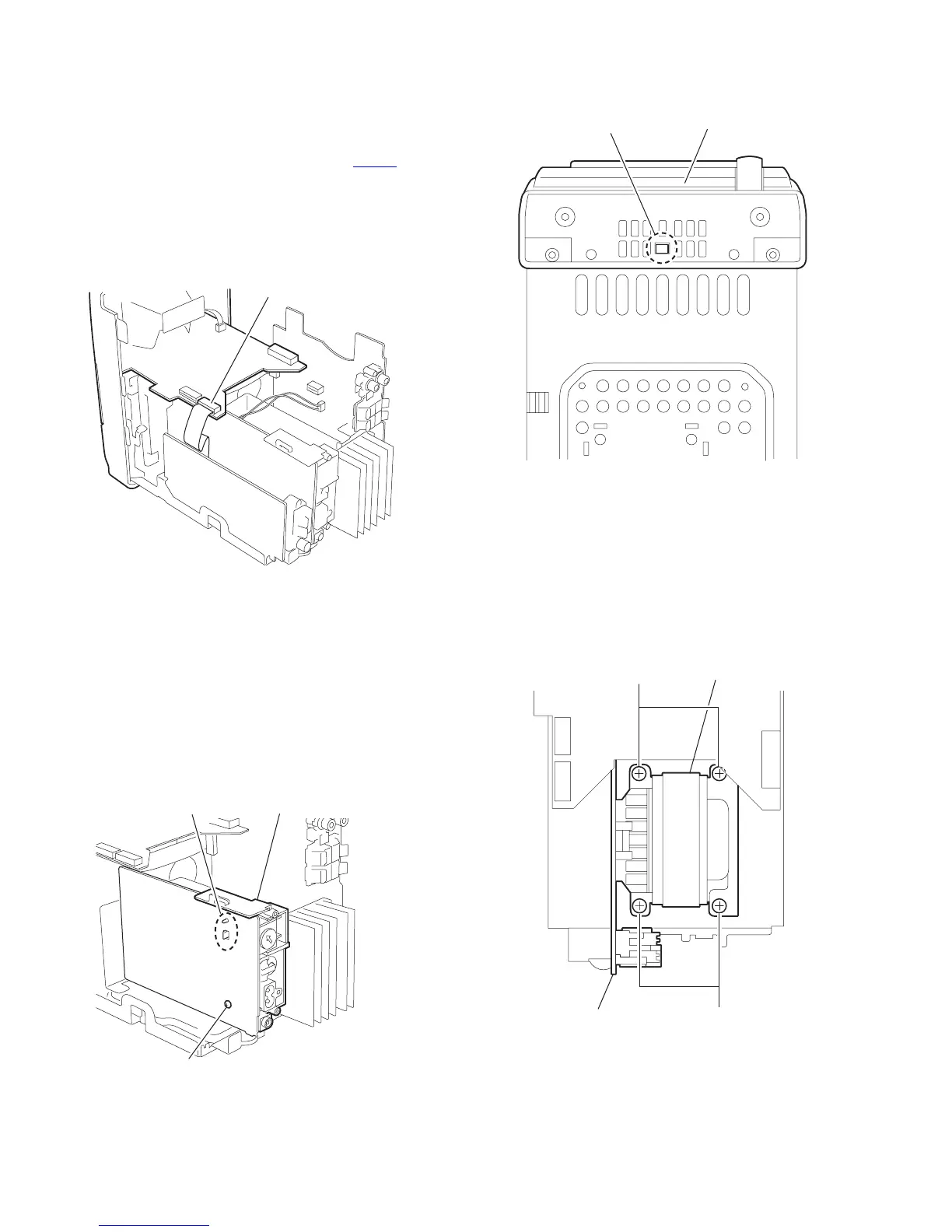

3.1.6 Removing the front panel assembly
(See Fig.12,13)
• Prior to performing the following procedure, remove the rear
panel the left and right side panels, the CD player assembly,
the power amplifier board.
(1) Disconnect the card wire from the connector CN714
on the
LCD system CPU board.
(2) Release the joint d on the bottom of the front panel as-
sembly using a screwdriver, and remove the front panel as-
sembly toward the front.
Fig.12
Fig.13
3.1.7 Remove the power transformer and power supply board
(See Fig.14,15)
• Prior to performing the following procedure, remove the rear
panel, the left and right side panels, the CD player assembly,
the power amplifier board and the tuner board.
(1) Remove the screw I attaching the jack holder and release
joint e , and then remove jack holder.
(2) Remove the four screws J attaching the power transformer
and power supply board.
Fig.14
Fig.15
LCD system CPU board
CN714
d
Front panel assembly
I
Jack holder
e
J
J
Power transformer
Power supply board
To Next Page
