1-12 (No.MB057)
3.1.8 Removing the power transformer assembly
(See Fig.12)
Prior to performing the following procedure, remove the metal
cover, the rear cover, the rear panel, the VCD mechanism
assembly and the main board.
(1) Disconnect the power cord from the connector J1000 on
the power transformer assembly.
(2) Remove the four screws P .

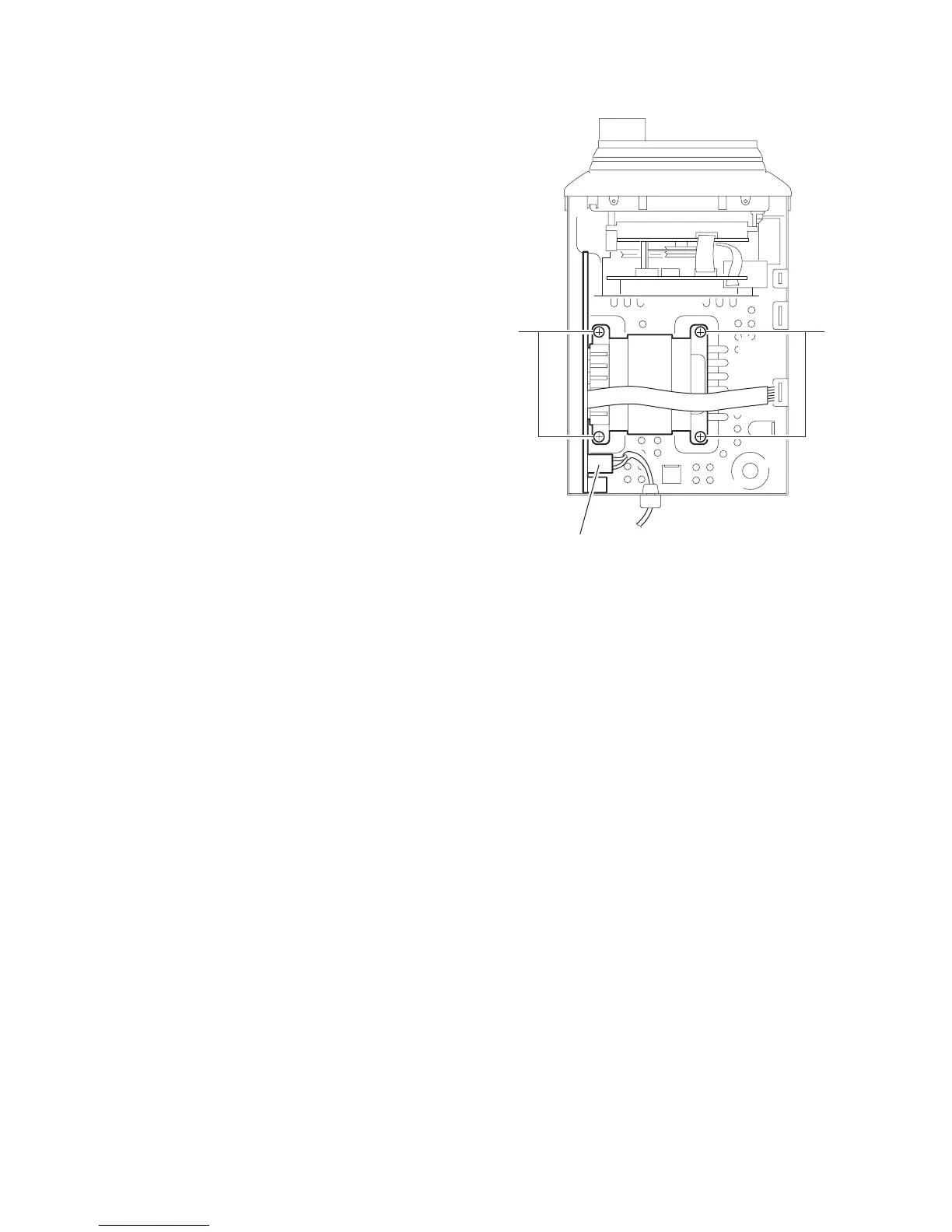

Fig.12
Power transformer assembly
J1000
PP
