UX-M5R
1-17
Fig.1 Head azimuth adjustment
CASSETTE MOTOR
Tape Speed Adj.
+
-

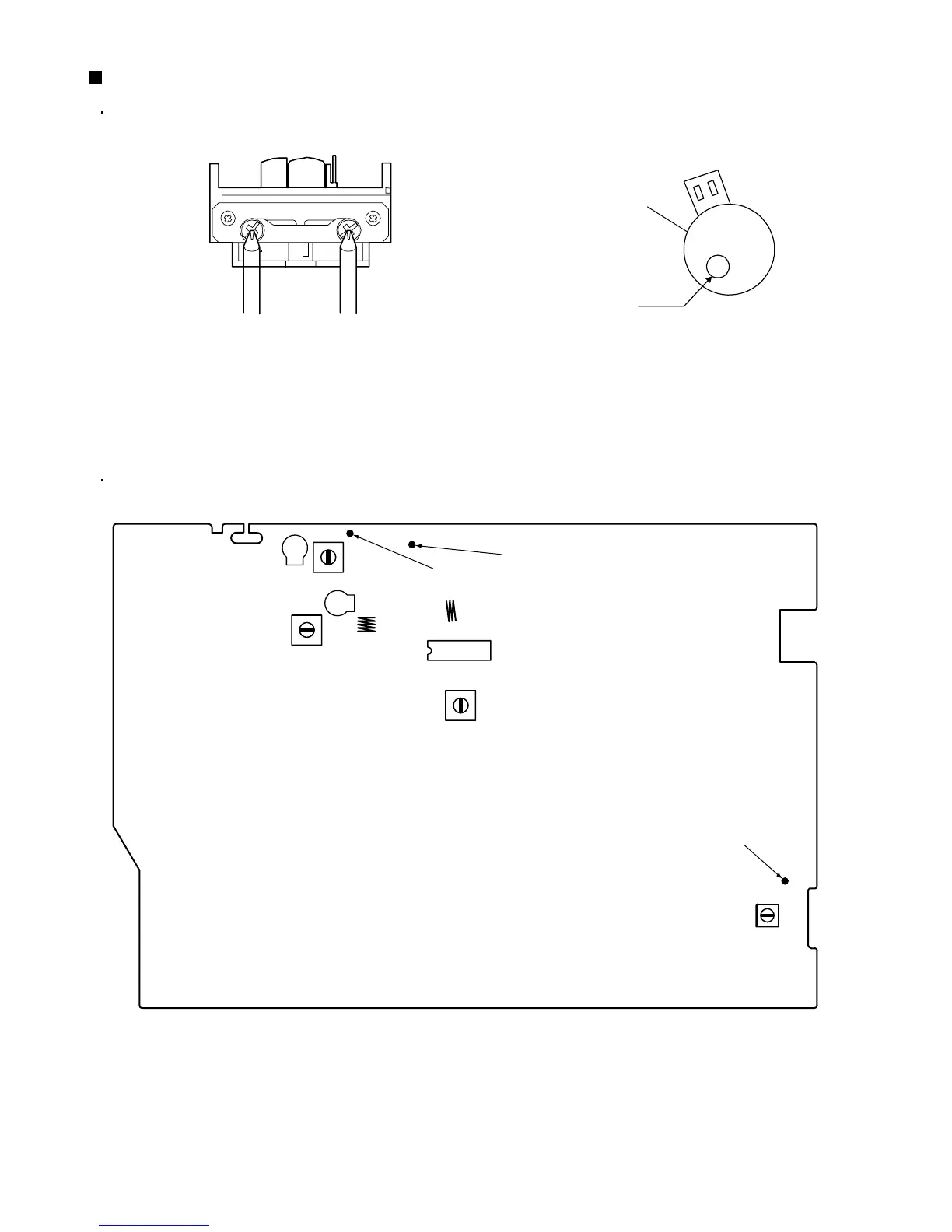

Location of adjusting parts
Cassette mechanism section
Fig.2
Main board (Forward side)
Fig.3
TC102
(FM RF)
L103
(FM RF)
L102
(AM RF)
P107
(AM VT)
P105
(FM VT)
L104
(FM OSC)
IC101
T101
(AM IF)
P201
(BIAS FREQUENCY)
L203
(BIAS FREQUENCY ADJ.)
L101
TC101
(AM RF)
Note: Measuring points (P105, P107 and P201) are located on the reverse side.
