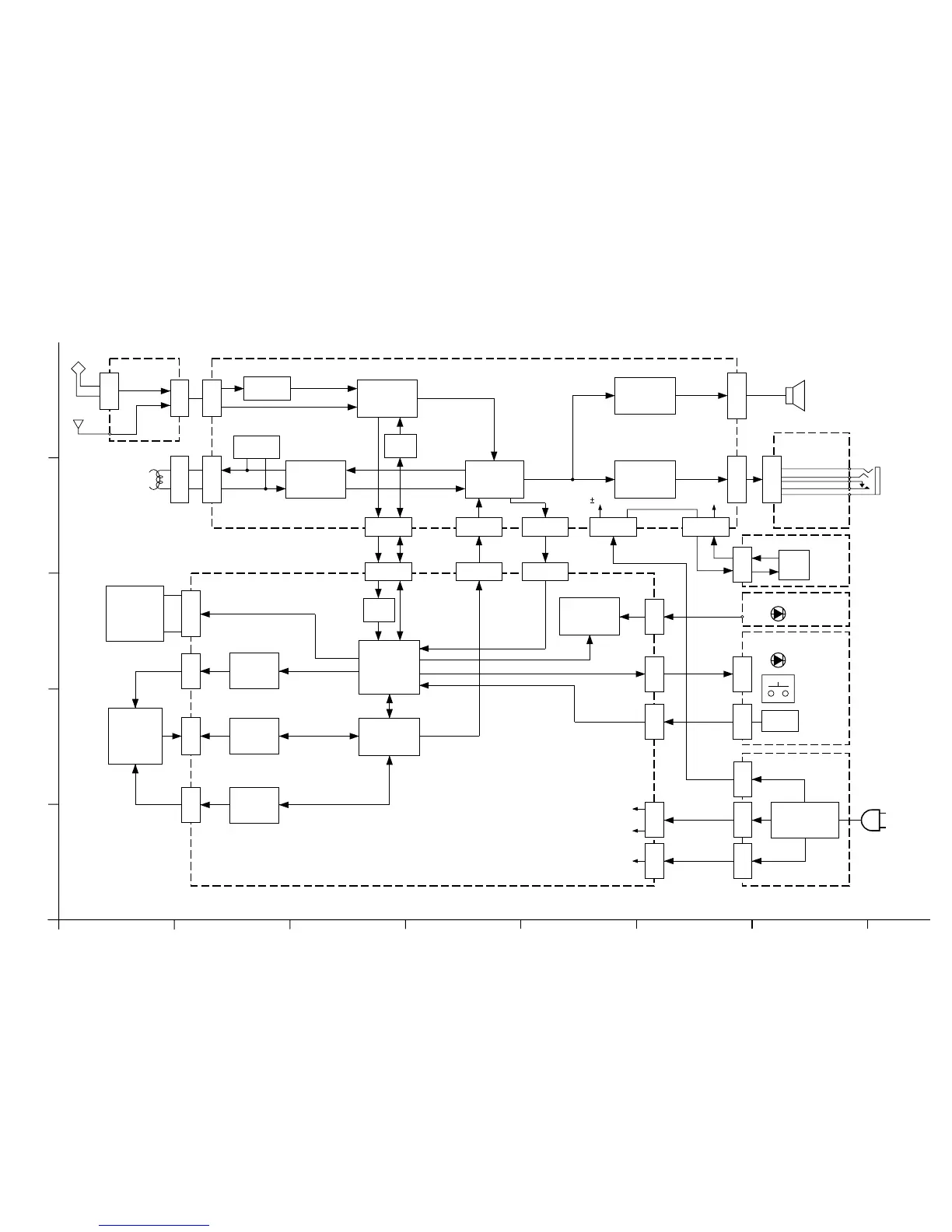

Block diagram
IC601
MCU
IC401,IC402
POWER
AMPLIFIER
IC101
TUNER
SECTION
IC301
SOURCE
SELECT
IC202
TAPE
SECTION
IC702
CD DOOR
DRIVE
CD
MECHANISM
&
CD PICK UP
IC701
CD DSP
CN201
CN702CN704
CON21
L101,L102
TC101
HEAD
SW
IC201
CN401
CN101
OPERATION
SWITCH
FM
R/R HEAD
Main board
CD & MCU section
IC403
EAR PHONE
AMPLIFIER
CN402
Earphone jack
CN403
JK401
Earphone board
Speaker
CASSETTE
MECHANISM
CN604
IC102
PLL
IC602
RDS
CN102 CN302
CD
TAPE REC
CN601 CN603
TAPE PB
TUNER
IC703
CD SERVO
CN703
IC704
CD RF
AMPLIFIER
CN301
CN602
LCD61
LCD DISPLAY
CN607CN608 CN605
Key board
CN802CN801
MODE LED
REMOTE
SENSOR
Back LED board
BACK LED
TR901
TR902
TRANSFORMER
CN903 CN901CN902 CN609CN701
CN303
14V
22V
CD +V
SB +V
PW SW
Power board
CN104
Antenna board
CN103
AM
CN304
Regulator board
CN403
IC302
+12V
REG.
12V
