3.1.13 Removing the DVD changer mechanism assembly (See Figs.23 to 26)
• Prior to performing the following procedures, remove the side
panels L/R, top cover and front panel assembly.
(1) From the bottom side of the main body, remove the two
screws T attaching the bracket (F) to the bottom chassis.
(See Fig.23)
Reference:
When attaching the bracket (F), align the projections k of
the bottom chassis in the holes of the bracket (F). (See
Fig.23)
(2) From the front side of the main body, remove the two
screws U attaching the bracket (F) to the shield case. (See
Fig.23)
Reference:
When attaching the bracket (F), align the projection m of
the shield case in the holes of the bracket (F). (See
Fig.23)
(3) From the top side of the main body, remove the two screws
V attaching the DVD changer mechanism assembly. (See
Fig.24)
Reference:
Align the projections n on the bottom chassis in the holes
of the DVD changer mechanism assembly before attach-
ing the screws V. (See Fig.24)
(4) From the right side of the main body, disconnect the card
wires from the connectors CN603
and CN604 on the con-
nect board. (See Fig.25)
(5) Take out the DVD changer mechanism assembly from the
main body in the direction of the arrow. (See Fig.25)
Note:
When take out the DVD changer mechanism assembly,
be careful not to damage the several parts on the con-
nect board.
(6) From the rear side of the DVD changer mechanism assem-
bly, remove the two screws W attaching the bracket (R).
(See Fig.26)

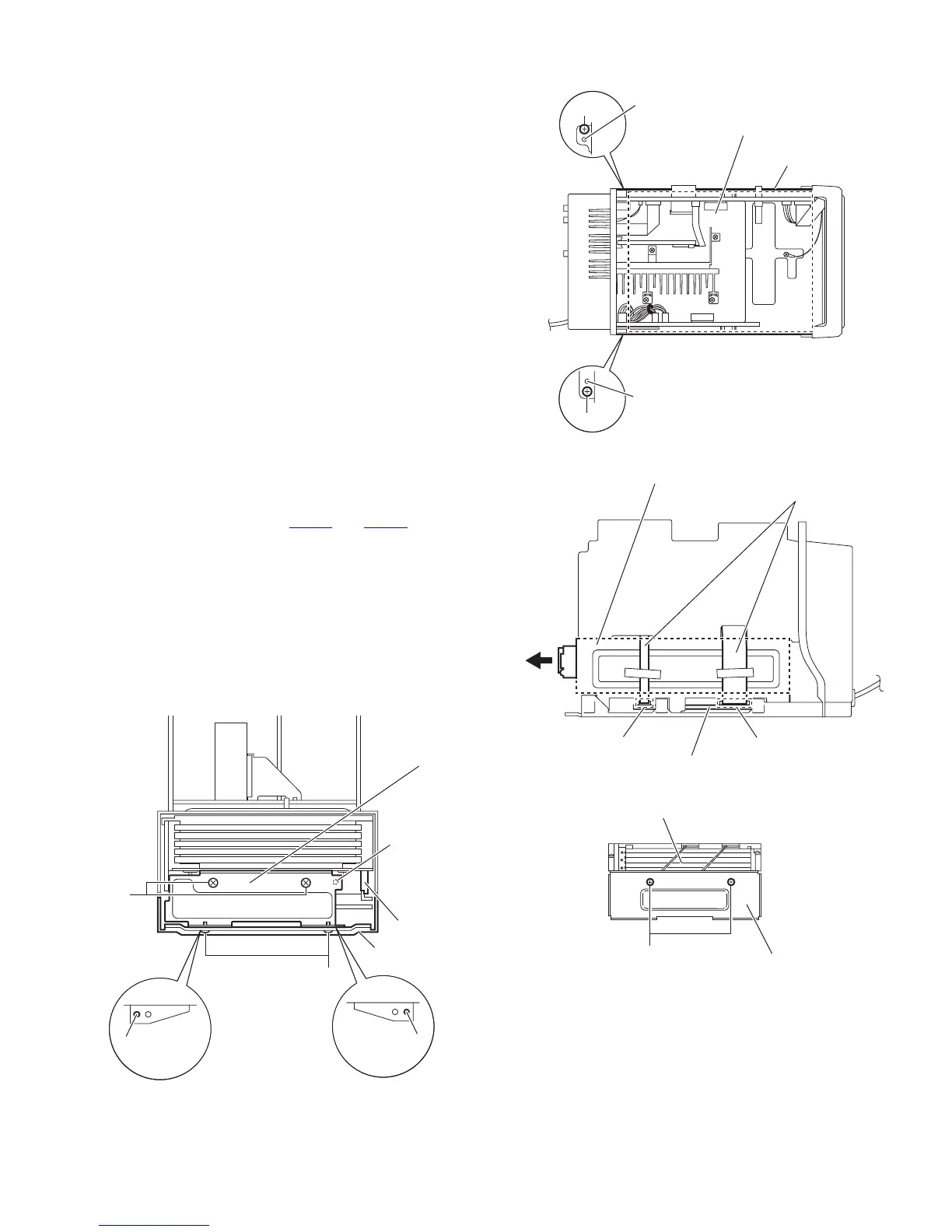

Fig.23
Fig.24
Fig.25
Fig.26
Projection k
Projection k
T
Projection m
Shield case
Bottom chassis
U
Bracket (F)
DVD changer mechanism assembly
Bottom chassis
V
Projection n
V
Projection n
DVD changer mechanism assembly
Card wires
CN603
Connect board
CN604
W
Bracket (R)
DVD changer mechanism assembly
