1-16 (No.MB230)

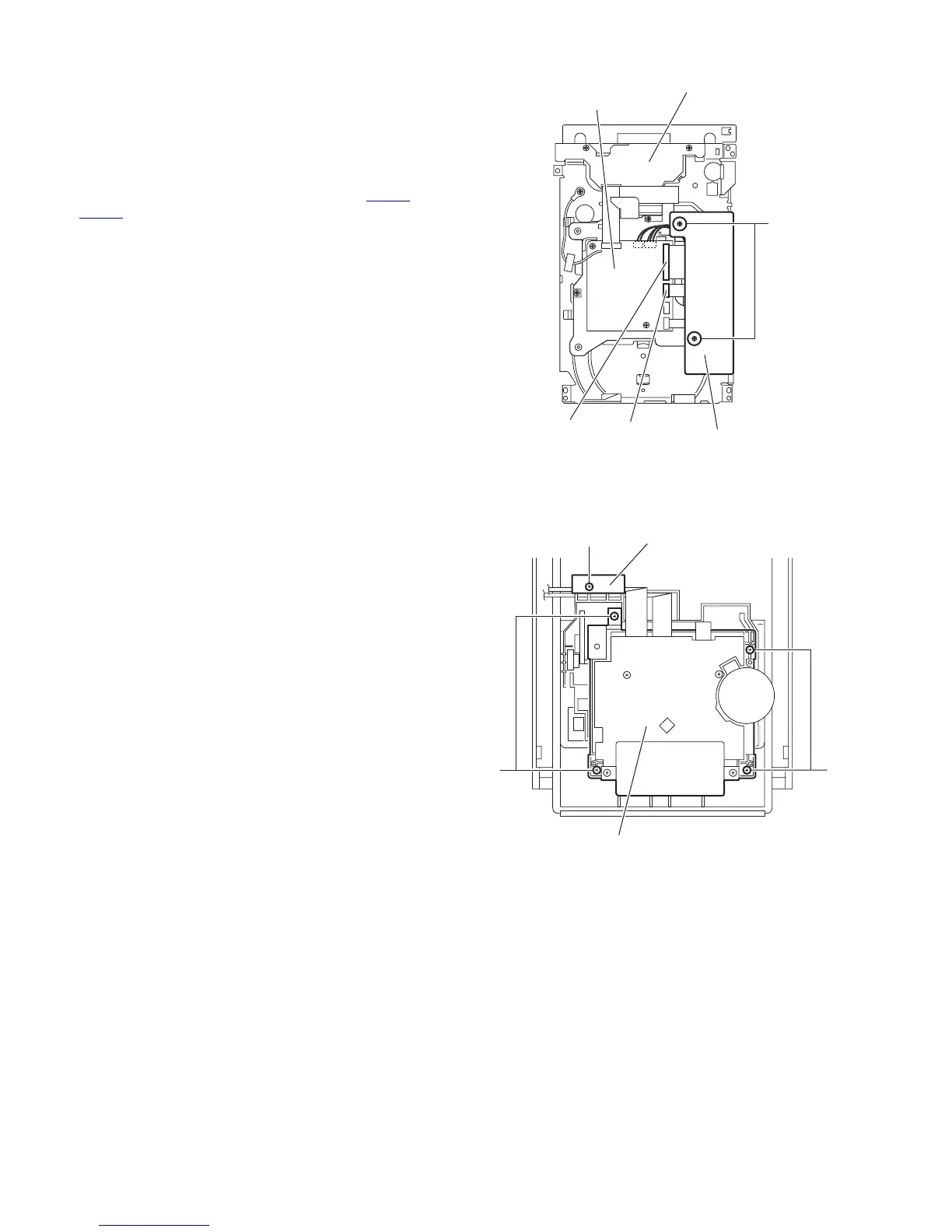

3.1.14 Removing the connector board (See Fig.27)
• Prior to performing the following procedures, remove the side
panels L/R, top cover, front panel assembly and DVD changer
mechanism assembly.
(1) From the bottom side of the DVD changer mechanism as-
sembly, remove the two screws X attaching the connector
board.
(2) Disconnect the card wire from the connector CN501
and
CN503
on the DVD servo board.
Fig.27
3.1.15 Removing the cassette mechanism assembly (See Fig.28)
• Prior to performing the following procedures, remove the side
panels L/R and top cover.
(1) From the reverse side of the top cover, remove the screws
Y attaching the dummy board.
(2) Take out dummy board.
(3) Remove the four screws Z attaching the cassette mecha-
nism assembly, and take out the cassette mechanism as-
sembly.
Reference:
After attaching the cassette mechanism assembly, fix the card
wires with the dummy board.
Fig.28
Connector board
CN503
CN501
DVD changer assembly
DVD servo board
X
Z
Cassette mechanism assembly
Dummy board
Z
Y
To Next Page
