(No.MB230)1-23
3.2.9 Removing the spindle motor board
(See Figs.15 and 16)
• Prior to performing the following procedures, remove the tray
assemblies and DVD traverse mechanism assembly.
(1) From the top side of the DVD traverse mechanism assem-
bly, remove the four screws M attaching the DVD traverse
mechanism assembly to the DVD traverse mechanism
base 3. (See Fig.15.)
(2) Remove the wires from the soldered section n on the spin-
dle motor board. (See Fig.15.)
(3) Remove the screw N attaching the spindle motor board.
(See Fig.15.)
(4) From the bottom side of the DVD traverse mechanism as-
sembly, remove the three screws P attaching the spindle
motor board. (See Fig.16.)
Reference:
When attaching the spindle motor board, let the card wire
through the hole p on the SF motor base. (See Fig.15.)

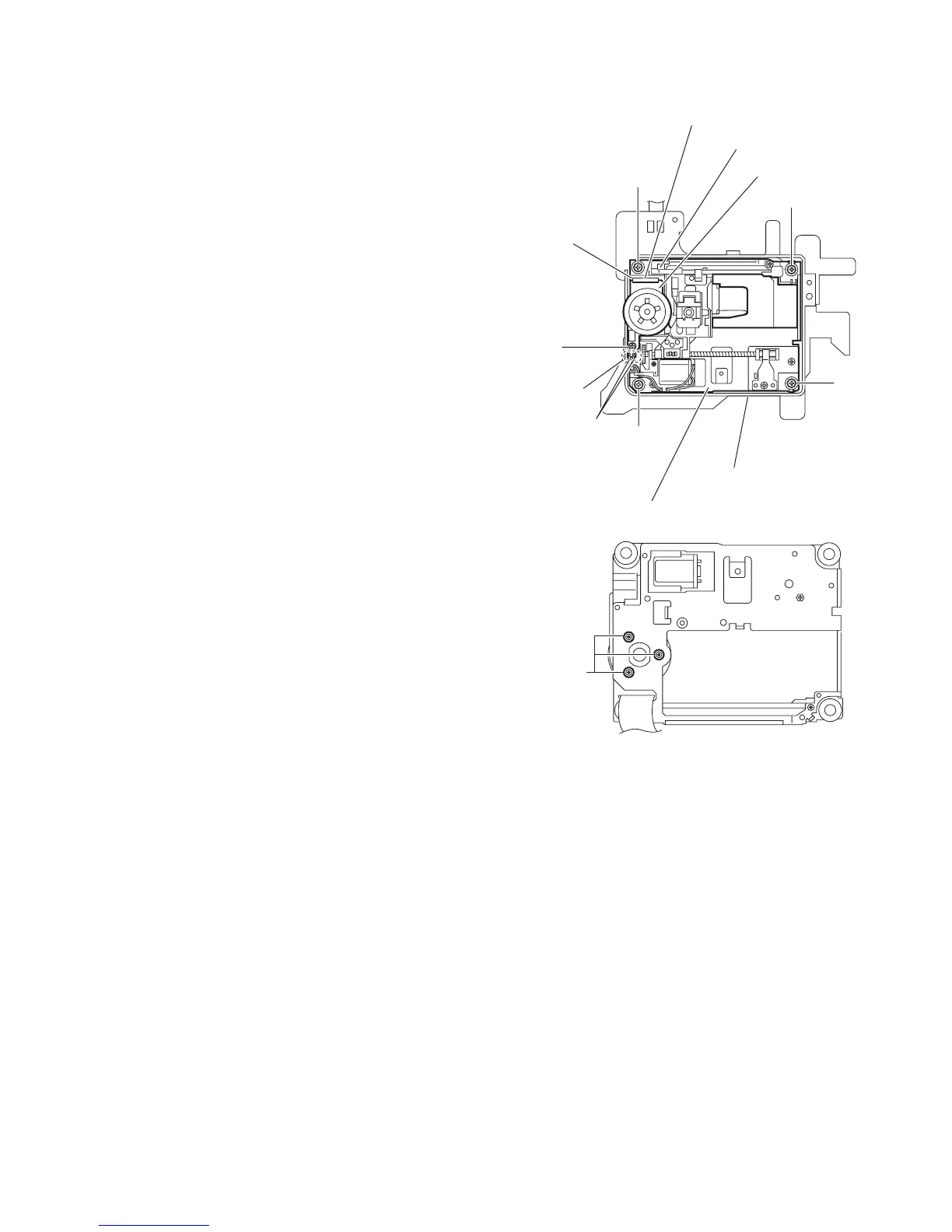

Fig.15
Fig.16
Spindle motor board
SF motor base
M
M
M
N
p
n
DVD traverse mechanism assembly
DVD traverse mechanism base
Card wire
Wires
M
P
