1-24 (No.MB230)
3.2.10 Removing the motor
(See Figs.17 and 18)
• Prior to performing the following procedures, remove the tray
assemblies, DVD traverse mechanism assembly, DVD pickup
and spindle motor board.
• Remove the wires of the motor as required.
(1) Remove the middle gear in the direction of the arrow. (See
Fig.17.)
(2) Remove the screw Q and screw R attaching the SF motor
base. (See Fig.17.)
(3) Remove the screw S attaching the motor to the SF motor
base. (See Fig.18.)
(4) Take out the motor from the motor base.
Reference:
After attaching the feed motor, let the wires through the sec-
tions q and r on the SF motor base. (See Fig.17.)

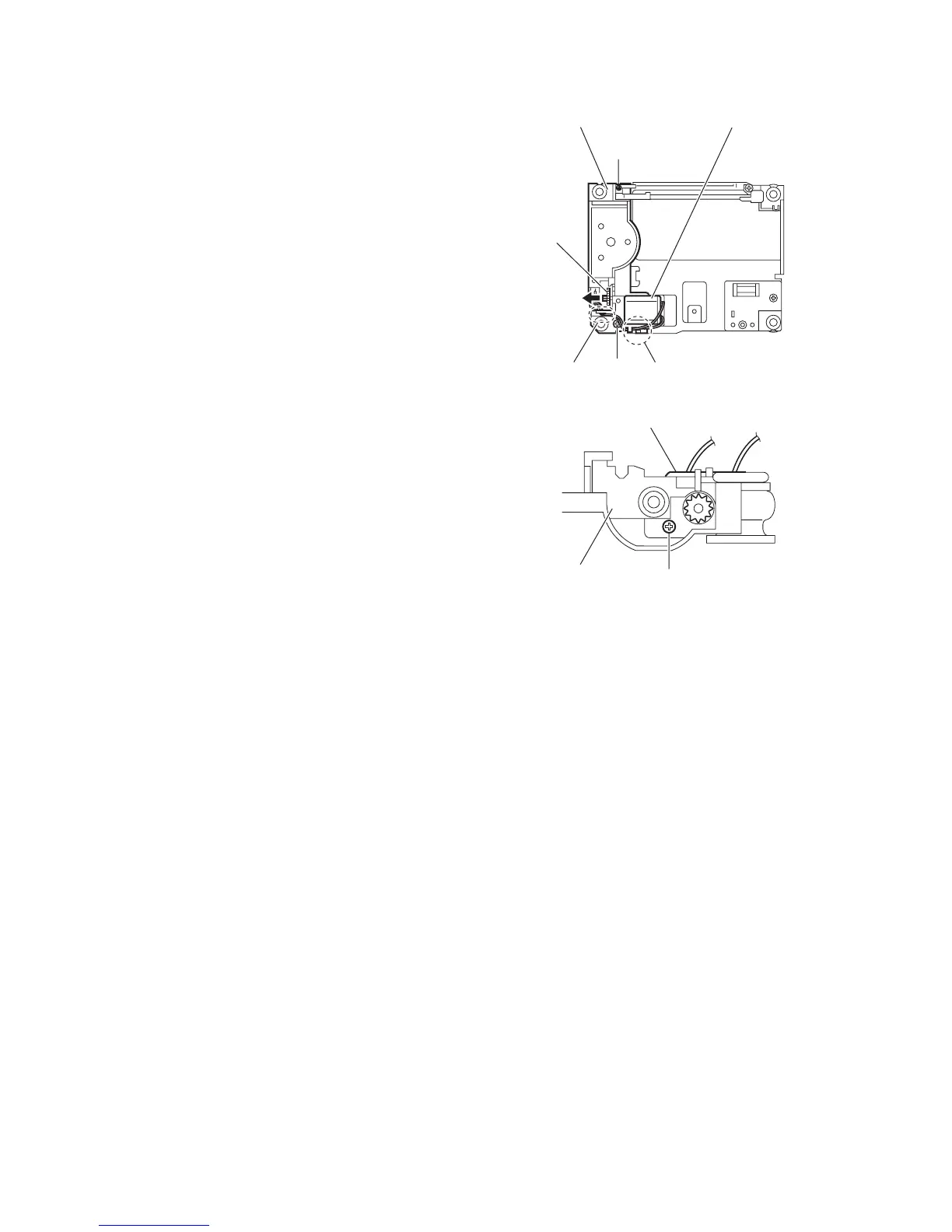

Fig.17
Fig.18
Motor
Middle
gear
R
Q
rq
SF motor base
Motor
SF motor base
S
To Next Page
