3.2.11 Removing the side (L) assembly and tray switch board
(See Figs.19 to 21)
• Prior to performing the following procedures, remove the tray
assemblies.
(1) From the topside of the DVD changer mechanism assem-
bly, remove the two screws T attaching the side (L). (See
Fig.19.)
(2) From the left side of the DVD changer mechanism assem-
bly, remove the spacer fixing the tray switch board and mo-
tor board. (See Fig.20.)
(3) Disconnect the connector CN3
on the tray switch board
from the motor board and detach the side (L) in an upward
direction. (See Fig.20.)
(4) Remove the screw U attaching the tray switch board to the
side (L). (See Fig.21.)
(5) Release the joint tab s of the side (L) in the direction of the
arrow 1 and release the joint tab t while removing the tray
switch board in the direction of the arrow 2. (See Fig.21.)

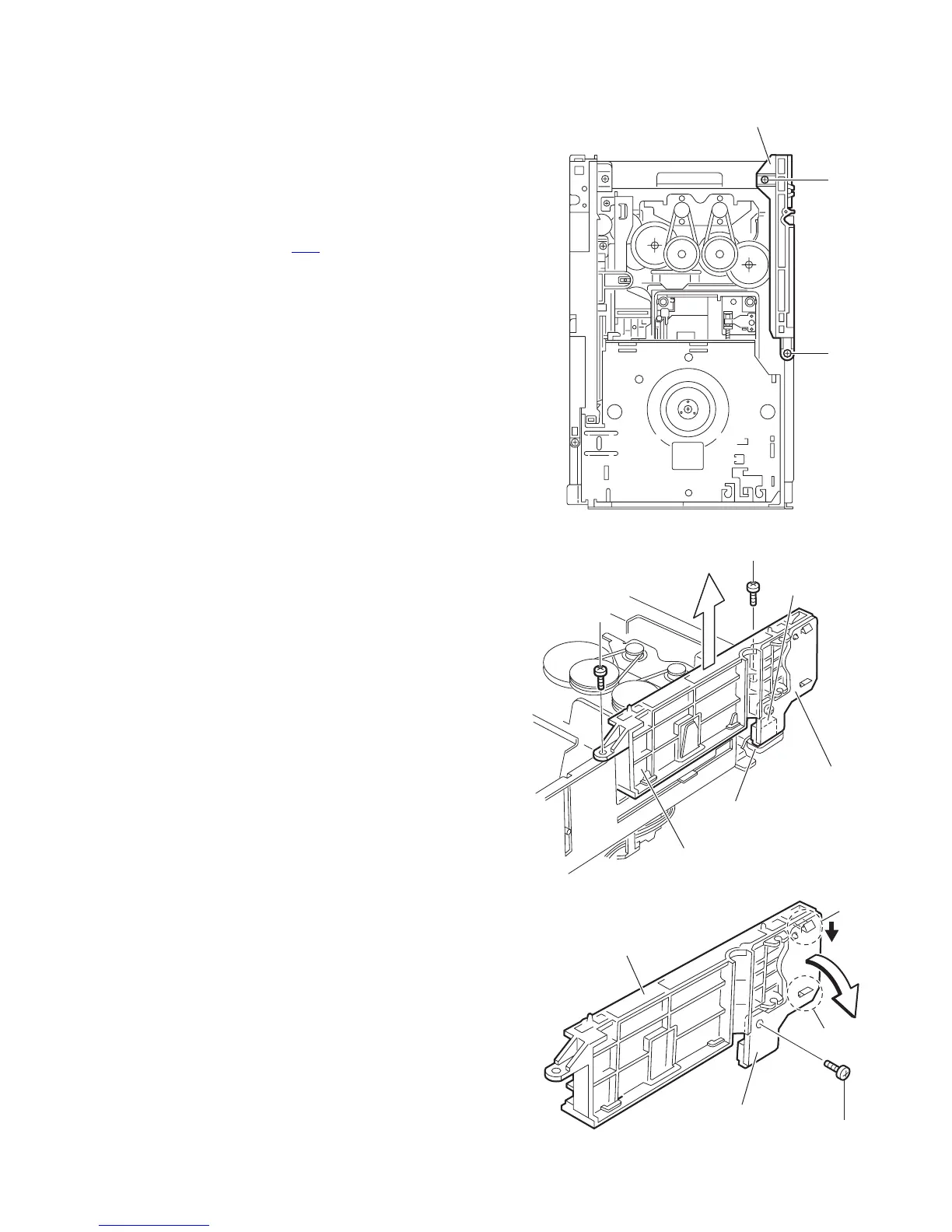

Fig.19
Fig.20
Fig.21
T
SIde(L)
T
CN3
Side(L)
T
T
Motor board
Tray switch board
s
t
U
Tray switch board
Side(L)
1
2
To Next Page
