UX-V10GN
VR201
R ch BIAS ADJ
VR101
L ch BIAS ADJ
L301
MOTOR SPEED
VR301

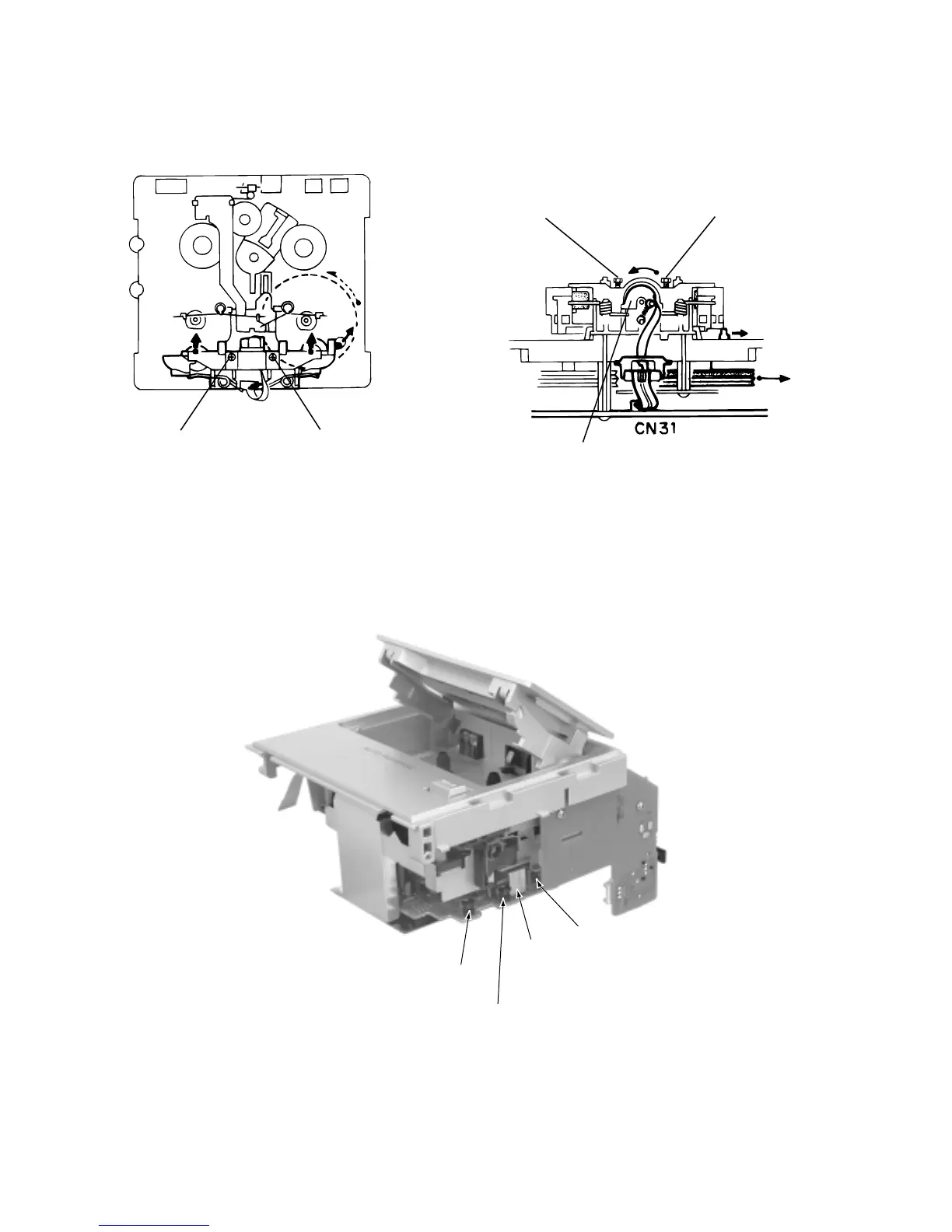

<<Arrangement of Adjusting Position>>
Cassette mechanism section
Cassette mechanism section (Back side)
Front panel assembly section
Head azimuth
adjusting screw
(Reverse side)
Head azimuth
adjusting screw
(Forward side)
Playback/Recording &
eraser head
Head azimuth
adjusting screw
(Forward side)
Head azimuth
adjusting screw
(Reverse side)
