Remove the two screws K attaching the Opt.Dig.out
board on the side of the cassette mechanism
assembly.
1.
<Cassette mechanism assembly>
Removing the Opt.Dig.out board
(See Fig.16)
Prior to performing the following procedure, remove
the Opt.Dig.out board.
Press the eject button on the front side of the
cassette mechanism assembly to open the cassette
door.
Remove the four screws L attaching the cassette
mechanism assembly on the back of the assembly.
1.
2.
Removing the cassette mechanism
assembly (See Fig.16 and 17)
Prior to performing the following procedure, remove
the rear cover, the side panels and the cassette
mechanism assembly.

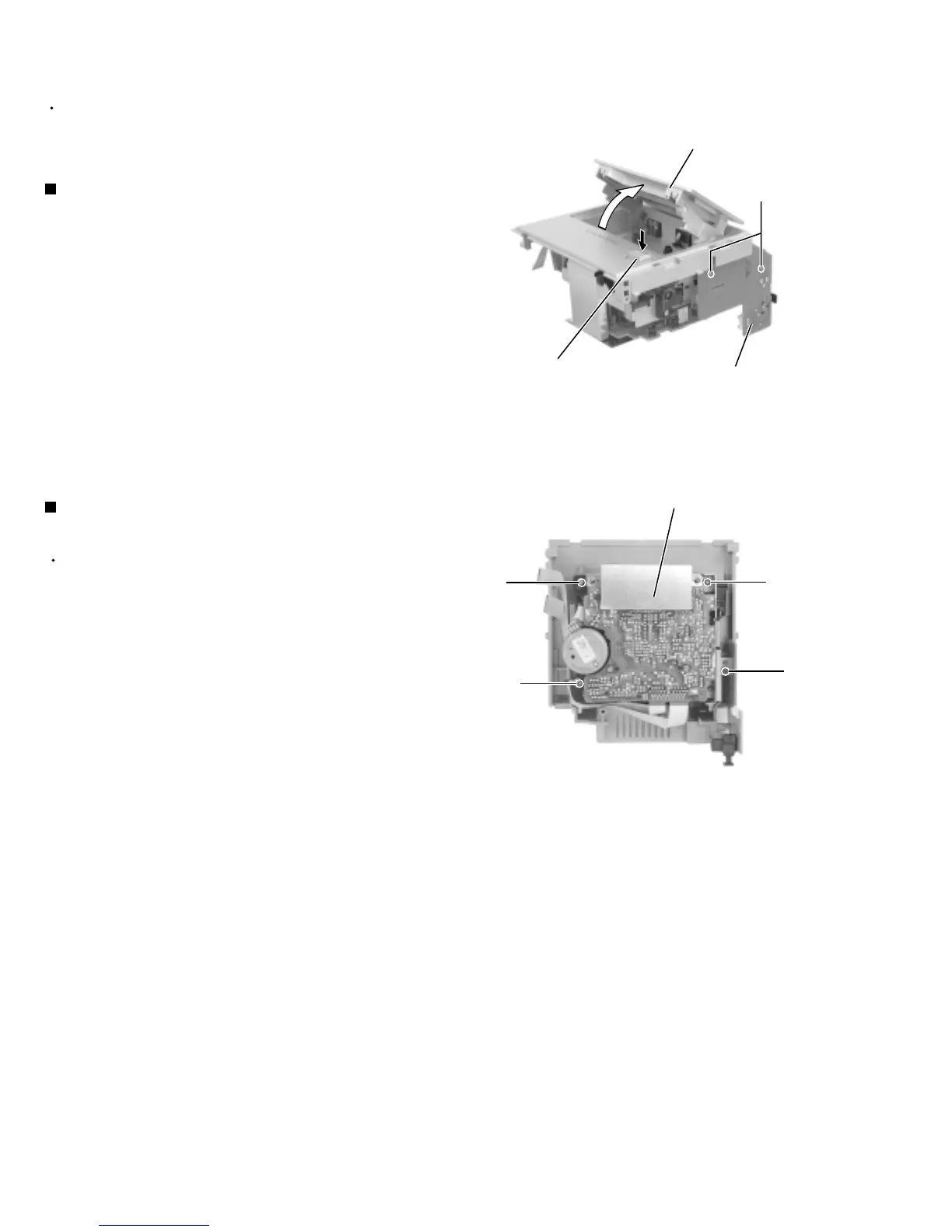

Fig.16
Fig.17
Opt, Dig.out board
Cassette door
K
Eject button
Cassette mechanism
L
L
L
L
