Caution: Proper Ventilation

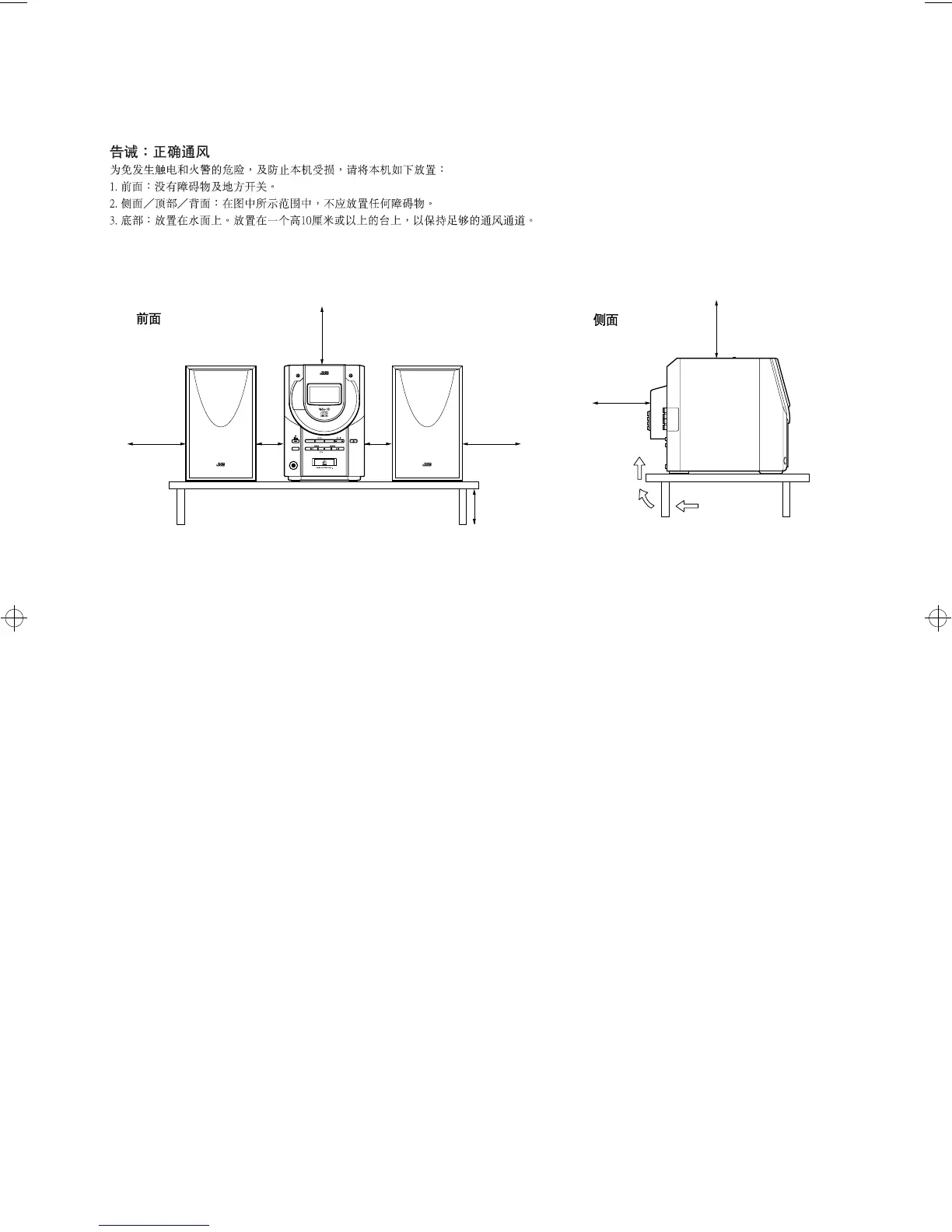

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:
1 Front: No obstructions and open spacing.
2 Sides/ Top/ Back: No obstructions should be placed in the areas shown by the dimensions below.
3 Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or more.
15 cm
15 cm
UX-V6V
UX-V6V
10 cm
15 cm
15 cm
15 cm
1 cm 1 cm
TAPE
MICRO COMPONENT SYSTEM
TUNER CD
CD
OPEN/CLOSE
PHONES
MD/AUX
BAND
STANDBY/ON
DOWN UPMULTI CONTROL
RETURN
SELECT
NEXTPREV
UX-V6V
Front view
Side view
