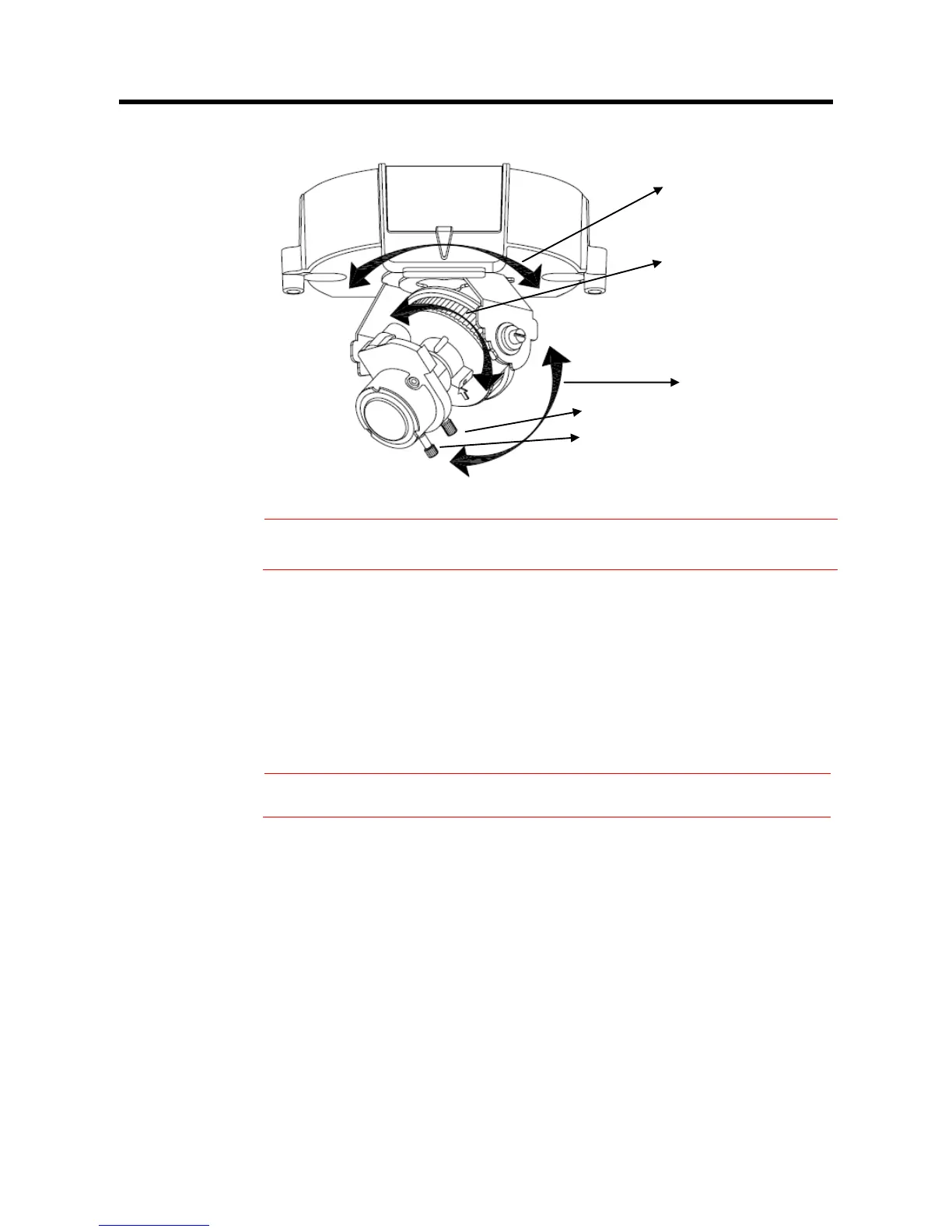

Tilt Adjustment (C) After loosening the thumbnuts, position the camera as desired, then
finger –tighten the thumbnuts to set the position.
Do not turn the lens more than 360° as this may cause internal cables to disconnect
or break.
Adjusting Zoom and Focus
Loosen the zoom lever (D) / locking screw by turning it counter-clockwise.
Rotate the zoom ring to achieve the desired picture.
Loosen the focus lever (E) / locking screw by turning it counter-clockwise.
Rotate the focus ring to adjust the focus.
If re-adjustment is necessary, repeat the steps above.
Retighten the zoom lever (D) / locking screw and the focus lever (E) / locking screw.
Retighten the locking screws to prevent loss of adjustment.
Mounting the Camera
Place the mounting template (supplied) on the mounting surface and mark the holes.
Drill two holes, and then insert the screw anchors into the holes.
Take off the camera housing.
Connect the Safety Wire (Fall Prevention Wire, not supplied) to the ceiling.
Secure the camera bottom case (1) to the wall/ceiling with the TP4 x 15 mm tapping screws,
supplied.
Insert the power cable, LAN cable and Audio cables.
Adjust the view angle (zoom, focus, and Horizontal Rotation).
